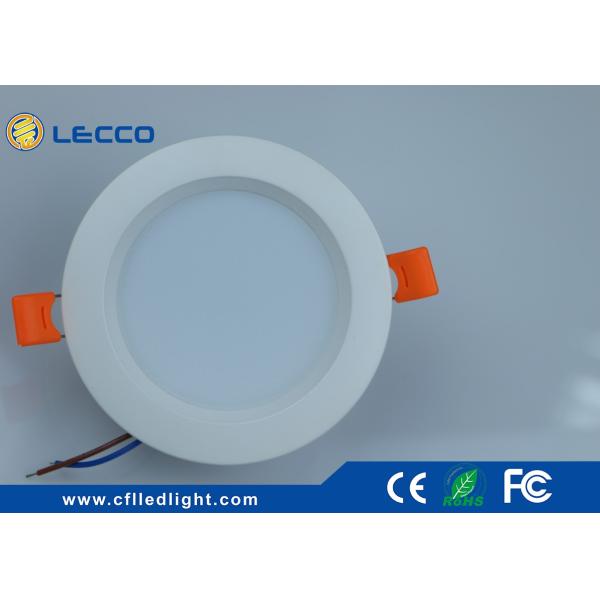

LED Recessed Downlight 9Watt SMD 5730 CRI > 80 Integrated 900LM 6400K Integrated Driver

Lamp parameters

Type: LED Downlight SMD 9W Integrated

Optical Parameter
Color Rendering Index: > 80 Ra
SDCM: < 3
Color Temparature: 6400K
Luminous Efficency: > 100 lm / w
Light Transmittance: > 90%
UGR: < 19
Luminous Decay: < 5% at 3000hrs , < 9% at 6000hrs
LED Chip Brand: Epistar
Junction Temperature: 65 ℃
Chip Quantity: 18 pcs SMD 5730

Structural Parameters
Size: W 120 * H 62 mm
Installation: Recessed
Materials: Die Casting Aluminum + PC
IP Rating: IP 20
Thermal Tranmissivity: 160 W / ( m.K )
The Value of Permissible Voltage: < 5000V
Beam Angle: 120 °
Operating Temp: -20℃ to +40℃
Life Time: > 30 000H
Energy Efficiency: Grade A
Certification: CE / RoHS / FCC
Lumen: > 900 LM

Electronic Parameter
Power: 9W
Power Factor: > 0.9
Isolated Power Supply: Yes
Input Voltage: 85V - 265V
Current: Constact Current with IC
Dirver Brand: Mosopower , Wellpower , Meanwell , Lifud

Quick Details

Description

1 . SDCM < 5 ,CRI > 80 Ra ,Luminous efficiency > 100 .
2 . The average lifetime of our LED bulb is at least 30 000h , we garantee the quality for 3 years .
3 . Living up to the IEC62031 : 2008 & 62560 standard .
4 . Saving 80% electricity compared to traditional grille lamp with fluorescent tube .
5 . Can start under the condition of - 30 ℃ and low voltage .
6 . No flicker , No noise , No electromagnetic interference ( EMI ) .
7 . Using spray - painted aluminum frame , very simple and fashionable .
8 . 18 pcs SMD 5730 Chip , Epistar .
9 . Using pure die casting aluminum , haveing excellent heat conduction ,160 W / ( m.K ) .
10 . Using constant current driver with IC to make sure the led chip life .
11 . We choose very good driver supplier like Meanwell,mosopower to have constact current output to the LED chip , which is also safe .

Frequently Asked Questions ( FAQ )

1 . About price
All is FOB prices , and If you don’t provide the quantity and mention if need to OEM your brand , we qoute the wholesale prices for our brand .
2 . About the pcking
Color box and cartons is witout design,and can use numper sticker with your logo and brand .
3 . About your brand and color box
We can OEM your brand and printing the color box with your logo , but need the MOQ 500 pcs .
4 . About payment
1 ) Normall payment is 30% T / T deposit in advance,the 70% balance paid before shipment .
2 ) TT paid against BL or L / C at sight also acceptable .


Application

Widely used in home & commercial Lighting , applying in office , Hallway , Hotel , room , shop , ect .
