Specifications
Brand Name :
LECCO
Model Number :
LTB-8T9W-5
Certification :
CE RoHS FCC
Place of Origin :
CHINA
MOQ :
50 pcs
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
5 000 pcs per month
Delivery Time :
15 days
Packaging Details :
25 PCS / CTN , Meas : 65x33x26CM , G.W. : 6.3 KGS N.W. : 3.9 KGS
Luminous Efficiency :
> 80 LM / W
Power :
9W
LED Chip :
SMD 2835 , Epistar
Material :
Clear PC + ALuminum
Lumen :
750LM
Voltage :
85 - 265V
SDCM :
< 3
Life time :
30 000H
Description

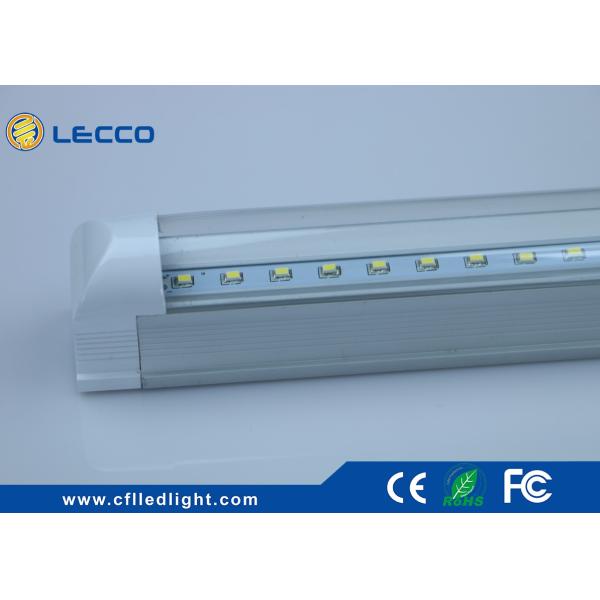

LED Tube T8 9W Fixture Integrated Clear PC Cover 6000K 600mm Long PF > 0.9 SMD 2835

Description

1 . We choose very good driver supplier like Meanwell,mosopower to have constact current output to the LED chip , which is also safe .
2 . Easy to apply , can change traditional incandescent bulbs and CFL bulbs directly , saving more energy and having longer life .
3 . All products are output strictly under ISO 9001 Quality Management System and CE satisfied .
4 . Voltage : all of our LED products supply wide range voltage input .


Quick Details

Model No.:LTB-8T9W-5 Certificate: CE RoHS FCC
Item Type:T8 LED Tube Power: 9W
Place of origin:Lin'an Input Voltage: 85 - 265V
Brand name: LECCO Lumen : 80 LM / W
Warranty: 2 year Working Temp.: :- 40 - 60 ℃

Lamp parameters

Type T8 LED Tube 9W Fixture Integrated Clear Cover
Optical Parameter Color Rendering Index > 80 Ra
SDCM < 3
Color Temparature 6400K
Luminous Efficency > 80 lm / w
Light Transmittance: > 90%
Luminous Decay < 5% at 3000hrs , < 9% at 6000hrs
LED Chip Brand Epistar
Junction Temperature 65 ℃
Chip Quantity 48 pcs SMD 2835 , 0.2W
Electronic Parameter Power 9W
Power Factor > 0.9
Isolated Power Supply Yes
Input Voltage 85V - 265V
Current Constact Current with IC
Dirver Brand Mosopower , Wellpower , Meanwell , Lifud
Structural Parameters Length 600mm
Installation Ceiling Mounted / Suspending
Materials PC + Aluminum
IP Rating IP 20
Thermal Tranmissivity 160 W / ( m.K )
The Value of Permissible Voltage < 5000V
Beam Angle 200 °
Operating Temp. -20℃ to +40℃
Life Time > 30 000H
Energy Efficiency Grade A
Certification CE / RoHS / FCC
Lumen > 750 LM


Quality Control ( QC )

1 . Strict raw materials inspection .
2 . Technical parameter adjustment :
1 ) Technicians will tune the technical parameters of each items to make sure the Wattage , P.F.living up to the requirement of customer
2 ) Destructive test , light it in the oven to be under the conditions of high temperature and high voltage
3 ) Turn on off test , to make sure the life time of the lamp
4 ) Start test in low temperature and low voltage ( light in the fridge )
3 . In the mass production , our QC will take selective examination on every step , such as Plug-in , Wave soldering , PCB test , Tube glue , Assembly , Print , Ageing , Packing .
4 . we are testing every lamp before packed in the cartons .

Trade terms


1 . Payment term : T/T , 30% deposits in advance , 70% balance before shipment .
2 . Samples can be provided for free , but the express fee need to be payed for the first time , and can be returned after placing the first order .
3 . Shipping freight are quoted under your requests .
4 . Shipping port : Shanghai / Ningbo .
5 . If not mentioned , all of our price is FOB price , and also can be CFR or CIF

Application

Widely used in home & commercial Lighting , always using together with the downlight fixtures , applying in office , Hallway , Hotel , room , shop , ect .
