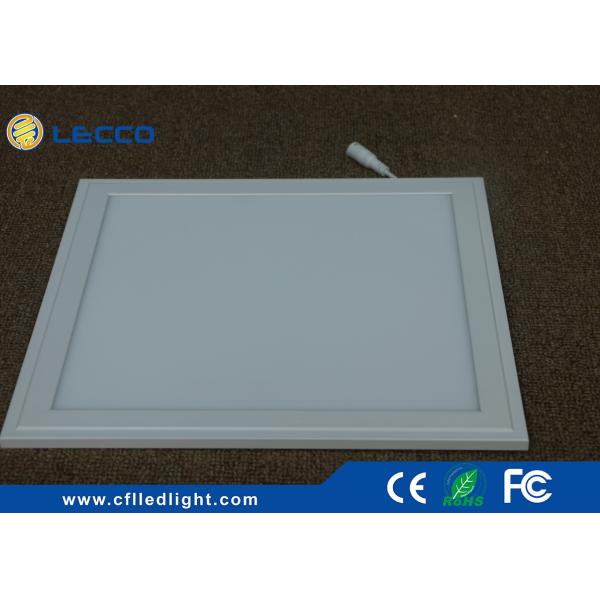

4900LM UGR < 19 LED Panel Light Square 595 * 595 * 10 MM 48W Aluminum + PMMA 80 LM / W CRI > 80

Quick Details

Model No. : LPL-6060S48W-1
Certificate : CE RoHS FCC
Item Type : LED Panel Light
Power : 48W
Place of origin : Jiaxing City I
nput Voltage : 85 - 265V
Brand name : LECCO
Lumen : 80 LM / W
Warranty : 3 year
Working Temp. : - 40 - 60 ℃

Lamp parameters

Description

1 . Using spray - painted aluminum frame , very simple and fashionable .

2 . UGR < 19 ,CRI > 80 Ra ,Luminous efficiency > 80 .
3 . The average lifetime of our LED bulb is at least 30 000h , we garantee the quality for 3 years .
4 . Living up to the IEC62031 : 2008 & 62560 standard .
5 . Saving 80% electricity compared to traditional grille lamp with fluorescent tube .
6 . Can start under the condition of - 30 ℃ and low voltage .
7 . No flicker , No noise , No electromagnetic interference ( EMI ) .
8 . 240 pcs SMD 2835 Chip 0.2W ,Epistar / Bridgelux .
9 . Using pure 6063 Aluminum cover , haveing excellent heat conduction ,160 W / ( m.K ) .
10 . Using imported acrylic ( PMMA ) as light guide plate , more efficient to guide the light .

11 . For the pack ,using single corrugated box .

12 . Using constant current driver with IC to make sure the led chip life .

13 . We choose very good driver supplier like Meanwell,mosopower to have constact current output to the LED chip , which is also safe .
14 . Easy to apply , can be recessed in the stand size ceiling .
15 . All products are output strictly under ISO 9001 Quality Management System and CE satisfied .
16 . Voltage : all of our LED products supply wide range voltage input 85 - 265V .

Quality Control ( QC )

1 . Strict raw materials inspection .
2 . Technical parameter adjustment :
1 ) Technicians will tune the technical parameters of each items to make sure the Wattage , P.F.living up to the requirement of customer
2 ) Destructive test , light it in the oven to be under the conditions of high temperature and high voltage
3 ) Turn on off test , to make sure the life time of the lamp
4 ) Start test in low temperature and low voltage ( light in the fridge )
3 . In the mass production , our QC will take selective examination on every step , such as Plug-in , Wave soldering , PCB test , Tube glue , Assembly , Print , Ageing , Packing .
4 . we are testing every lamp before packed in the cartons .
5 . In the warehouse , our QCs will take sampling inspection before load the container , if not qualified with the AQL , we will rework .
6 . After laoding the container , we will trace the life time of ech order , we will pick 10 pcs of each item to light in the ageing room till the lamp die , so we can trace down the real life time of each order .

Frequently Asked Questions ( FAQ )

1 . About price

All is FOB prices , and If you don’t provide the quantity and mention if need to OEM your brand , we qoute the wholesale prices for our brand .

2 . About samples

we can provide samples for you to check and test for fee , but need you to pay the express fee .

3 . About the pcking

Color box and cartons is witout design,and can use numper sticker with your logo and brand .

4 . About your brand and color box

We can OEM your brand and printing the color box with your logo , but need the MOQ 500 pcs .

5 . About payment

1 ) Normall payment is 30% T / T deposit in advance,the 70% balance paid before shipment .

2 ) TT paid against BL or L / C at sight also acceptable .

Application

Widely used in kitchen , toilet , offcie .
