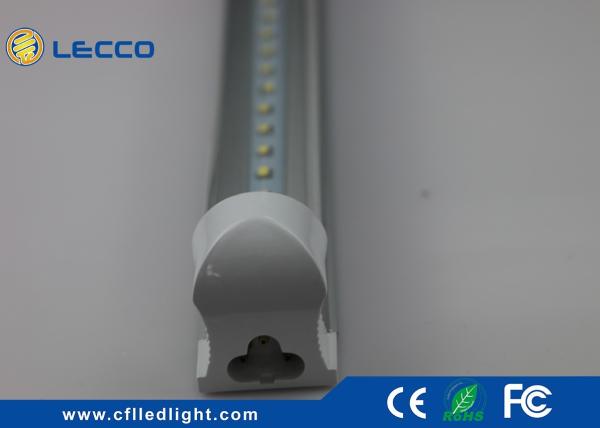

LED Integrated Tube T8 14W Installing Without Fixture Clear PC Cover 6000K 900mm Long PF > 0.9 SMD 2835
Quick Details
Model No.:LTB-8T14W-5 | Certificate: CE RoHS FCC |
Item Type:T8 LED Tube | Power: 14W |
Place of origin:Lin'an | Input Voltage: 85 - 265V |
Length : 0.9M | Lumen : 80 LM / W |
Warranty: 2 year | Working Temp.: :- 40 - 60 ℃ |
Description
1 . We choose very good driver supplier like Meanwell,mosopower to have constact current output to the LED chip , which is also safe .
2 . Easy to apply , can change traditional incandescent bulbs and CFL bulbs directly , saving more energy and having longer life .
3 . All products are output strictly under ISO 9001 Quality Management System and CE satisfied .
4 . Voltage : all of our LED products supply wide range voltage input .
Lamp parameters
Type | T8 LED Tube 14W Fixture Integrated Clear Cover | |
Optical Parameter | Color Rendering Index | > 80 Ra |
SDCM | < 3 | |
Color Temparature | 6400K | |
Luminous Efficency | > 80 lm / w | |
Light Transmittance: | > 90% | |
Luminous Decay | < 5% at 3000hrs , < 9% at 6000hrs | |
LED Chip Brand | Epistar | |
Junction Temperature | 65 ℃ | |
Chip Quantity | 72 pcs SMD 2835 , 0.2W | |
Electronic Parameter | Power | 14W |
Power Factor | > 0.9 | |
Isolated Power Supply | Yes | |
Input Voltage | 85V - 265V | |
Current | Constact Current with IC | |
Dirver Brand | Mosopower , Wellpower , Meanwell , Lifud | |
Structural Parameters | Length | 900mm |
Installation | Ceiling Mounted / Suspending | |
Materials | PC + Aluminum | |
IP Rating | IP 20 | |
Energy Efficiency Grade | A | |
Certification | CE / RoHS / FCC | |
Lumen | > 1100 LM |
Quality Control ( QC )
1 . Strict raw materials inspection .
2 . Technical parameter adjustment :
1 ) Technicians will tune the technical parameters of each items to make sure the Wattage , P.F.living up to the requirement of customer
2 ) Destructive test , light it in the oven to be under the conditions of high temperature and high voltage
3 ) Turn on off test , to make sure the life time of the lamp
4 ) Start test in low temperature and low voltage ( light in the fridge )
3 . In the mass production , our QC will take selective examination on every step , such as Plug-in , Wave soldering , PCB test , Tube glue , Assembly , Print , Ageing , Packing .
4 . we are testing every lamp before packed in the cartons .
Trade terms
1 . Payment term : T/T , 30% deposits in advance , 70% balance before shipment .
2 . Samples can be provided for free , but the express fee need to be payed for the first time , and can be returned after placing the first order .
3 . Shipping freight are quoted under your requests .
4 . Shipping port : Shanghai / Ningbo .
5 . If not mentioned , all of our price is FOB price , and also can be CFR or CIF
Application
Widely used in home & commercial Lighting , always using together with the downlight fixtures , applying in office , Hallway , Hotel , room , shop , ect .
