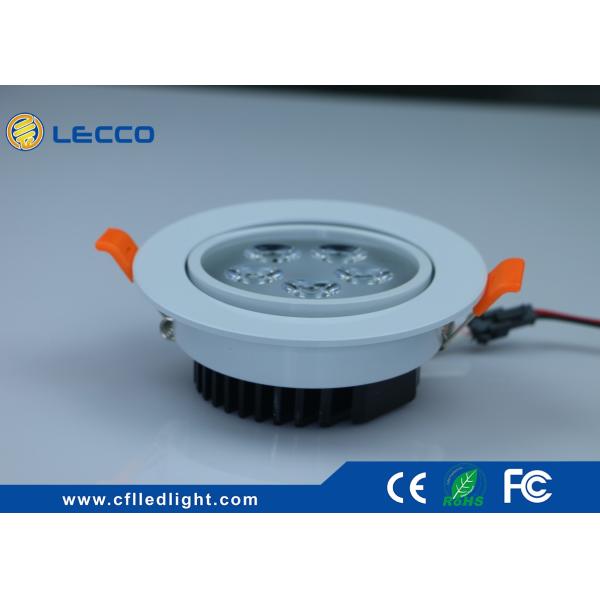

1W Big Power Chip Blade Aluminum LED Recessed Spot Lights 5W 15 ° Adjust Angle 500 LM
Quick Details
LED Chip : Epistar | Certificate : CE RoHS FCC |
Item Type : LED Recessed Spot Lights | Power : 5W |
Adjust Angle : 15 ° | Input Voltage : 85 - 265V |
Brand name : LECCO | Lumen : 100 LM / W |
feature: excellent heat conduction |
Description
1 . Beam angle 120 ° , Ajust angle 15 ° .
2 . SDCM < 5 ,CRI > 80 Ra ,Luminous efficiency > 100 .
3 . The average lifetime of our LED bulb is at least 30 000h , we garantee the quality for 3 years .
4 . Living up to the IEC62031 : 2008 & 62560 standard .
5 . Saving 80% electricity compared to traditional grille lamp with fluorescent tube .
6 . 1W big power LED Chip , Epistar .
7 . Using pure Lathe aluminum , haveing excellent heat conduction ,160 W / ( m.K ) .
8 . For the pack ,color box and master cartons .
9 . Using constant current driver with IC to make sure the led chip life .
10 . We choose very good driver supplier like Meanwell,mosopower to have constact current output to the LED chip , which is also safe .
11 . Using spray - painted aluminum frame , very simple and fashionable .
Lamp parameters
Type | LED Recessed Spot Lights Big Power 5W Blade Type | |
Optical Parameter | Color Rendering Index | > 80 Ra |
SDCM | < 3 | |
Color Temparature | 6400K | |
Luminous Efficency | > 100 lm / w | |
Light Transmittance | > 90% | |
UGR | < 19 | |
Luminous Decay | < 5% at 3000hrs , < 9% at 6000hrs | |
LED Chip Brand | Epistar | |
Junction Temperature | 65 ℃ | |
Chip Quantity | 5 pcs 1W Big Power | |
Electronic Parameter | Power | 5W |
Power Factor | > 0.9 | |
Isolated Power Supply | Yes | |
Input Voltage | 85V - 265V | |
Current | Constact Current with IC | |
Dirver Brand | Mosopower , Wellpower , Meanwell , Lifud | |
Structural Parameters | Size | W 110 * H 42 mm |
Installation | Recessed | |
Materials | Lathe Aluminum + PMMA | |
Beam Angle | 120 ° | |
Adjust Angle | 15 ° | |
IP Rating | IP 20 | |
Thermal Tranmissivity | 160 W / ( m.K ) | |
The Value of Permissible Voltage | < 5000V | |
Operating Temp. | -20℃ to +40℃ | |
Life Time | > 30 000H | |
Energy Efficiency Grade | A | |
Certification | CE / RoHS / FCC | |
Lumen | > 500 LM |
Frequently Asked Questions ( FAQ )
1 . About price
All is FOB prices , and If you don’t provide the quantity and mention if need to OEM your brand , we qoute the wholesale prices for our brand .
2 . About samples
we can provide samples for you to check and test for fee , but need you to pay the express fee .
3 . About the pcking
Color box and cartons is witout design,and can use numper sticker with your logo and brand .
4 . About your brand and color box
We can OEM your brand and printing the color box with your logo , but need the MOQ 500 pcs .
5 . About payment
1 ) Normall payment is 30% T / T deposit in advance,the 70% balance paid before shipment .
2 ) TT paid against BL or L / C at sight also acceptable .
6 . About delivery time
Samples within 3 workdays , bulk purchase below MOQ 5 - 7 workdays , others quantity we can discusse .
7 . About warranty
All panle lights are guaranteed for 3 years , if get bad we will replace it one by one .
Application
Widely used in home & commercial Lighting , applying in office , Hallway , Hotel , room , shop , ect .
