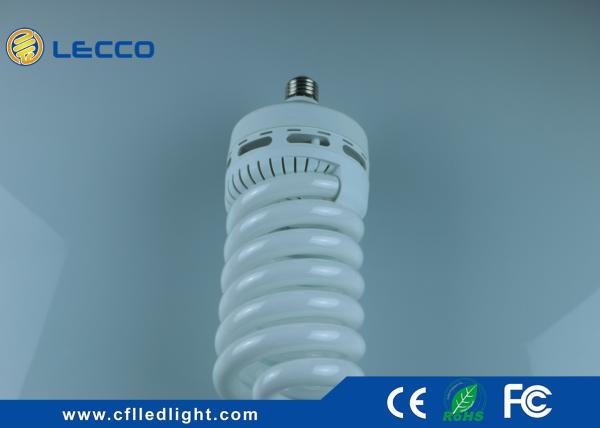

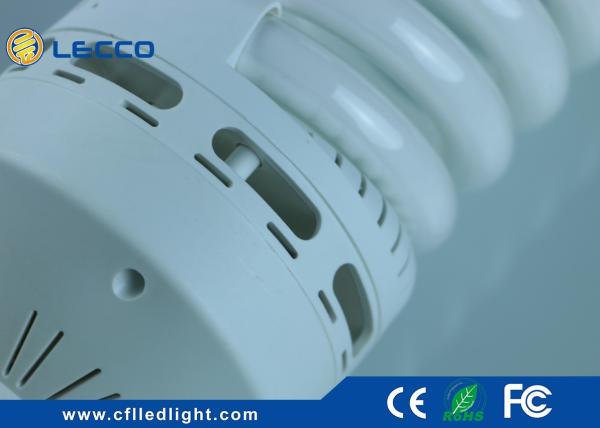

Full Spiral 105W T5 Energy Saving Lamp Big Power For Workshop 6400K High Lumen

Lamp parameters

Type Full Spiral
Tube Diameter: Φ 17mm
Length :/
Circle : 6.5T
Color Rendering Index: > 80 Ra
SDCM: < 5
Color Temparature: 2700K - 6400K
Luminous Efficency: > 65lm / w
2000h Luminous Depreciation: <15%
Responsive Time: < 0.5s
Turn on off time: > 10 000 times
Luminous Decay: Less than 15% at 2000hrs
Powder: 100% A - gradeTriphosphor
Power: 105W
Power Factor: > 0.9
Working Voltage: 110V - 127V / 185 - 265V
Transister / Capacitor: Huajing / Aishi
Size: E27 / E40
Materials: Nickelplated Aluminum

Type Soldering
Wideth: 105mm
Materials: PBT
PBT plastic cover with middle cover

Working Temp. : - 30 ℃ to + 40 ℃

Lifetime : > 8000H

Lumen : > 4750 LM

Quick Details

Features

1 . Power : 85W

2 . P.F. : > 0.9

3 . Power consumption: < 10%

4 . Lead free glass tube

5 . Compact type , integrate the ballast in the lamp

6 . 100% triphosphor A - grade powder

1 ) Luminous efficency: > 65 lm / w

2 ) Brightness maintance: > 80% after 2000H

3 ) CRI : > 80 Ra

4 ) SDCM : < 5

Description

1 . Guarantee is for 2 years .

2 . The average lifetime of our lamp is at least 6000h .

3 . Saving 80% electricity compared to traditional incandescent bulbs .

4 . No flicker , No noise , No electromagnetic interference ( EMI ) .

5 . Turn on – off time is more than 12 000 times .

6 . Using PBT plastic cover, PBT have two advantage : ① Inflaming retarding ② High temperature resistance .

7 . Using nickleplated aluminum base , very good to avoid getting rusted .

8 . The key components is the electrolytic capacitor and transister , we are choosing GRP or AISHI for our electrolytic capacitor and choosing HUAJING as our transister .

9 . Easy to apply , can change traditional incandescent bulbs directly , the ballast in integrated in to the lamp .

10 . Voltage : Both 110 - 130V and 220 - 240V available with 50 / 60Hz ; Wide range voltage is possible .

Competitive advantage

1 . Strict raw materials inspection .

2 . Technical parameter adjustment :

1 ) Technicians will tune the technical parameters of each items to make sure the Wattage,P.F living up to the requirement of customer

2 ) Destructive test , light it in the oven to be under the conditions of high temperature and high voltage

3 ) Turn on off test , to make sure the life time of the lamp

4 ) Start test in low temperature and low voltage ( light in the fridge )

3 . In the mass production , our QC will take selective examination on every step , such as Plug-in , Wave soldering , PCB test , Tube glue , Assembly , Print , Ageing , Packing .

4 . we are testing every lamp before packed in the cartons .

5 . In the warehouse,our QCs will take sampling inspection before load the container , if not qualified with the AQL , we will rework .

6 . After laoding the container,we will trace the life time of ech order,we will pick 10 pcs of each item to light in the ageing room till the lamp die , so we can trace down the real life time of each order .

Application

Widely used in home & commercial Lighting , always using together with the downlight fixtures , applying in office , Hallway , Hotel , room , shop , ect .
