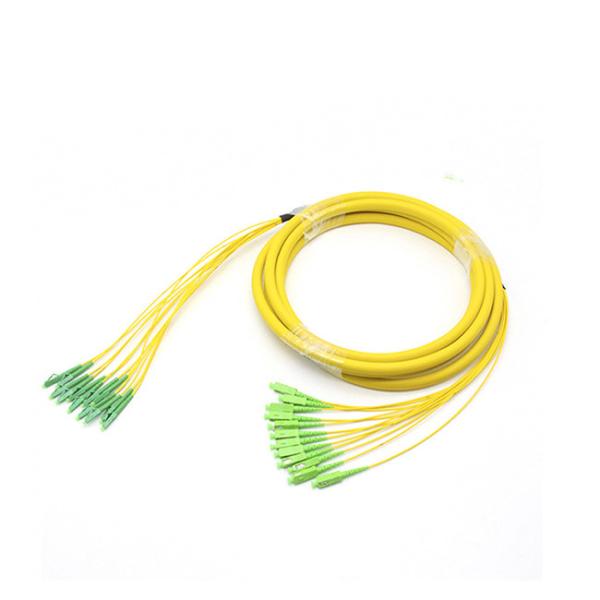

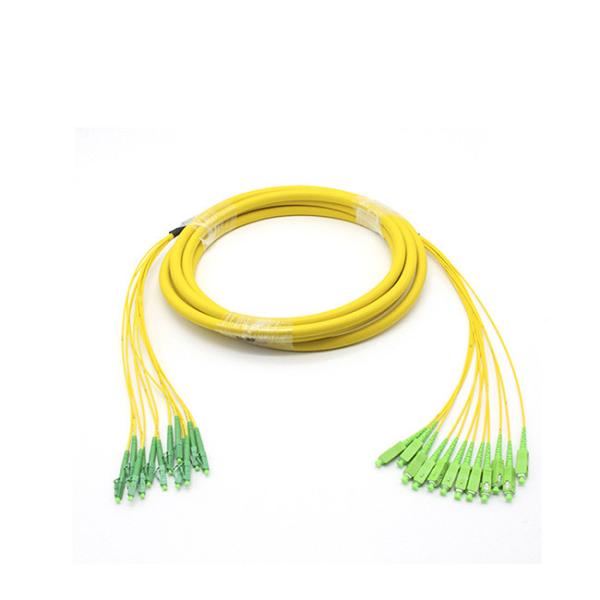

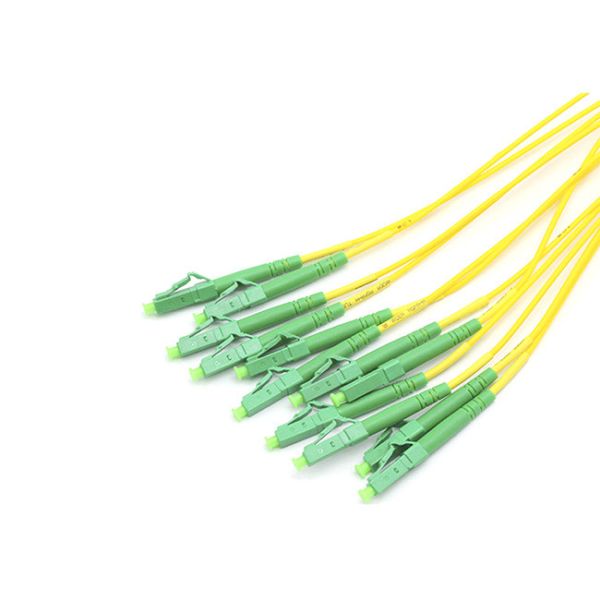

Pre Terminated Single Mode Fiber Optic Patch Cord 12 Core SC APC To LC APC
Pre Terminated Single Mode Fiber Optic Patch Cord 12 Core SC APC To LC APC
Pre Terminated Single Mode Fiber Optic Patch Cord 12 Core SC APC To LC APC
Pre Terminated Single Mode Fiber Optic Patch Cord 12 Core SC APC To LC APC
Specifications
Brand Name :
CFOFC
Model Number :
CFOFC-PC-SC/LC-SM
Certification :
ROHS ISO 9001
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/day
Delivery Time :
5-8 work days
Packaging Details :
standard packing or reel packing
Product name :
Fiber Optic Patch Cord
Fiber type :
G652D G657A1 G657A2 G657B3
Connector type :
SC-LC
Material :
SM
Fiber count :
12
Diameter :
2.0 MM
Description
Pre Terminated Single Mode Fiber Optic Patch Cord 12 Core SC APC To LC APC
Description Of Fiber Patch Cord
Indoor multi-fiber breakout patch cord cable assemblies are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
Specification Of Fiber Patch Cord
ange of ModeSingle mode or Multi mode
Cable TypeSimplex, Duplex Ziocord. or Multi-cores
Connector StyleSC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface TypePC, UPC, APC
Cable Diameter0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer JacketPVC /LSZH/OFNP
Jacket ColorSM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
Durability500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp.-25℃ to +70℃
Storage Temp.-40℃ to +85℃

ProductLC/UPC to SC/APC 12 24 fibers Multifiber Full Breakout 1.6mm Cable Assemblies
Pre-Terminated ConnectorLC FC SC ST
PolishedUPC or APC
Fiber Count4 8 12 24 48 Fibers
Fiber ModeSM OM1 OM2 OM3 Om4
Jacket ColorYellow Aqua orange
Breakout OD0.9mm or 2.0mm
Insertion Loss< 0.3 DB
Return Loss>50db
Jacket MaterialsPVC LSZh
Product Keywords0.9mm pvc jacket 9/125 Single mode Riser and Plenum Fiber Trunk Cables

Features:


Features Of Fiber Patch Cord
  • Available in OM1, OM2, OM3, OM4 and OS1 fiber types
  • 2 – 24 core full breakout cable
  • 1.6mm ruggedised tails
  • Internal LSZH cable jacket
  • Available with all standard connectivity
  • Factory terminated and tested
  • 100% tested – combination of high quality components and manufacturing quality control guarantees product to the highest standards.
Application Of Fiber Patch Cord
  • High density cable wiring system
  • Switching between trunk line and distribution line
  • High integrated equiement and devices

Pre Terminated Single Mode Fiber Optic Patch Cord 12 Core SC APC To LC APC

FAQ

1. Are you factory direct?
as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

The reason why Choose us:

1. Our shipping time is strictly controlled
2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer
3. Our company has rich export experience and is familiar with the customs policies of various countries
4. Large product inventory with massive production line
5. China's professional gas detection leader
6. Product distribution involves multi-fields, dozens of countries including some developed countries.






















Product tags

fiber patch cord sc to lc

,

single mode lc-lc patch cord

,

lc-lc single mode patch cord
