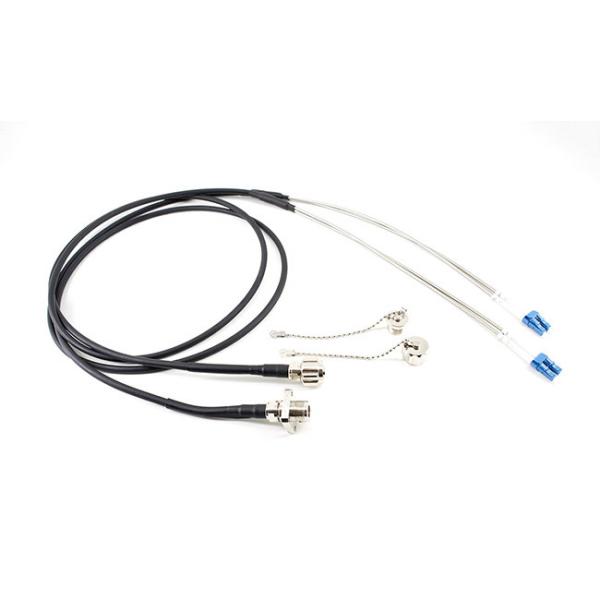

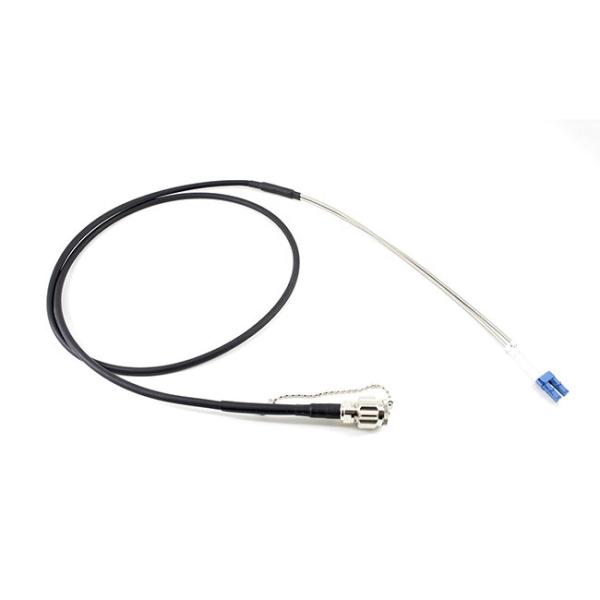

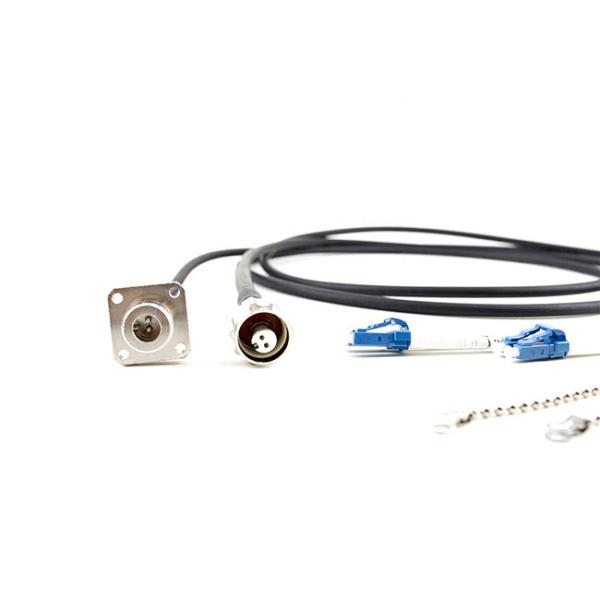

Outdoor ODC-2 Fiber Optic Connector 2 Core Male Female Connector Duplex LC Patch Cable
Outdoor ODC-2 Fiber Optic Connector 2 Core Male Female Connector Duplex LC Patch Cable
Outdoor ODC-2 Fiber Optic Connector 2 Core Male Female Connector Duplex LC Patch Cable
Outdoor ODC-2 Fiber Optic Connector 2 Core Male Female Connector Duplex LC Patch Cable
Outdoor ODC-2 Fiber Optic Connector 2 Core Male Female Connector Duplex LC Patch Cable
Outdoor ODC-2 Fiber Optic Connector 2 Core Male Female Connector Duplex LC Patch Cable
Specifications
Brand Name :
CFOFC
Model Number :
CFOFC-FTTH-ODC
Certification :
ISO9001/ REACH / ROHS
Place of Origin :
Shenzhen, China
MOQ :
10Pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal, Western Union
Supply Ability :
30,000 pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Individual Pack , plus outer cartons
Type :
ODC-2 fiber optic connector
Fiber type :
SM
Fiber Core :
2
Cable OD :
2.0
Connector :
LC
Jacket :
LSZH,TPU,PE
Description

ODC-2 Fiber Optic Connector 2 Fibers Socket To Duplex LC Patch Cable

Description OF ODC-2 Fiber Optic Connector
ODC fiber optic patch cables with extremely robust outdoor connector are designed to withstand harsh environment such as mechanical loads, high thermal exposure, and demanding environments like rain, salt and splash water. It is known for their ease of installation and highest operation safety due to the robust and ruggedized design. ODC military grade cables are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe nvironmental conditions.
Specification ODC-2 Fiber Optic Connector
Fiber Core 2,4
Mode Singlemode Multimode
Operating Wavelength(nm) 1310/1550 850/1310
Polishment UPC APC UPC
Insertion Loss(Max.dB) 0.7 0.6
Return Loss(Min.dB) 55 60 35
Mating times 500 Min
Durability(Max.dB) 0.2
Reaptability(Max.dB) 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85
Features ODC-2 Fiber Optic Connector

Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism

High shock, vibration, and mechanical resistance

IP68 protection, salt-mist proof and EMI protection

Easy, reliable and cost-effective installation.

Broad temperature range and wide range of indoor and outdoor cables

Application ODC-2 Fiber Optic Connector

Far transmission wireless base station.

Video Surveillance system

Optical fiber sensor.

Railway signal control

Intelligent substation

Outdoor & Military communication equipment connection.

Oil field, mine communication connection.

Outdoor ODC-2 Fiber Optic Connector 2 Core Male Female Connector Duplex LC Patch CableOutdoor ODC-2 Fiber Optic Connector 2 Core Male Female Connector Duplex LC Patch CableOutdoor ODC-2 Fiber Optic Connector 2 Core Male Female Connector Duplex LC Patch Cable

The reason why Choose us:

1. On time delivery

2. Factory outlet

3. Customization

4. Large product inventory with massive production line

5. Product distribution involves multi-fields, dozens of countries including some developed countries.

FAQ

1. Can I have a sample order of this product?

Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.

3. What's your payment terms?

We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

4. Are you factory direct?

As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

5. Is there any discount on the product?

We have several production promotion activities every month, welcome to inquire.
