Specifications
Brand Name :
CFOFC
Model Number :
CFOFC-GJSFJBV-DX
Certification :
ISO9001/CE/ROHS/REACH
Place of Origin :
Guangdong, China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
5000KM per Month
Delivery Time :
5-8 work days
Packaging Details :
2KM per Reel
Application :
indoor
Fiber type :
OS1 / OS2
Fiber count :
2 CORE
Jacket material :
LSZH/PVC
Cable diameter :
2.0*3.0
Description

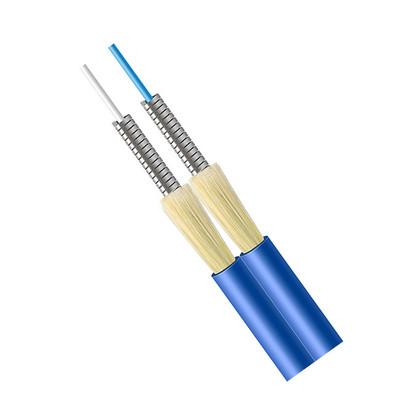

GJSFJBV Duplex Double Tube Armored Fiber Optic Cable 2 Core PVC/LSZH

Description of armored optical fiber cable

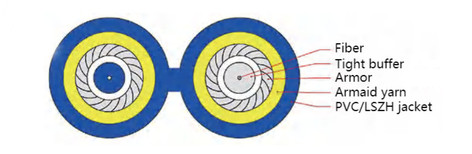

GJSFJBV optical cable is to wrap a layer of flat stainless steel wire armor on the surface of ф900μm or ф600μm tight-buffered optical fiber, spread multi-strand aramid fibers evenly outside the armor layer, and then extrude the flame-retardant outer sheath to form a cross-section of "8" side-by-side optical cables.

Specification of armored optical fiber cable

FiberCount
parallel reinforcement specification
(mm)
Outer Diameter(mm)
Weight(g/M)
max tension(N)
max crush resistance(N)
bending radius(MM)
short time
long time
short time
long time
static
Dynamic
2
Kevlar
2.0*40mm
24
200
500
300
1000
10D
20D
2
Kevlar
30*58mm
32
350
800
300
1000
10D
20D
2
Kevlar+stainless steel weave mesh
32*60mm
36
500
1000
500
2000
10D
20D

G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20°C)
@850nm ≤3.0dB/km ≤3.0dB/km
@1300nm ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km --
@1550nm ≤0.22dB/km ≤0.23dB/km
Bandwidth
(Class A)
@850 ≥500MHZ·km ≥500MHZ·km
@1300 ≥1000MHZ·km ≥600MHZ·km
Numerical aperture 0.200±0.015NA 0.275±0.015NA
Cable cut-off wavelength ≤1260nm ≤1480nm

Feature of armored optical fiber cable

1. 0.6/0.9mm tight buffer fiber

2. Armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent.

3. Good mechanical and environmental performance.

4. It is the construction stainless steel tube with dupont aramid yarn provide the cable enough tensile strength and pressure strength.

5. Storage/Operating Temperature: -40°C to + 70°C.

6. LSZH or PVC jacket. Flame retardant outer sheath provide good safety.

Application of armored optical fiber cable

1. Fiber optic pigtails, patch cords.

2. Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc

3. Indoor cabling,building cabling,LAN, etc

4. Long distance, outdoor/indoor cabling, trunking,etc.

5. FTTH and user termination

6. Duct, manhole and building wiring

GJSFJBV Duplex Double Tube Armored  Fiber Optic Cable  2 Core  PVC/LSZH
