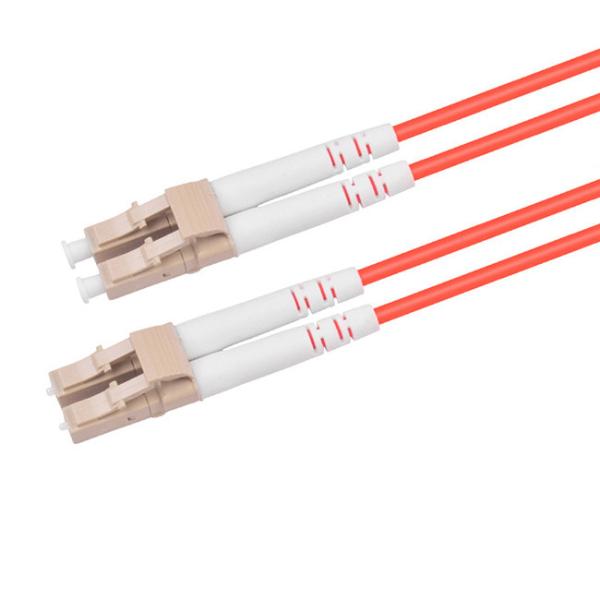

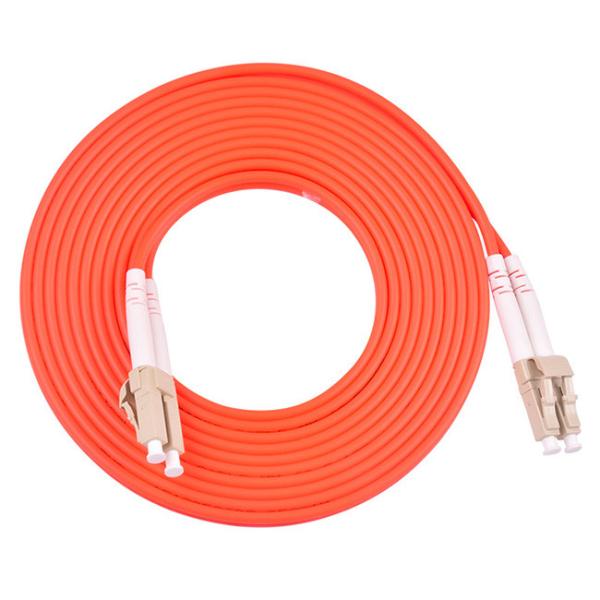

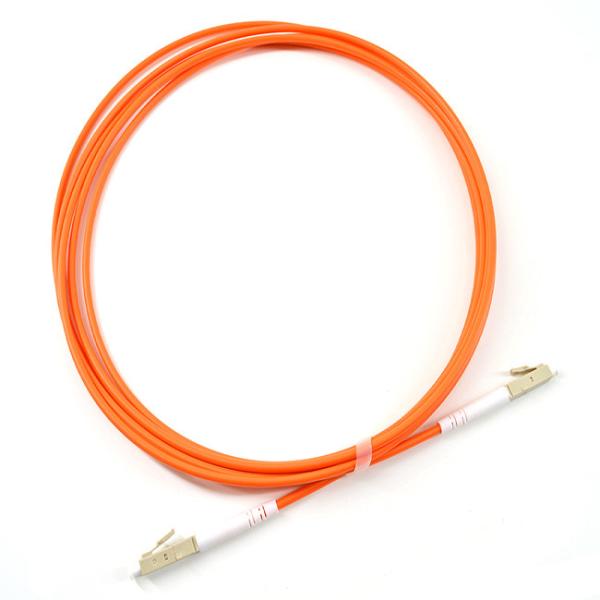

Fiber Optical Patch Cord Duplex 3.0mm 2.0mm LSZH LC UPC-LC UPC Multimode OM2
Fiber Optical Patch Cord Duplex 3.0mm 2.0mm LSZH LC UPC-LC UPC Multimode OM2
Fiber Optical Patch Cord Duplex 3.0mm 2.0mm LSZH LC UPC-LC UPC Multimode OM2
Fiber Optical Patch Cord Duplex 3.0mm 2.0mm LSZH LC UPC-LC UPC Multimode OM2
Fiber Optical Patch Cord Duplex 3.0mm 2.0mm LSZH LC UPC-LC UPC Multimode OM2
Fiber Optical Patch Cord Duplex 3.0mm 2.0mm LSZH LC UPC-LC UPC Multimode OM2
Specifications
Brand Name :
CFOFC
Model Number :
CFOFC-om2 Duplex LC to LC patch cord
Certification :
ROHS ISO 9001
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/day
Delivery Time :
5-8 work days
Packaging Details :
standard packing or reel packing
Product name :
om2 Duplex LC to LC patch cord
Fiber type :
OM2 62.5/125
Connector type :
LC
Material :
PVC/LSZH
Fiber count :
2 CORE
Diameter :
3.0 MM
Description
Fiber Optical Patch Cord Duplex 3.0mm 2.0mm LSZH LC UPC-LC UPC Multimode OM2
Description Of Fiber Optical Patch Cord
Fiber Optic Patch Cable is known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. CFOFC fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cords, the SC, ST, FC, LC, MU, MTRJ,connectors are all available.
Specification Of Fiber Optical Patch Cord
Specification Single Mode Multi Mode
Parameter PC UPC APC UPC
Operating Wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss ≤0.3dB ≤0.2dB ≤0.3dB ≤0.2dB
Return Loss ≥40dB ≥50dB ≥60dB ≥30dB
Fiber Type G652D,G655, G657A1, G657A2, G657B3 OM1/OM2/OM3/OM4/OM5
Fiber Brand YOFC, Corninng
Exchange ≤0.2dB
Repeartability ≤0.2dB
Durability > 1000 times
Connectors Type SC, LC, FC, ST, E2000, MU, MTRJ, MPO, DIN, SMA, VF-45, LX.5
Fiber Count 4, 6, 8, 10, 12, 24, 36, 48, 72, 96, 144 Cores
Sheath Material PVC, LSZH, OFNR, OFNP
Cable Diameter φ3.0mm, φ2.0mm, φ0.9mm or Specify
Length (M) Customized
Operating Temperature -40℃~+60℃
Storage Temperature -45℃~+85℃
Compliant Standards CE,RoHS, REACH and IEC

Features Of Fiber Optical Patch Cord

  • Compliant with international standards such as TIA/EIA, IEC
  • also accord with the industrial standards of Telecom in China
  • Realize the active link of optic fiber transmission
  • Low insertion loss and high return loss
  • Excellent repeatability and interchangeability

Applications Of Fiber Optical Patch Cord

  • Optic-fiber Communication Systems
  • Optic-fiber Data Communications
  • Optic-fiber Access Networks
  • Optic-fiber CATV
  • LAN,Cabling system,ODF
  • Test Equipment
  • Optic-fiber Sensors
  • FTTX applications

Fiber Optical Patch Cord Duplex 3.0mm 2.0mm LSZH LC UPC-LC UPC Multimode OM2

FAQ

1. Are you factory direct?

as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

2. What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord

3. Product quality guarantee period?

20 years Guarantee for fiber optic cable

4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

The reason why Choose us:

1. Our shipping time is strictly controlled

2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer

3. Our company has rich export experience and is familiar with the customs policies of various countries

4. Large product inventory with massive production line

5. China's professional gas detection leader

6. Product distribution involves multi-fields, dozens of countries including some developed countries.
