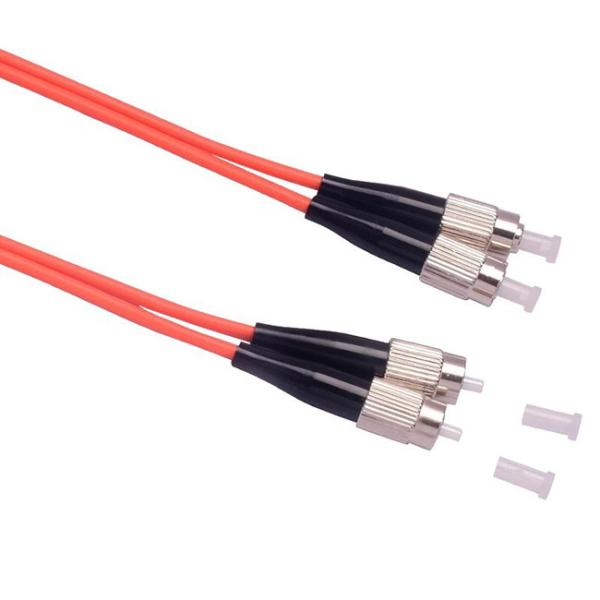

Duplex Fiber Optic Patch Cord 2.0mm LSZH FC UPC - FC UPC Multimode OM1
Duplex Fiber Optic Patch Cord 2.0mm LSZH FC UPC - FC UPC Multimode OM1
Duplex Fiber Optic Patch Cord 2.0mm LSZH FC UPC - FC UPC Multimode OM1
Duplex Fiber Optic Patch Cord 2.0mm LSZH FC UPC - FC UPC Multimode OM1
Duplex Fiber Optic Patch Cord 2.0mm LSZH FC UPC - FC UPC Multimode OM1
Duplex Fiber Optic Patch Cord 2.0mm LSZH FC UPC - FC UPC Multimode OM1
Specifications
Brand Name :
CFOFC
Model Number :
CFOFC-OM1 Duplex Orange Fc Lszh 2.0 Mm patch cord
Certification :
RHOS ISO 9001
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/day
Delivery Time :
5-8 work days
Packaging Details :
standard packing or reel packing
Product name :
Duplex 2.0mm PVC LSZH OFNR FC UPC - FC UPC Multimode OM1 Fiber Patch Cord
Fiber type :
OM1
Connector type :
FC
Material :
PVC/LSZH
Fiber count :
2
Diameter :
2.0 MM
Description
Duplex Fiber Optic Patch Cord 2.0mm LSZH FC UPC - FC UPC Multimode OM1

Fiber Optic Patch Cord is important of optic network, they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection od lengths and connectors to fulfill your demand for the deployment.

Specification Of Fiber Optic Patch Cord
Specification Single Mode Multi Mode
Parameter PC UPC APC UPC
Operating Wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss ≤0.3dB ≤0.2dB ≤0.3dB ≤0.2dB
Return Loss ≥40dB ≥50dB ≥60dB ≥30dB
Fiber Type G652D,G655, G657A1, G657A2, G657B3 OM1/OM2/OM3/OM4/OM5
Fiber Brand YOFC, Corninng
Exchange ≤0.2dB
Repeartability ≤0.2dB
Durability > 1000 times
Connectors Type SC, LC, FC, ST, E2000, MU, MTRJ, MPO, DIN, SMA, VF-45, LX.5
Fiber Count 4, 6, 8, 10, 12, 24, 36, 48, 72, 96, 144 Cores
Sheath Material PVC, LSZH, OFNR, OFNP
Cable Diameter φ3.0mm, φ2.0mm, φ0.9mm or Specify
Length (M) Customized
Operating Temperature -40℃~+60℃
Storage Temperature -45℃~+85℃
Compliant Standards CE,RoHS, REACH and IEC

Parameter Testing condition Testing condition FC,SC,ST/UPC FC,SC/APC
Optical Max Insertion loss(db) light source:1.3um(LED) 0.3 0.3
Performance Min Insertion loss(db) light source:1.3um(LD) 50 60
Mechanical Reciprocation Free Reciprocation 0.2
Aseismation 10~58Hz,swing 1.5mm 0.2
performance Repetition >1000 0.1
Environment High Temperature +85°C,100 hours 0.2
Low Temperature -40°C,100 hours 0.2
Temperature Circle -40~80°C,5 times circle 0.2
Humidity +25~65°C,93%R.H. 100 hours 0.2

Applications Of Fiber Optic Patch Cord

  • low Insertion Loss
  • High Return Loss
  • Good Repeatability
  • Good Exchangeability
  • High Temperature Stability


Characteristics Of Fiber Optic Patch Cord

  • Simplex and duplex connector available
  • High precision of mechanical dimensions.
  • Good exchange ability and good durability;
  • Low Insertion Loss, High temperature Stability and Good exchangeability.
  • Fan-out Available, Pigtail Available, Various

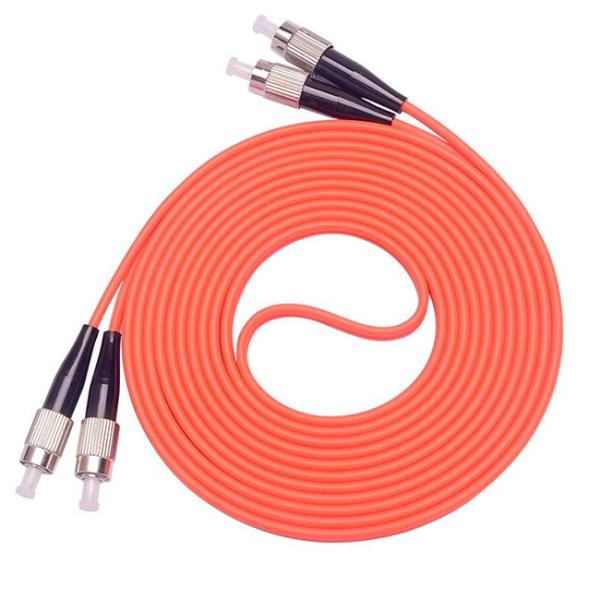

Duplex Fiber Optic Patch Cord 2.0mm LSZH FC UPC - FC UPC Multimode OM1Duplex Fiber Optic Patch Cord 2.0mm LSZH FC UPC - FC UPC Multimode OM1
FAQ


1. Are you factory direct?
as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

The reason why Choose us:

1. Our shipping time is strictly controlled
2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer
3. Our company has rich export experience and is familiar with the customs policies of various countries
4. Large product inventory with massive production line
5. China's professional gas detection leader
6. Product distribution involves multi-fields, dozens of countries including some developed countries.
