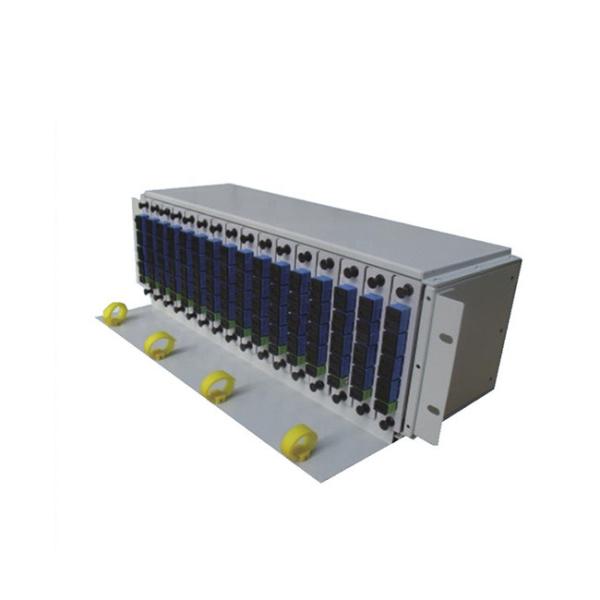

16 Slots 1x8 Fiber Optic Splitter 19 Inch 3.5U LGX Chassis
16 Slots 1x8 Fiber Optic Splitter 19 Inch 3.5U LGX Chassis
Specifications
Brand Name :
CFOFC
Model Number :
CFOFC-LGX-8
Certification :
Rohs ISO 9001
Place of Origin :
Shenzhen
MOQ :
1000
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
100000pcs per week
Delivery Time :
5-8 work days
Packaging Details :
1PC/polybag, 55 x 45 x 20 ( Millimeters)
Application :
FTTH FTTB FTTX Network
Product name :
1*8 PLC splitter
Connector :
SC/APC/UPC
Material :
ABS+PC
Connector type :
SC
Splitter :
splitter
Description
16 Slots Fiber Optical PLC Splitter LGX Chassis 19 Inch 3.5U For 1x8 LGX Modules

Description of Fiber PLC Splitter

CFOFC provide full series of standard PLC splitter with 1x2, 1x3, 1x4, 1x6, 1x8,1x16,1x32,1x64,2x2,2x4,2x8,2x16,2x32,2x64, also with Non-standard 1x3 1x6 1x12 for options.It widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. All wavelengths (1260-1620nm) are not sensitive.
Specification of Fiber PLC Splitter
Parameters
Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength(nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformit(dB) 0.4 0.6 0.8 1.2 1.5 2 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Return Loss(dB)(P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity(dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Temperature Stability (-40~85℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85
Device Dimension(mm) 40×4×4 40×4×4 40×4×4 50×7×4 50×7×4 60×12×4 N/A
Module Dimension(mm) 100×80×10 120×80×18 141×115×18
Mini-Module Dimension(mm) 50×7×4 60×12×4 80×20×6 100×40×6 N/A
Features of Fiber PLC Splitter
Excellent Environmental Stability

Excellent Mechanical

Good uniformity and low insertion loss

Low Polarization Dependent Loss

Stability Telcordia GR-1221 and GR-1209

Application of Fiber PLC Splitter

FTTx Systems

Digital, hybrid and AM-Video systems

LAN,WAN and Metro Networks

CATV systems

Other applications in fiber optic systems


16 Slots 1x8 Fiber Optic Splitter 19 Inch 3.5U LGX Chassis16 Slots 1x8 Fiber Optic Splitter 19 Inch 3.5U LGX Chassis16 Slots 1x8 Fiber Optic Splitter 19 Inch 3.5U LGX Chassis16 Slots 1x8 Fiber Optic Splitter 19 Inch 3.5U LGX Chassis16 Slots 1x8 Fiber Optic Splitter 19 Inch 3.5U LGX Chassis
The reason why Choose us
1. On time delivery

2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields, dozens of countries including some developed countries.

FAQ

1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.

3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
