1490nm AOC DAC Cable 1550nm DOM Bidi 10G SFP+ 80km
1490nm AOC DAC Cable 1550nm DOM Bidi 10G SFP+ 80km
Specifications
Brand Name :
CFOFC
Model Number :
CFOFC-10g bidi sfp+ 80km
Certification :
ISO9001/ REACH / ROHS
Place of Origin :
Shenzhen, China
MOQ :
10Pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal, Western Union
Supply Ability :
30,00000 pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Individual Pack , plus outer cartons
Product name :
10g bidi sfp+ 80km
Application :
Telecommunications,FTTH FTTB FTTX Network,Network
Connector type :
LC
Data Rate :
10G/s
Wavelength :
1490nm/1550nm
Transmission Distance :
80km
Description

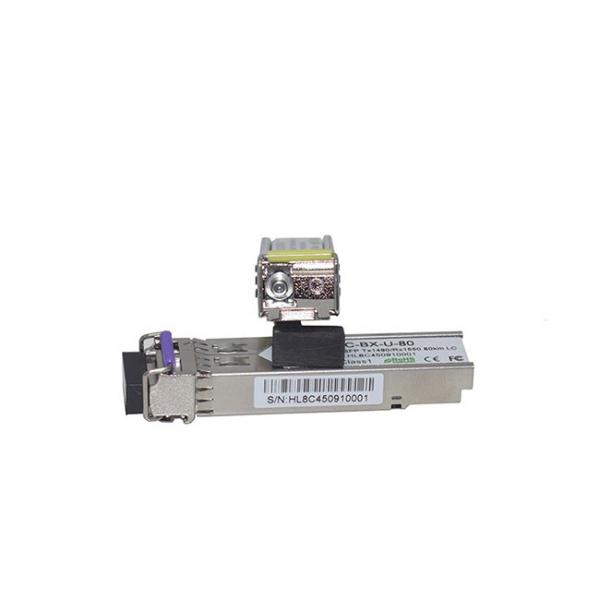

10G Bidi SFP+ 80km Optical Transceiver Module 1490nm/1550nm DOM

Description of Optical Module

10G SFP+ Bidi 80km are designed for use in 10-Gigabit Ethernet links up to 80km over a single-strand Single Mode fiber.This capability doubles the capacity of installed legacy single mode fiber links.They are compliant with SFF-8431 and IEEE 802.3ae 10GBASE-LR/LW, and 10G Fibre Channel 1200-SM-LL-L.Digital diagnostics functions are available via a 2-wire serial interface

Specification of Optical Module

155M/622M BiDi SFP LC/SC 155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
4/2/1G BIDI SFP LC/SC 4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM
1.25G 40km CWDM BiDi SFP 1.25G 40km DDM LC CWDM BiDi SFP (60nm Channel Spacing)
10G SFP BiDi SFP+ BiDi 1270 20km SFP+ BiDi 20km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 20km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
SFP+ BiDi 1270 40km SFP+ BiDi 40km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 40km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
SFP+ BiDi 1270 60km SFP+ BiDi 60km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 60km SFP+ BiDi 60km Tx1330nm/Rx1270nm LC
SFP+ BiDi 1490 80km SFP+ BiDi 80km Tx1490nm/Rx1550nm LC
SFP+ BiDi 1550 80km SFP+ BiDi 80km Tx1550nm/Rx1490nm LC
10G XFP BiDi XFP BiDi 1270 20km XFP BiDi 20km Tx1270nm/Rx1330nm LC
XFP BiDi 1330 20km XFP BiDi 20km Tx1330nm/Rx1270nm LC
XFP BiDi 1270 40km XFP BiDi 40km Tx1270nm/Rx1330nm LC
XFP BiDi 1330 40km XFP BiDi 40km Tx1330nm/Rx1270nm LC
XFP BiDi 1270 60km XFP BiDi 60km Tx1270nm/Rx1330nm LC
XFP BiDi 1330 60km XFP BiDi 60km Tx1330nm/Rx1270nm LC
XFP BiDi 1490 80km XFP BiDi 80km Tx1490nm/Rx1550nm LC
XFP BiDi 1550 80km XFP BiDi 80km Tx1550nm/Rx1490nm LC

Features of Optical Module

Up to 11.1Gbps Data Links

Up to 80km transmission on SMF

1490nm EML laser and APD receiver for ESPB4592-3LCD80

1550nm EML laser and APD receiver for ESPB5492-3LCD80

2-wire interface with integrated Digital Diagnostic monitoring

EEPROM with Serial ID Functionality

Hot-pluggable SFP+ footprint

Compliant with SFP+ MSA with LC connector

Single + 3.3V Power Supply

Commercial/Industrial case

operating temperature range: -10°C to 70°C /-40°C to 85°C

Low power dissipation:

1.5W power dissipation for Commercial temperature

1.6W power dissipation for Industrial temperature

Application of Optical Module

Gigabit Ethernet

Fiber Channel

Switch to Switch interface

Switched backplane applications

Router/Server interface

Other optical transmission systems

1490nm AOC DAC Cable 1550nm DOM Bidi 10G SFP+ 80km1490nm AOC DAC Cable 1550nm DOM Bidi 10G SFP+ 80km1490nm AOC DAC Cable 1550nm DOM Bidi 10G SFP+ 80km

The reason why Choose us

1. On time delivery

2. Factory outlet

3. Large product inventory with massive production line

4. Quality guarantee

5. One to one special after-sales service

FAQ

1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.

3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
