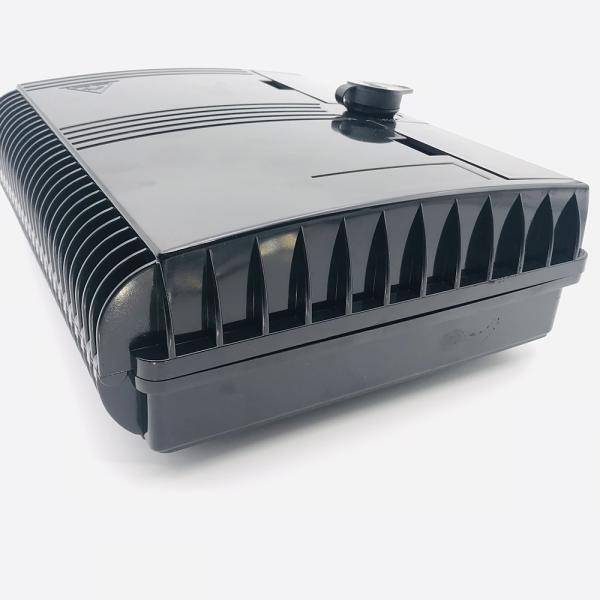

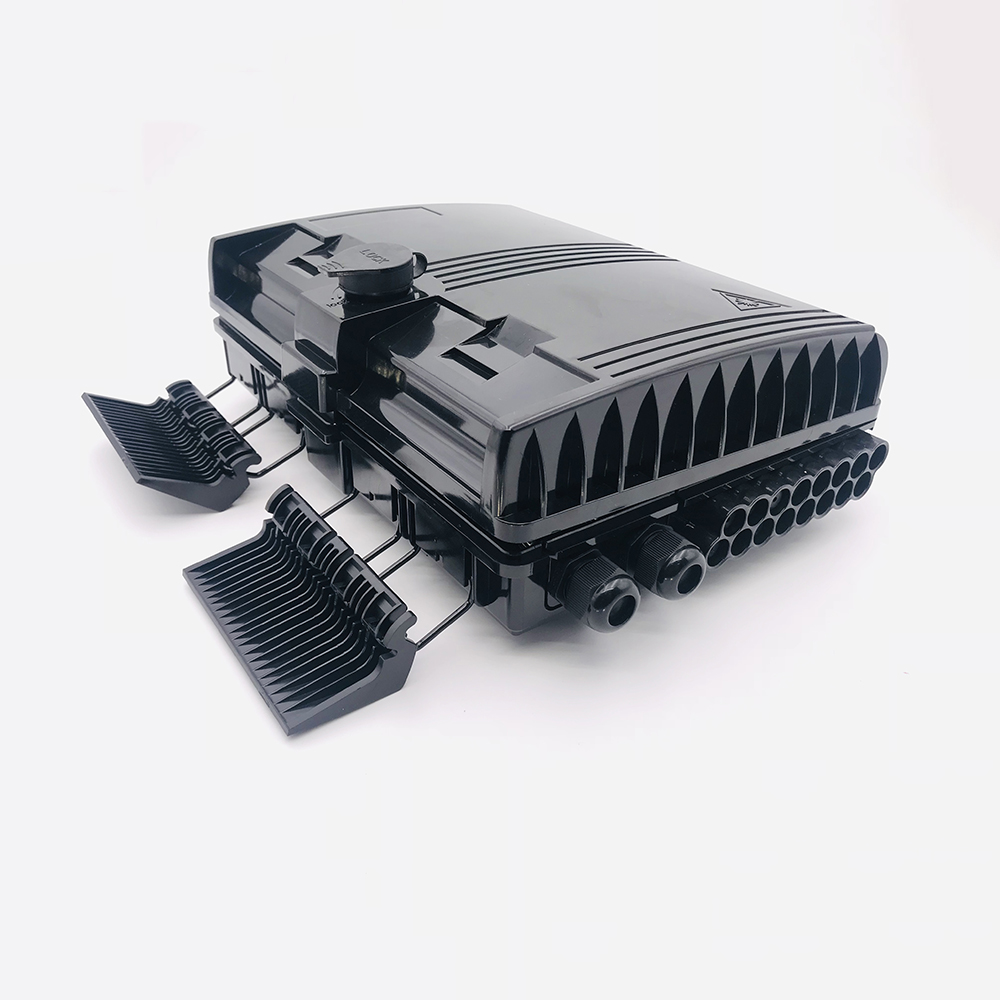

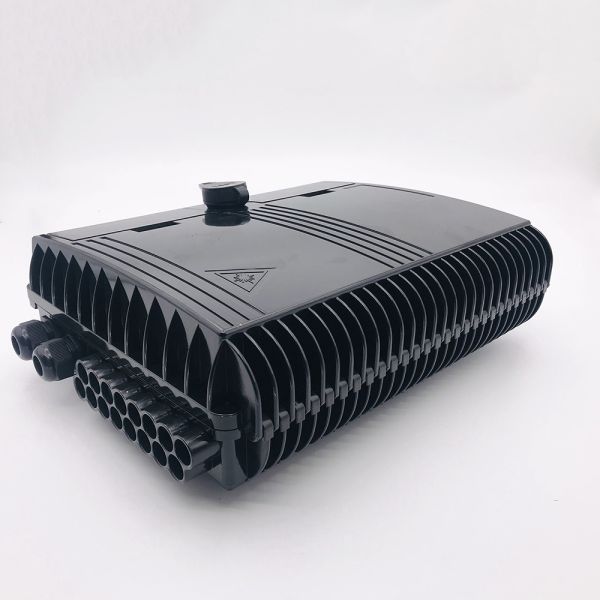

FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
Specifications
Brand Name :
CFOFC
Model Number :
16 Port Fiber Optic Distribution Box
Certification :
RHOS ISO900
Place of Origin :
Shenzhen
MOQ :
1000
Price :
$3-$30
Payment Terms :
L/C, T/T,Paypal, Western Union
Supply Ability :
10000pcs per week
Delivery Time :
5-8 work days
Application :
FTTH FTTB FTTX Network
Product name :
fiber optic distribution box
Type :
Outdoor/Indoor
Color :
Black
Warranty :
1~3 Years
Function :
optical fiber distribution
Description

FTTH IP65 Outdoor Box 16 Port Fiber Optic Distribution Terminal Box

Description of Optical Distribution Frame

Fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop
cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.

Specification of Optical Distribution Frame

Model
UT-FDB216A
Dimension
295mm*220mm*85mm
Color
White,Black or customized
Material
70%PC+30%ABS
Max ratio
1:16
Cable entry ports
In 2 Out 16
Diameter of Cable
Φ13mm
Assemmbling method
pole, wall-mounting
Protection level
IP65
Outter carton size
610*510*330mm
number of Packing
10 pcs/ctn
weight
16kg /ctn

Features of Optical Distribution Frame


Total enclosed structure.
Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
Clamping for feeder cable and drop cable, fiber splitting, splicing, fixation, storage, distribution...etc all in one.
Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.
Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses


Application of Optical Distribution Frame

Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications networks
Local Area Networks(LANs)

FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port
FTTH IP65 Outdoor Optical ODF Distribution Frame 16 Port

The reason why Choose us

1. On time delivery

2. Factory outlet

3. Large product inventory with massive production line

4. Quality guarantee

5. One to one special after-sales service

FAQ

1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.

3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
