2 Port FTTH Mini Fiber Optic Terminal Box 3m 5m 10m SC LC Wall Mount Faceplate
2 Port FTTH Mini Fiber Optic Terminal Box 3m 5m 10m SC LC Wall Mount Faceplate
2 Port FTTH Mini Fiber Optic Terminal Box 3m 5m 10m SC LC Wall Mount Faceplate
2 Port FTTH Mini Fiber Optic Terminal Box 3m 5m 10m SC LC Wall Mount Faceplate
2 Port FTTH Mini Fiber Optic Terminal Box 3m 5m 10m SC LC Wall Mount Faceplate
2 Port FTTH Mini Fiber Optic Terminal Box 3m 5m 10m SC LC Wall Mount Faceplate
Specifications
Brand Name :
CFOFC
Model Number :
2 Port FTTH Mini Fiber Optic Terminal Box sc
Certification :
ISO9001/ REACH / ROHS
Place of Origin :
Shenzhen, China
MOQ :
10Pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal, Western Union
Supply Ability :
30,000 pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Individual Pack , plus outer cartons
Product name :
2 Port FTTH Mini Fiber Optic Terminal Box
Application :
Telecommunications,FTTH FTTB FTTX Network,Network
Connector type :
SC LC
Color :
White
Cable lengh :
3m 5m 10m
Material :
ABS+PC
Description

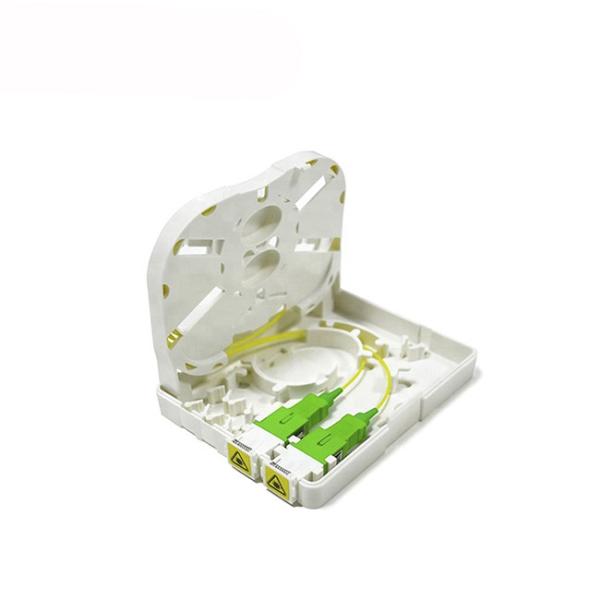

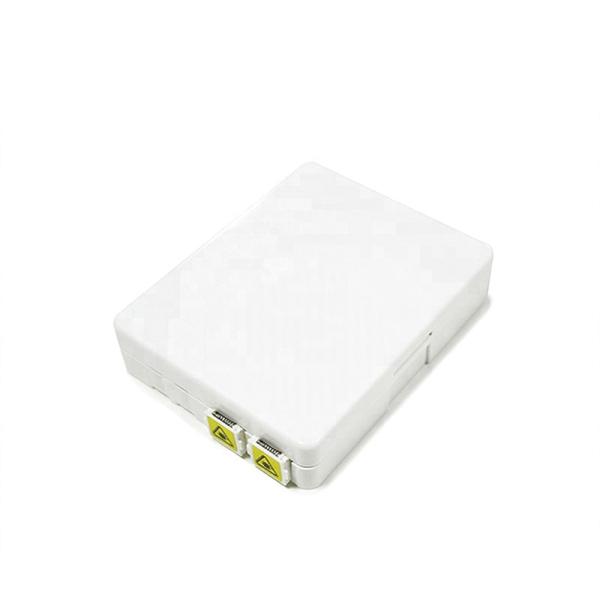

FTTH mini Fiber Optic Terminal Box 2 Port Wall Mount Faceplate

Description OF FTTH mini Fiber Optic Terminal Box

FTTH Terminal Box With a good dustproof design, fits 4 adapters with a lock structure for protection. White color.with function of mechanical splice or fusion. it is widely used in FTTH access network, CATV networks and LAN. Suitable for inside applications.The optical rosette acts as a termination point of the optical network, it use direct connectorization or fusion splice in a pre-connectorized pigtail. It can be installed on the wall, and adapt variety of optical connection styles LC/SC, maximum 2 cores.

Specifications OF FTTH mini Fiber Optic Terminal Box

Product Name

2 core fiber optic termination box

Shape

Total enclosed structure, be in nice shape

size

102mm(H)*80mm(W)*25mm(D)

Weight

70g

Material

ABS

Material characteristic

1.Construction-lightweight plastic offers strength

2.Nice shape
3.Wall mounting

Dimension (H*W*D)

115*80*25mm

Max.Capacity

2 core (single fiber) or mechanical splices

Cable type

Flat/ indoor round cable

Maximum input cable diameter

φ5.8mm

Outlet cable diameter

2*1.6mm or2*3.0mm flat cable

Adapter

2 SC

Color

white

Material

PC+ABS

Protection level

IP30

impact protection

IK01

Fiber type

single mode & multimode

Guarantee

12 months

Features OF FTTH mini Fiber Optic Terminal Box

ABS material used ensures the body strong and light.

Easy installations: Mount on wall or just put on the ground.

Adapter slots adopted – No screws needed for installing adapters.

Plug fiber with no need to open the shell, easily accessible fiber operation.

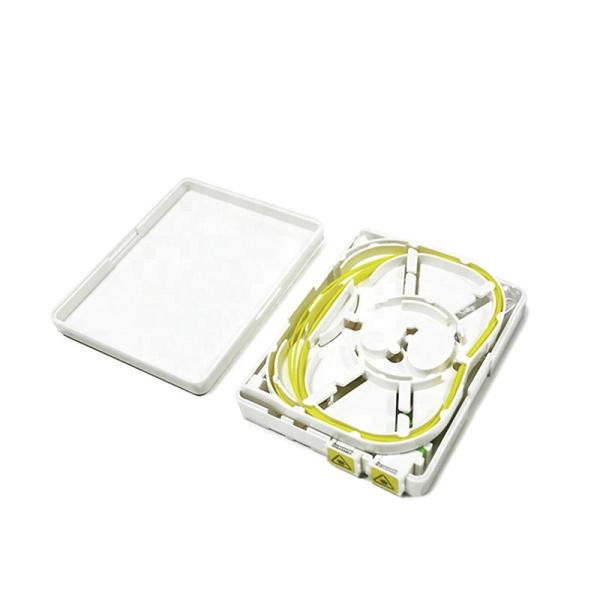

Double-layer design for easier installation and maintenances:

Upper layer for splicing.

Lower layer for distribution.

Splicing tray can be removed when needed or during the installation for the convenient operation and installations.

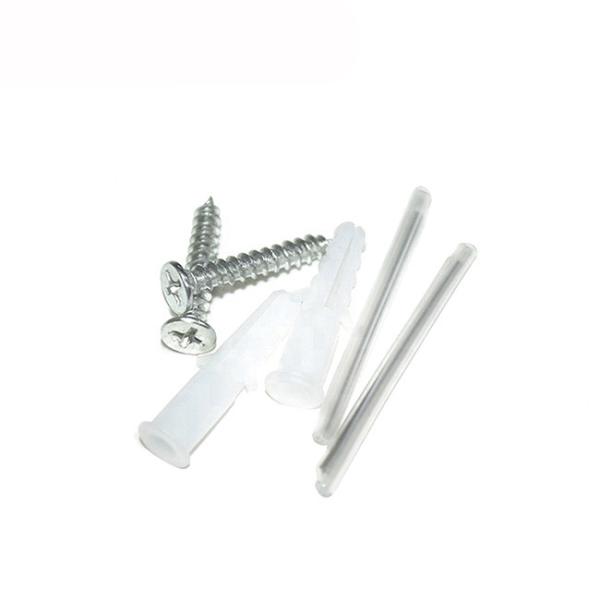

Cable fixing units(Tie-warps) provided for fixing the input optical cable.

Application OF FTTH mini Fiber Optic Terminal Box

Data communication networks

Local area Networks

Telecommunication networks

Widely used in FTTH access network

2 Port FTTH Mini Fiber Optic Terminal Box 3m 5m 10m SC LC Wall Mount Faceplate2 Port FTTH Mini Fiber Optic Terminal Box 3m 5m 10m SC LC Wall Mount Faceplate2 Port FTTH Mini Fiber Optic Terminal Box 3m 5m 10m SC LC Wall Mount Faceplate

The reason why Choose us:

1. Our shipping time is strictly controlled

2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer

3. Our company has rich export experience and is familiar with the customs policies of various countries

4. Large product inventory with massive production line

5. China's professional gas detection leader

FAQ

1. Are you factory direct?

as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

2. What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord

3. Product quality guarantee period?

20 years Guarantee for fiber optic cable

4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
