DOM AOC DAC Cable 1310nm 100G QSFP28 ZR4 80km SMF Optical Transceiver Module Duplex LC
DOM AOC DAC Cable 1310nm 100G QSFP28 ZR4 80km SMF Optical Transceiver Module Duplex LC
DOM AOC DAC Cable 1310nm 100G QSFP28 ZR4 80km SMF Optical Transceiver Module Duplex LC
DOM AOC DAC Cable 1310nm 100G QSFP28 ZR4 80km SMF Optical Transceiver Module Duplex LC
Specifications
Brand Name :
CFOFC
Model Number :
CFOFC-100G QSFP28 ZR4 80KM
Certification :
ISO9001/ REACH / ROHS
Place of Origin :
Shenzhen, China
MOQ :
10Pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal, Western Union
Supply Ability :
3,000,000 pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Individual Pack , plus outer cartons
Product name :
100G QSFP28 ZR4 80KM
Application :
Telecommunications,FTTH FTTB FTTX Network,Network
Connector type :
LC
Data Rate :
100G
Transmission Distance :
80km
Wavelengh :
1310nm
Description

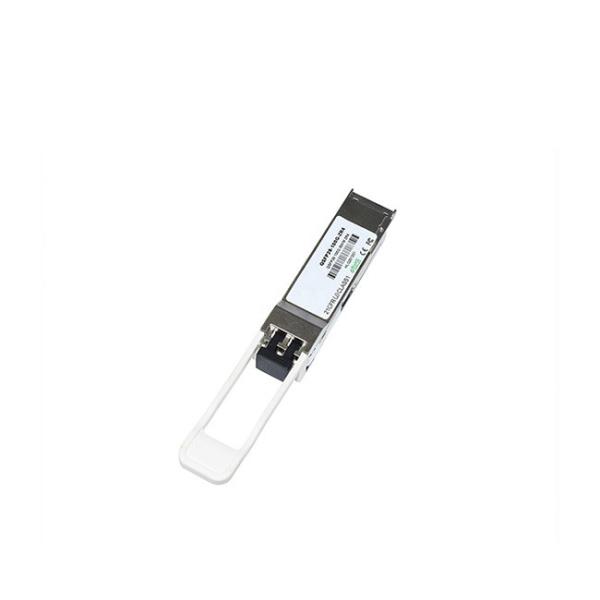

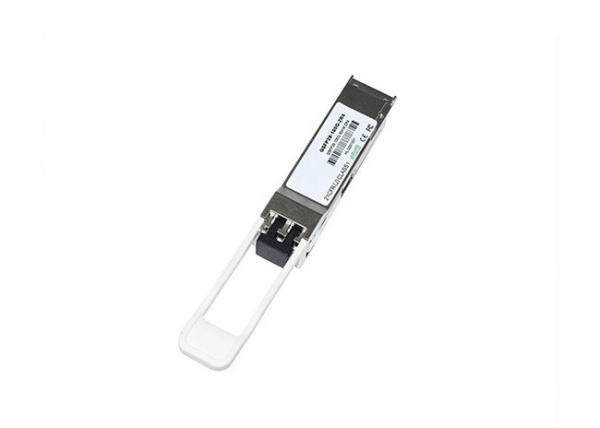

100Gbase QSFP28 ZR4 80km DOM 1310nm SMF Optical Transceiver Module Duplex LC

Description of Optical Module

100G QSFP28 ER4 is designed for 80km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial interface. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

Specification of Optical Module

Items Data Rate(bps) Wavelength(nm) Fiber type Distance Optical Tx Power(dBm) Rx Sens.(dBm) Temp.(℃)
QSFP28 SR4 100G 850 8x MMF OM3 70 m VCSEL -6~2.4 -10.3~2.4 0~70
OM4 100 m
QSFP28 IR4 PSM 100G 1310 8x SMF 2 km DML/PIN -8.4~2.4 -11 0~70
QSFP28 CWDM4 100G CWDM 2x SMF 2 km DML/PIN -6.5~2.5 -10~2.5 0~70
QSFP28 IR4 100G LWDM 2x SMF 2 km DML/PIN -6.5~2.5 -10~2.5 0~70
LR4 100G LWDM 2x SMF 10 km DML/PIN -4.3~4.5 -10.6~4.5 0~70
ELR4+ 100G LWDM 2x SMF 20 km DML/PIN -2.5~4.5 -14.5~4.5 0~70
ER4* 100G LWDM 2x SMF 30~40 km EML/APD -2.5~2.9 -20.5~-3.5

0~70

Features of Optical Module

QSFP28 MSA compliant

Hot pluggable 38 pin electrical interface

4 LAN-WDM lanes MUX/DEMUX design

4x25G electrical interface

Maximum power consumption 6.5W

LC duplex connector

Supports 103.125Gb/s aggregate bit rate

Up to 80km transmission on single mode fiber

Operating case temperature: 0℃ to 70℃

Single 3.3V power supply

RoHS 2.0 compliant

Application of Optical Module

100GBASE-ZR4 100G Ethernet

Telecom networking

Infiniband QDR and DDR interconnects

100G Datacom connections

DOM AOC DAC Cable 1310nm 100G QSFP28 ZR4 80km SMF Optical Transceiver Module Duplex LCDOM AOC DAC Cable 1310nm 100G QSFP28 ZR4 80km SMF Optical Transceiver Module Duplex LCDOM AOC DAC Cable 1310nm 100G QSFP28 ZR4 80km SMF Optical Transceiver Module Duplex LC
The reason why Choose us
1. On time delivery
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ

1. How can I get your catalogue and price list?
Please let us know your email or contact us from website directly for our catalogue and price list.

2. Can you offer free samples?
Yes. we can provide free sample, but you should bear the shipping cost. It will return after you place the order from us.

3. How much will the shipping cost be?
It depends on the weight, volume and mode of transportation of your goods. We will choose the most suitable method according to your requirements.

4. Can you supply OEM products under our brand?
Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
