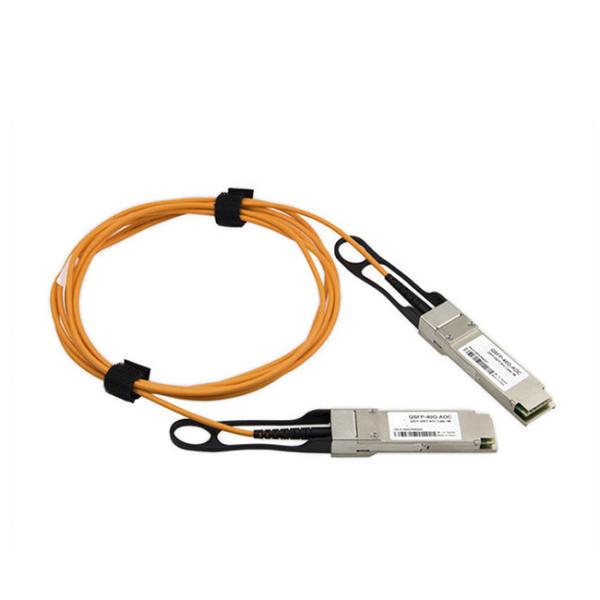

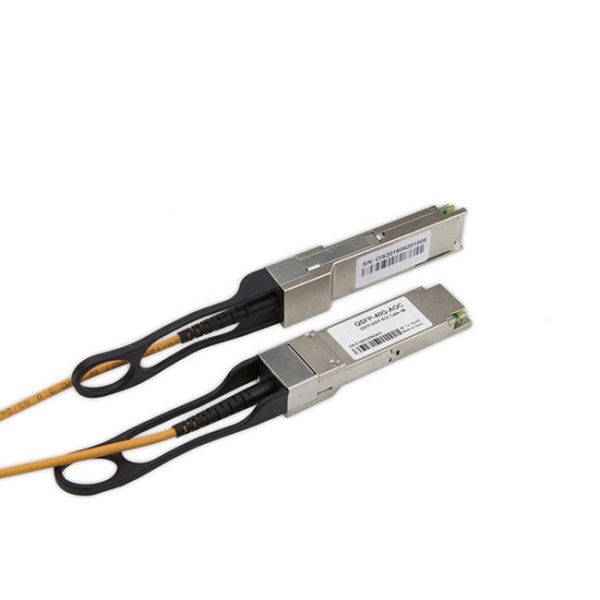

40G QSFP+ To 4x SFP+ AOC DAC Cable Optical Breakout Cable Multimode Fiber
40G QSFP+ To 4x SFP+ AOC DAC Cable Optical Breakout Cable Multimode Fiber
Specifications
Brand Name :
CFOFC
Model Number :
CFOFC- SFP Cable
Certification :
ISO9001/ REACH / ROHS
Place of Origin :
Shenzhen, China
MOQ :
10Pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal, Western Union
Supply Ability :
3,000,000 pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Individual Pack , plus outer cartons
Product name :
SFP+ to SFP+ Breakout Cable
Application :
Telecommunications,FTTH FTTB FTTX Network,Network
Connector type :
QSFP+ to SFP+
Fiber :
singlemode multimode
data rate :
40G
Length :
1 2 3 4 5 10m
Description

40G QSFP+ to 4x SFP+ Optical Breakout Cable Multimode Fiber QSFP+ AOC Cable

Description of Active Optical Cable

QSFP to QSFP Active Optical Cables are a high performance, low power consumption, long reach interconnect solution supporting InfiniBand QDR/DDR/SDR,1.25G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.This QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. And it is one kind of parallel transceiver which provides increased port density and total system cost savings.

Specification of Active Optical Cable

Model No.
Description
Unit
Compatibility
QSFP-AOC-1M
40G QSFP to QSFP AOC 1M, OM2/OM3
Piece
All brands
QSFP-AOC-2M
40G QSFP to QSFP AOC 2M, OM2/OM3
Piece
All brands
QSFP-AOC-3M
40G QSFP to QSFP AOC 3M, OM2/OM3
Piece
All brands
QSFP-AOC-5M
40G QSFP to QSFP AOC 5M, OM2/OM3
Piece
All brands
QSFP-AOC-7M
40G QSFP to QSFP AOC 7M, OM2/OM3
Piece
All brands
QSFP-AOC-10M
40G QSFP to QSFP AOC 10M, OM2/OM3
Piece
All brands
QSFP-AOC-15M
40G QSFP to QSFP AOC 15M, OM2/OM3
Piece
All brands
QSFP-AOC-20M
40G QSFP to QSFP AOC 20M, OM2/OM3
Piece
All brands
Customized Length, OM2/OM3

Features of Active Optical Cable

Hot-pluggable QSFP+ form-factor connectors

4 channels full-duplex active optical cables

4x 850nm VCSEL array and PIN photo-detector array

Differential AC-coupled high-speed data interface

Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4

Data rate up to 41.2Gbps

Length up to 300m over OM3 MMF

Power consumption < 1.5W per end

Operating case temperature range from 0°C to 70°C

Application of Active Optical Cable

40GBASE-SR4 Ethernet

InfiniBand 4xSDR/DDR/QDR

Data center network

Fiber Channel

InfiniBand FDR/EDR 100Gbs

Ethernet

40G QSFP+ To 4x SFP+ AOC DAC Cable Optical Breakout Cable Multimode Fiber40G QSFP+ To 4x SFP+ AOC DAC Cable Optical Breakout Cable Multimode Fiber40G QSFP+ To 4x SFP+ AOC DAC Cable Optical Breakout Cable Multimode Fiber

The reason why Choose us

1. On time delivery
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Quality guarantee
FAQ

1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.

3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
