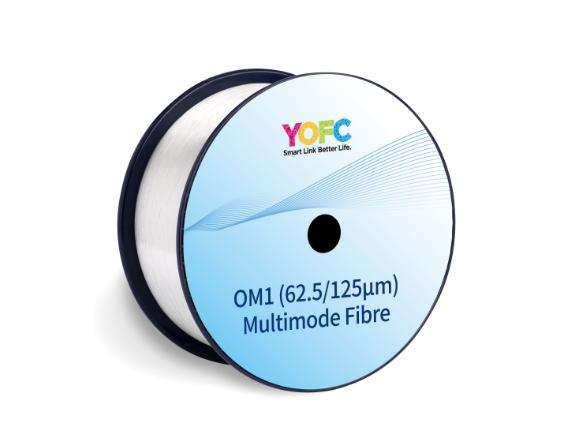

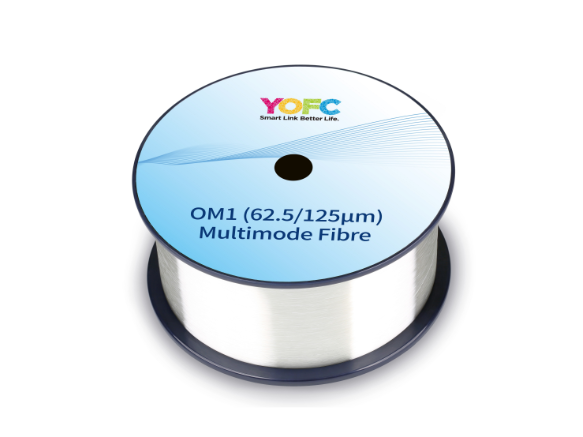

YOFC Multimode Communication Optical Fibre OM1 62.5/125μM For LAN
YOFC Multimode Communication Optical Fibre OM1 62.5/125μM For LAN
YOFC Multimode Communication Optical Fibre OM1 62.5/125μM For LAN
YOFC Multimode Communication Optical Fibre OM1 62.5/125μM For LAN
Specifications
Brand Name :
YOFC
Model Number :
CFOFC-YOFC Optical Fibre
Certification :
RoHS, REACH, ISO9001
Place of Origin :
Guangdong, China
MOQ :
A case or four reel
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000KM per Month
Delivery Time :
5-8 work days
Packaging Details :
A case of four Reel；50.4KM per Reel， case packing dimension:703*477*340mm
Application :
Local area networks (LAN)
Fiber type :
OM1
Color :
NO Color
Core Diameter :
62.5±2.5[μm]
Cladding Diameter :
125.0±1.0 [μm]
Zero Dispersion Wavelength，λ0 :
1320~1365 [nm]
Description

YOFC OM1 (62.5/125μm) Multimode Communication Optical Fibre

Description of Multimode Optical Fibre

YOFC OM1(62.5/125μm) Multimode Fibre complies with or exceeds ISO/IEC 11801-1 OM1 specification, IEC 60793-2-10 A1-OM1 specification, and TIA-492AAAF A1-OM1 specification.

Specifications of Multimode Optical Fibre

Characteristics

Conditions

Specified values

Units
Geometry Characteristics
Core Diameter -- 62.5±2.5 [μm]
Core Non-Circularity -- ≤5.0 [%]
Cladding Diameter -- 125.0±1.0 [μm]
Cladding Non-Circularity -- ≤1.0 [%]
Coating Diameter -- 245±7 [μm]
Coating/Cladding Concentricity Error -- ≤10.0 [μm]
Coating Non-Circularity -- ≤6.0 [%]
Core/Cladding Concentricity Error -- ≤1.5 [μm]
Delivery Length -- up to 17.6 [km/reel]
Optical Characteristics
Attenuation 850nm ≤2.7 [dB/km]
1300nm ≤0.6 [dB/km]
Overfilled Modal Bandwidth 850nm ≥200 [MHz·km]
1300nm ≥500 [MHz·km]
Numerical Aperture -- 0.275±0.015 --
Group Refractive Index 850nm 1.496 --
1300nm 1.491 --
Zero Dispersion Wavelength,λ0 -- 1320~1365 [nm]
Zero Dispersion Slope,S0 1320nm≤ λ0 ≤1348nm ≤0.11 [ps/(nm2·km)]
1348nm≤ λ0 ≤1365nm ≤0.001(1458-λ0 ) [ps/(nm2·km)]
Macrobending Loss -- -- --
100 Turns @ 37.5 mm Radius 850nm ≤0.50 [dB]
1300nm ≤0.50 [dB]
Backscatter Characteristics 1300nm
Step(Mean of Bidirectional Measurement) -- ≤0.10 [dB]
Irregularities Over Fibre Length and Point Discontinuity -- ≤0.10 [dB]
Attenuation Uniformity -- ≤0.10 [dB/km]
Environmental Characteristics 850nm & 1300nm
Temperature Cycling -60℃ to 85℃ ≤0.10 [dB/km]
Temperature-Humidity Cycling -10℃ to 85℃,4% to 98% RH ≤0.10 [dB/km]
Water Immersion 23℃, 30 days ≤0.10 [dB/km]
Dry Heat 85℃,30 days ≤0.10 [dB/km]
Damp Heat 85℃, 85% RH,30 days ≤0.10 [dB/km]
Mechanical Specification
Proof Test -- ≥9.0 [N]
-- ≥1.0 [%]
-- ≥100 [kpsi]
Coating Strip Force typical average force 1.5 [N]
peak force ≥1.3,≤8.9 [N]
Dynamic Stress Corrosion Susceptibility Parameter(nd, typical) -- 20 --

Features of Multimode Optical Fibre


Superior geometry uniformity
Low attenuation
High bandwidth at wavelengths of 850nm and 1300nm
Manufactured by PCVD process
Extremely refined refractive index profile

Applications of Multimode Optical Fibre

Local area networks (LAN)
Video, voice and data services
Gigabit Ethernet using laser or LED light sources

YOFC Multimode Communication Optical Fibre OM1 62.5/125μM For LAN

YOFC Multimode Communication Optical Fibre OM1 62.5/125μM For LAN

The reason why Choose us

1. On time delivery
2. Factory outlet
3. Customization

4. Quality guarantee
5. One to one special after-sales service

FAQ

1. How much will the shipping cost be?
It depends on the weight, volume and mode of transportation of your goods. We will choose the most suitable method according to your requirements.


2. Can you supply OEM products under our brand?
Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.


3. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.


4. How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.


5. What's your payment terms?

We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
