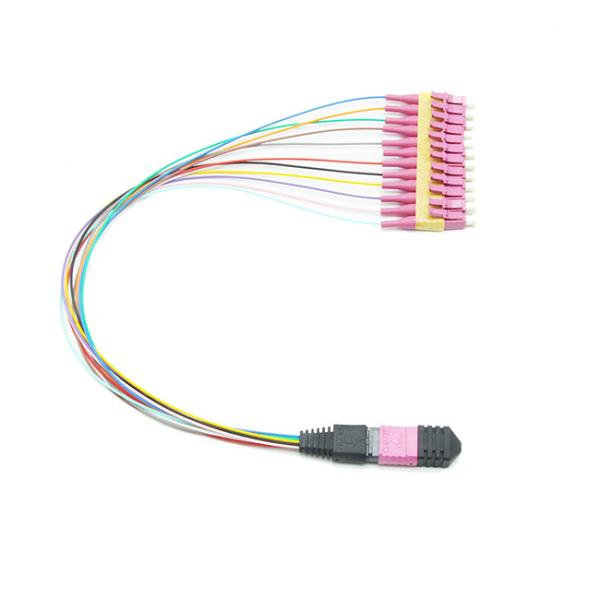

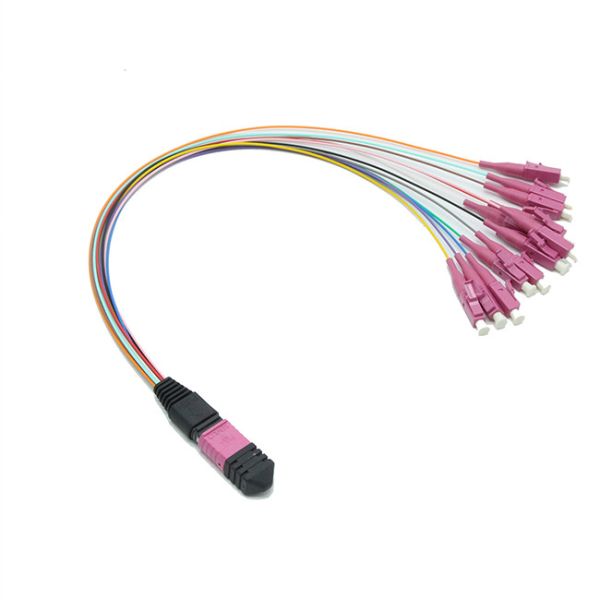

0.9mm Fiber Optic Patch Cord OM4 12F MPO Male To LC Fan Out Cable
0.9mm Fiber Optic Patch Cord OM4 12F MPO Male To LC Fan Out Cable
0.9mm Fiber Optic Patch Cord OM4 12F MPO Male To LC Fan Out Cable
0.9mm Fiber Optic Patch Cord OM4 12F MPO Male To LC Fan Out Cable
0.9mm Fiber Optic Patch Cord OM4 12F MPO Male To LC Fan Out Cable
0.9mm Fiber Optic Patch Cord OM4 12F MPO Male To LC Fan Out Cable
0.9mm Fiber Optic Patch Cord OM4 12F MPO Male To LC Fan Out Cable
0.9mm Fiber Optic Patch Cord OM4 12F MPO Male To LC Fan Out Cable
Specifications
Brand Name :
CFOFC
Model Number :
12F Mpo Male To LC Fanout 0.9Mm Cable
Certification :
Rohs ISO 9001
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
10000pcs per week
Delivery Time :
5-8 work days
Product name :
12F Mpo Male To LC Fanout 0.9Mm Cable
Color :
Red blue yellow green
Application :
FTTH FTTB FTTX Network
Connector type :
MTP MPO LC
Fiber type :
MM SM
Cable diameter :
0.9mm
Description

Optical Patch Cord MPO OS2 Singlemode LSZH Jacket Fanout 8 cores

Description of MPO MTP Patch Cord

12F MTP Fiber Patch cable/trunk cable is terminated with MTP connector on both ends. MTP Patch cable/trunk cables connect MTP modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24,48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk,just installing a new cassette with the new connector style on the cross-connect side of the patch panel.

Specification of MPO MTP Patch Cord

Item (IEC-61300-3-30)
 Minimum Maximum
Radius of curvature (mm) ROC-X(ABS) 2000
ROC-Y(ABS)
50mm
Angle
 Angle-X -0.2° -0.2°
Angle-Y
 APC 7.85° 8.15°
PC -0.2° -0.2°
Fiber height (nm) 1000nm 3500nm
Max.DH.All Fiber:
 -300nm 300nm
DH.Adj: -300nm 300nm
DH.Ave Fiber: -300nm 300nm
Core Dip:
 SM N/A N/A
MM -200nm 300nm

Fiber Type OS2, OM1, OM2, OM3, OM4 OM5
Fiber Count 12,24,48,72,96,144 cores
Fiber Attenuation dB (OS2) ≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm)
Fiber Attenuation dB (OM1) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm)
Fiber Attenuation dB (OM2) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM3) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM4) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Min.Bandwidth:Overfilled Launch[Mhz-km] OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm)≥500(1300nm)OM4≥3500(850nm) ≥500(1300nm)
Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km]
OM3 ≥2000(850nm) OM4 ≥4700(850nm)
Outer diameter 12fiber:3.0 or 5.5mm ; 24fiber:3.0 or 5.5mm
Outer jacket Colour OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple or Aqua)
Outer jacket material LSZH,OFNP,OFNR
Tensile strength >500N
Operating Temperature -40 ~ +85°C

Features of MPO MTP Patch Cord

1.High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2.3D interferometer provides verification of MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

Application of MPO MTP Patch Cord

*Telecommunication networks, Gigabit Ethernet

*CATV, Video, Multimedia

*Active device termination, Premise installations

*Industrial, Military

*connector dimensions-7.75mm height x 61 mm depth
*Number of fibers - 12
*jacket material - pvc (OFENR riser-rated)
*Jacket OD - 3.0mm
*Installation Tensile Load -100N (445 ibs)
*Long-term Tensile load -50N(222lbs)
*Installation Minimum bend Radius -4.5cm (1.8 in)
*Long-term Minimum bend Radius -3.0cm (1.2 in)
*Attenuation at 850 nm -3.5dB/km
*Attenuation at 1300 nm -1.0dB/km
*Maximum connector Loss -0.50 db
*Typical Return LOss -22 dB
*Operationg Temperature --20℃ to +70℃

0.9mm Fiber Optic Patch Cord OM4 12F MPO Male To LC Fan Out Cable0.9mm Fiber Optic Patch Cord OM4 12F MPO Male To LC Fan Out Cable0.9mm Fiber Optic Patch Cord OM4 12F MPO Male To LC Fan Out Cable

The reason why Choose us:


1. On time delivery

2. Factory outlet
3. Customization

4. Large product inventory with massive production line
5. Quality guarantee

FAQ


1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.


2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord


3. Product quality guarantee period?
20 years Guarantee for fiber optic cable


4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
