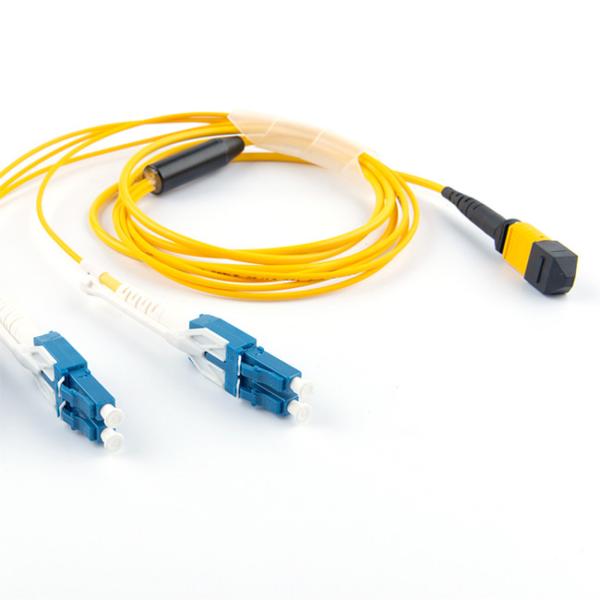

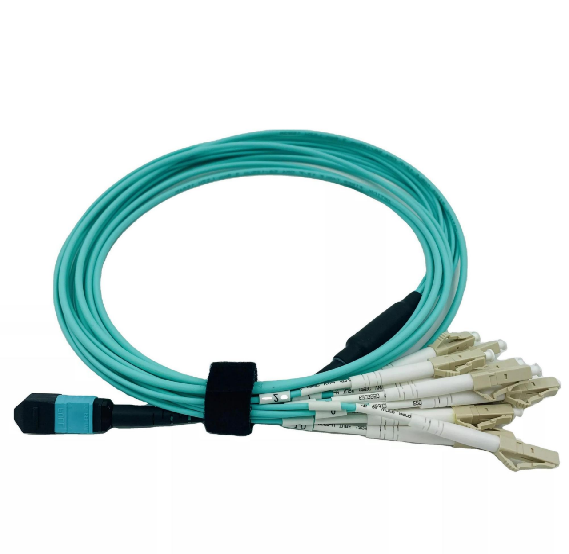

FTTH MPO MTP Patch Cord Female To LC 12 Fibers Fan Out Fiber Optic Cable
FTTH MPO MTP Patch Cord Female To LC 12 Fibers Fan Out Fiber Optic Cable
FTTH MPO MTP Patch Cord Female To LC 12 Fibers Fan Out Fiber Optic Cable
FTTH MPO MTP Patch Cord Female To LC 12 Fibers Fan Out Fiber Optic Cable
FTTH MPO MTP Patch Cord Female To LC 12 Fibers Fan Out Fiber Optic Cable
FTTH MPO MTP Patch Cord Female To LC 12 Fibers Fan Out Fiber Optic Cable
Specifications
Brand Name :
CFOFC
Model Number :
MPO/MTP Patch Cord Female To LC 12
Certification :
Rohs ISO 9001
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
10000pcs per week
Delivery Time :
5-8 work days
Product name :
MPO/MTP Patch Cord Female To LC 12
Color :
Red blue yellow green
Application :
FTTH FTTB FTTX Network
Connector type :
MTP MPO lc
Fiber type :
MM SM
Cable diameter :
2.0mm or 3.0mm or optional
Description

Optical Patch Cord MPO OS2 Singlemode LSZH Jacket Fanout 8 cores

Description of MPO MTP Patch Cord

MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With Senko MPO connectors and Corning Clearcurve fiber, it is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.

Specification of MPO MTP Patch Cord

Product Name MPO/Female to LC 12 Fibers Fiber Optic Fanout Cable
Model Number JW-85
Type Fiber Optic Fanout Cable
Place of Origin China
Single-Mode Fiber SM/MM
Brand name CFOFC
Connector type MPO - LC
Ferrule Type SM 125μm MM 127μm
Operating temperature -40℃~75℃
Application
FTTH,FTTB,FTTx,Data center,CATV
Fiber Optic Length 1m/2m/3m/customized length
MOQ 10pcs

Fiber Type OS2, OM1, OM2, OM3, OM4 OM5
Fiber Count 12,24,48,72,96,144 cores
Fiber Attenuation dB (OS2) ≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm)
Fiber Attenuation dB (OM1) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm)
Fiber Attenuation dB (OM2) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM3) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM4) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Min.Bandwidth:Overfilled Launch[Mhz-km] OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm)≥500(1300nm)OM4≥3500(850nm) ≥500(1300nm)
Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km] OM3 ≥2000(850nm) OM4 ≥4700(850nm)
Outer diameter 12fiber:3.0 or 5.5mm ; 24fiber:3.0 or 5.5mm
Outer jacket Colour OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple or Aqua)
Outer jacket material LSZH,OFNP,OFNR
Tensile strength >500N
Operating Temperature -40 ~ +85°C

Features of MPO MTP Patch Cord

1.High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2.3D interferometer provides verification of MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

Application of MPO MTP Patch Cord

Telecommunication networks, Gigabit Ethernet

CATV, Video, Multimedia

Active device termination, Premise installations

Industrial, Military

connector dimensions-7.75mm height x 61 mm depth
Number of fibers - 12
Jacket material - pvc (OFENR riser-rated)
Jacket OD - 3.0mm
Installation Tensile Load -100N (445 ibs)
Long-term Tensile load -50N(222lbs)
Installation Minimum bend Radius -4.5cm (1.8 in)
Long-term Minimum bend Radius -3.0cm (1.2 in)
Attenuation at 850 nm -3.5dB/km
Attenuation at 1300 nm -1.0dB/km
Maximum connector Loss -0.50 db
Typical Return LOss -22 dB
Operationg Temperature --20℃ to +70℃

FTTH MPO MTP Patch Cord Female To LC 12 Fibers Fan Out Fiber Optic Cable

FTTH MPO MTP Patch Cord Female To LC 12 Fibers Fan Out Fiber Optic Cable

The reason why Choose us:


1. On time delivery

2. Factory outlet
3. Customization

4. Large product inventory with massive production line
5. Quality guarantee

FAQ

1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.


2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord


3. Product quality guarantee period?
20 years Guarantee for fiber optic cable


4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
