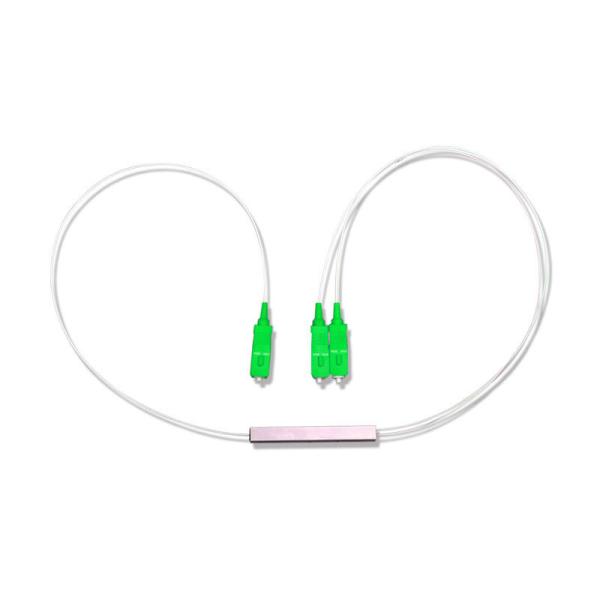

Bare 1x2 PLC Splitter 250um SC APC Connector For FTTH FTTB FTTX Network
Bare 1x2 PLC Splitter 250um SC APC Connector For FTTH FTTB FTTX Network
Bare 1x2 PLC Splitter 250um SC APC Connector For FTTH FTTB FTTX Network
Bare 1x2 PLC Splitter 250um SC APC Connector For FTTH FTTB FTTX Network
Bare 1x2 PLC Splitter 250um SC APC Connector For FTTH FTTB FTTX Network
Bare 1x2 PLC Splitter 250um SC APC Connector For FTTH FTTB FTTX Network
Bare 1x2 PLC Splitter 250um SC APC Connector For FTTH FTTB FTTX Network
Bare 1x2 PLC Splitter 250um SC APC Connector For FTTH FTTB FTTX Network
Specifications
Brand Name :
CFOFC
Model Number :
1x2 Bare PLC Splitter 250um
Certification :
Rohs ISO 9001
Place of Origin :
Shenzhen
MOQ :
1000
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
100000pcs per week
Delivery Time :
5-8 work days
Packaging Details :
1PC/polybag, 55 x 45 x 20 ( Millimeters)
Application :
1x2 Bare PLC Splitter 250um
Product name :
1*2 PLC splitter
Connector :
SC/APC/UPC
Material :
ABS+PC
Connector type :
SC
Splitter :
splitter
Description
FTTH Optical Splitter Box 1x128 Fiber optical PLC Splitter LC / APC
Description of PLC Splitter


Fiber optic LC splitter is an optical power device based on quartz plate planar of light wave technology, which is widely used in local side or termination of Passive Optical Network (EPON, BPON, GPON etc.) for splitting of optical signal. It offers superior optical performance, high stability and high reliability; meet various application requirements in different environments.

Specification of PLC Splitter
Parameters
Parameters1×21×41×81×161×321×641×128
Operating Wavelength(nm)1260~1650
Fiber TypeG657A1 or customer specified
Insertion Loss (dB)(P/S Grade)3.8/4.07.1/7.310.2/10.513.5/13.716.5/16.920.5/21.023.8/24.2
Loss Uniformit(dB)0.40.60.81.21.522.5
Polarization Dependent Loss(dB)0.20.20.20.250.30.350.4
Return Loss(dB)(P/S Grade)55/5055/5055/5055/5055/5055/5055/50
Directivity(dB)55555555555555
Wavelength Dependent Loss(dB)0.30.30.30.50.50.50.5
Temperature Stability (-40~85℃)(dB)0.40.40.40.50.50.50.5
Operating Temperature(℃)-40~+85
Storage Temperature(℃)-40~+85
Device Dimension(mm)40×4×440×4×440×4×450×7×450×7×460×12×4N/A
Module Dimension(mm)100×80×10120×80×18141×115×18
Mini-Module Dimension(mm)50×7×460×12×480×20×6100×40×6N/A
Features of PLC Splitter


Excellent Environmental Stability
Excellent Mechanical
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Stability Telcordia GR-1221 and GR-1209

Application of PLC Splitter


FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems

Bare 1x2 PLC Splitter 250um SC APC Connector For FTTH FTTB FTTX NetworkBare 1x2 PLC Splitter 250um SC APC Connector For FTTH FTTB FTTX NetworkBare 1x2 PLC Splitter 250um SC APC Connector For FTTH FTTB FTTX Network

The reason why Choose us
1. On time delivery

2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
