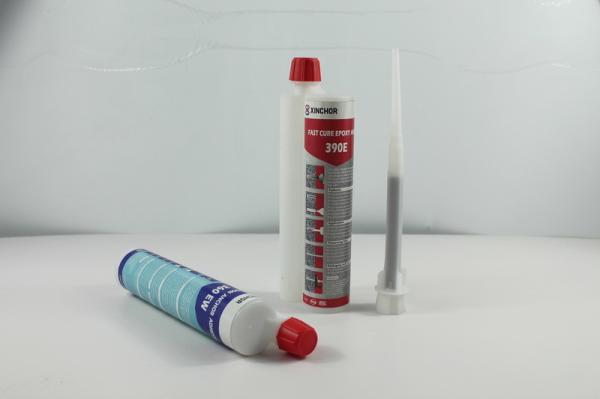

Dia 10-32 Rebar Size Pure Chemical Anchor Adhesive 55KN Tensile Strength
Dia 10-32 Rebar Size Pure Chemical Anchor Adhesive 55KN Tensile Strength
Dia 10-32 Rebar Size Pure Chemical Anchor Adhesive 55KN Tensile Strength
Dia 10-32 Rebar Size Pure Chemical Anchor Adhesive 55KN Tensile Strength
Specifications
Brand Name :
XINCHOR
Model Number :
FixingChor 139
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
L/C, T/T
Supply Ability :
100,000pcs per month
Delivery Time :
30 days
Packaging Details :
individual in plastic cartridges, 20pcs/ctn,
Price :
Negotiable
Application :
structural strengthening
Tensile Shear Strength :
above 10Mpa
Mix ratio :
3:1
Tensile Strength :
55KN
Resin type :
Modified Pure Epoxy
T-peeling strengt :
less than 25mm
Capacity :
390ml
Rebar size :
Dia. 10-32
Description

390ml 3:1 Modified Pure Epoxy Chemcial Anchor Adhesive For Structural Strengthening
Chemical anchor adhesive, epoxy injection mortar, Chemical fixing glue,
Chemical anchoring system used for anchoring and rebar connections in concrete.

Item #: FixingChor110
Capacity: 1000ml
Materials: Epoxy
Mixing Ratio: 3:1


Product Description:

390ml 3:1 Modified Pure Epoxy Chemcial Anchor Adhesive For Structural Strengthening is

a two component, high tensile strength, modified pure epoxy chemcial anchor adhesive.

strong fixing system with exceptionally high chemcial resistance.Applied in one single action

this resin will produce a high performance,

Suitable for

Non-cracked concrete

Reinforcement bars

For fixing of:

Consoles

High-racks

Machines

Staircases

Wooden constructions

Reinforcement bars

Steel constructions

Pass GB50728-2011

Humidity resistance testing

Freeze-thaw resistance Testing

Resistance to fatigue stress Testing

Resistance of long term stress testing etc .

Can be used in projects with Design Period of 50 years.

Testing Items

Condition

Index

Adhesive Performance (According to China National Standard GB50728-2011)

Splitting Tensile Strength (MPa)

Under (23±2)℃,(50±5)%RH, tested by loading speed of 2mm/min

≥8.5

Flexural Strength (MPa)

≥50

(no fragment damage)

Compressive Strength (MPa)

≥60

Bonding Capacity (According to China National Standard GB50728-2011)

Steel-Steel Tensile Shear Strength (MPa)

(23±2)℃,(50±5)%RH

≥10

Bonding strength of Ribbed steel bar (or screw) with concrete under constrain drawing condition

(23±2)℃ (50±5)%RH

C30,Ф25,L=150mm

≥11

C60,Ф25,L=150mm

≥17

Steel-Steel T-peeling strength (mm)

(23±2)℃,(50±5)%RH

≤25

Non-volatile content

(105±2)℃,(180±5)min

≥99%

Ageing resistance to heat and humidity 90d

Reduction rate of tensile strength

Under normal room temperature

≤12%

(According to China National Standard JGJ145-2013)

Tensile Strength (after high temperature welding)

Dia12 Grade II steel, C30 concrete

Hole dia.16mm, Depth: 150mm

55.1N, 57.0N, 54.8N

High bonding strength,

Can be applied in severe environment

With molecular structure combining the Hydrophilic group and hydrophobic group

Can operate and keep high performance in environment of moisture, hot and still

works even if the surface of hole is smooth.

Good elongation property

No breaking under high stressing.

repristinate after stressing.

Our Product Lines:

- Carbon Fiber Reinforcement System:

XQ-CFC 300gsm, 200gsm fabric and adhesives XQ-XW

- Steel Bonding System:

XQ-GZ Epoxy grouting adhesives,

XQ-JGN Plate bonding Adhesives

- Crack Repairing System:

XQ-GF Crack grouting adhesives,

XQ-FF crack seal adhesives

- Chemical Anchoring

390ml(3:1), 585ml(3:1), 650ml(1:1),

Dia 10-32 Rebar Size Pure Chemical Anchor Adhesive 55KN Tensile Strength
