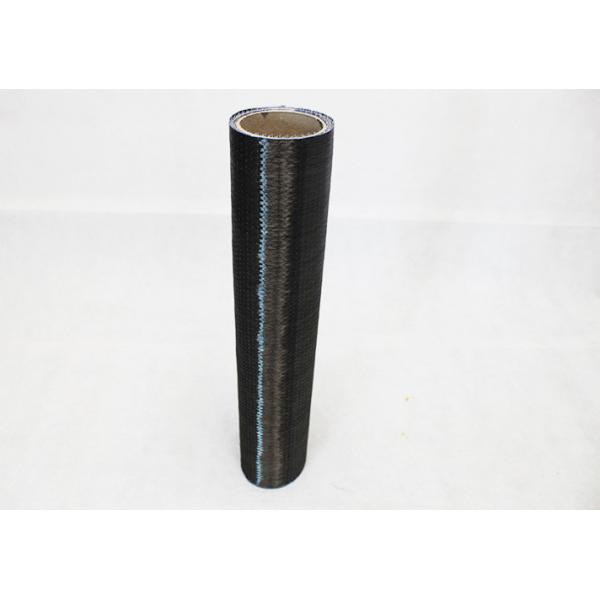

Pipe strengthening Carbon fiber CFRP fabric with CE approved

Weight: 300gsm

Density: 1.8g/cm³

Packing: 100 meters/roll

Width: 100mm, 200mm, 300mm, 500mm or to be customized.

Storage Condition:Store dry at 40°-95° F(4° -35°)

Shelf Life: 50 years

Color:Black

Carbon Fiber Type: 0° (unidirectional)

Pipe strengthening Carbon fiber CFRP fabric with CE approved

Carbon Fiber-reinforced polymer (CFRP fabric) systems are simply defined as high­strength and lightweight reinforcements created by combining carbon (CFRP fabric ) with a polymer material (epoxy resin). The performance characteristics of CFRP fabric strengthening system have become increasingly popular in construction and retrofit applications, specifically in aging, damaged, deteriorating or overloaded concrete structures.

Carbon Fiber Reinforced Polymers for Structural Strengthening. These fabrics are applied onto the surface of existing structural members in buildings, bridges and other structures. The result is an externally bonded CFRP (carbon fiber reinforced polymer) reinforcement system engineered to increase the structural performance

The most common CFRP fabric systems for concrete strengthening applications are carbon fiber based (CFRP fabric). Carbon has superior mechanical properties and higher tensile strength, stiffness, and durability compared with glass fiber based systems. The use of prefabricated CFRP bars and plates is typically limited to straight or slightly curved surfaces; for example, the top side or underside of slabs and beams. Prefabricated CFRP elements are typically stiff and cannot be bent on site to wrap around columns or beams.

Structural Elements

• Columns strengthening

• Beams strengthening

• Slabs strengthening

• Walls strengthening

• Pipes strengthening

• Pier caps strengthening

Application Range

Load increases

Seismic reinforcement

Improve structural state

Damage of structural parts

Change the structural function

Remit mistakes in design and construction

Flexural strengthening,

Shear strengthening,

Column confinement and ductility improvement.

Our main product series:

-- Carbon fiber reinforcement system,v

XQ-XW carbon fiber epoxy adhesive

XQ-XB concrete surface leveling epoxy adhesive

XQ-CFC carbon fiber fabric 12K unidirectional 200gsm-600gsm

Carbon fiber CFRP fabric

-- Chemical Anchor series

Pure Epoxy Adhesive 360ml (5:1) 390ml(3:1) 585ml (3:1)

-- Steel bonding reinforcement system

XQ-JGN structural epoxy adhesive

XQ-GZ Grouting epoxy adhesive

XQ-FB edge sealing adhesive

-- Concrete repair system

XQ-GF crack grouting adhesive

XQ-FF crack sealing adhesive
