Ditch Witch HDD Drill Pipe , Carbon Steel Well Casing Pipe ITTC CSTT Certification
Ditch Witch HDD Drill Pipe , Carbon Steel Well Casing Pipe ITTC CSTT Certification
Ditch Witch HDD Drill Pipe , Carbon Steel Well Casing Pipe ITTC CSTT Certification
Ditch Witch HDD Drill Pipe , Carbon Steel Well Casing Pipe ITTC CSTT Certification
Specifications
Brand Name :
cge
Model Number :
JT920 JT921 JT1720 JT2020 JT20 JT25 JT30 JT2720 JT4020 JT7020 JT78020
Certification :
ITTC CSTT
Place of Origin :
Wuxi
MOQ :
10 pieces
Price :
$60-250
Payment Terms :
T/T, L/C, Western Union, D/A, D/P, MoneyGram
Supply Ability :
1500-2000 pieces per month
Delivery Time :
15-18 days
Packaging Details :
steel frame
Machine type :
Drilling Tool,Drilling Equipment
Material :
Carbon Steel
Processing type :
Turning Forging Casting
Type :
Drill Bit,Reamer,hole opener reamer,Drill Pipe,HDD rock reamer
Application :
HDD Project,oil well water well,rock drilling,coal mining/rock drilling/foundation drilling construction,Water well drilling
Size :
28.7mm-88.9
Usage :
No-Dig Drilling,Drill pipe for horizontal directional drilling machine.,Enlarge the well Diameter,Borehole Drilling,Horizontal Directional Drilling
Description

Ditch Witch HDD drill pipe forged one-piece and friction welding drill rod for HDD drilling

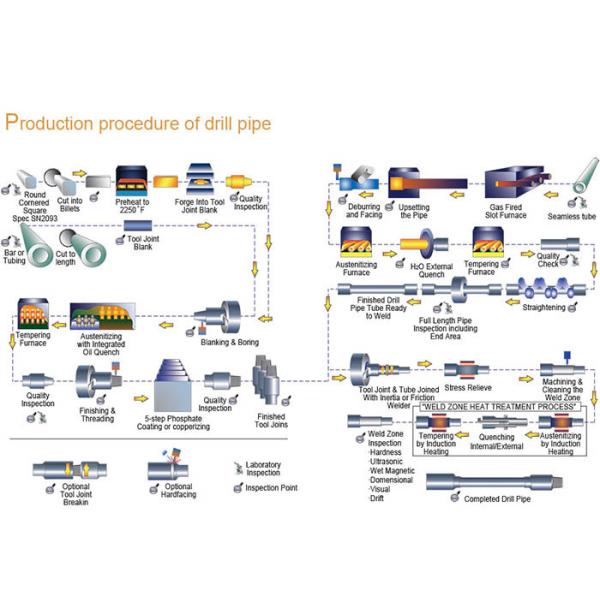

So all the manufacture processes are checked and controlled by ourselves, such as raw material check, end-upsetting, quenching,shot blasting and package.In order to track and review our processes, we record laser mark on each pipe,for a better after sales survey.

Ditch Witch HDD Drill Pipe , Carbon Steel Well Casing Pipe ITTC CSTT CertificationDitch Witch HDD Drill Pipe , Carbon Steel Well Casing Pipe ITTC CSTT Certification

Ditch Witch HDD drill pipe


Rig Model
Thread Type
OD of
the Tube
(mm)
Wall
Thickness
(mm)
OD of the joints/upset
(mm)
Working
Length
(m)
Tempering
and
Quenching
Grade
Min
Bending
Radius
(m)
Max Torque
(N.m)
JT520 DW 1.21 28.7 5 44.45 1.5 S135 29.5 1220
JT920/921 DW 1.41 42.3 6.5 50.8 2 S135 28 2929
JT920L DW 1.41 42.3 6 50.8 3.05 S135 28.1 2929
JT1720 DW 1.69 54 6.5 63.5 3 S135 35.8 6772
JT2020/20 DW 1.94 54 7.5 66.7 3 S135 35.8 8240
JT2720 DW 1.94 60.3 7.5 70 3 S135 40 7175
JT25/30 DW 2.11 60.3 8 70 3 S135 40 10542
JT25/2720M1/3020M1 DW 2.11 60.3 8.5 76 3 S135 40 18480
JT4020 DW 2.4 73 10 82.5 4.5 S135 48.5 13440
JT4020M1 DW 2.59 73 10.5 89 4.5 S135 51.4 18284
JT7020/8020 DW 3.27 88.9 9.35 101.6 4.5 S135 59 27132
