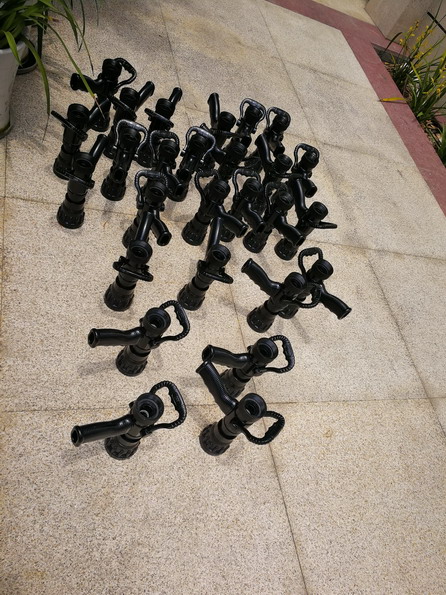

16 Bar 350L/Min Flow Nozzle Fire Fighting Equipment
16 Bar 350L/Min Flow Nozzle Fire Fighting Equipment
Specifications
Brand Name :
Mantern
Model Number :
MTSN20 500
Place of Origin :
China Mainland
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, PayPal
Supply Ability :
50000pcs per month
Delivery Time :
20 days
Packaging Details :
Standard Export Package
Name :
Multi Purpose Flow Nozzel
Hose Type :
German, British, Machino, Russian, French, Canadian etc.
Max. Pressure :
16 bar
Rated flow :
350L/min
Range :
2.5 - 4.5 L/S
Rated Flow :
Max. 500LPM
Description

Forede 475 LPM Pistol Grip Fire Hose Nozzle for Firefighting

Fire Hose Nozzle Select flow Fire nozzles have a selectable flow range at 6 bar of 115, 230, 360 and 475 litres per minute to meet the individual needs of the fire fighter at any given time but alternative flow rates are available.2.5 inch fire nozzle

Application:
Fire and Rescue Services
Aviation
Marine
Petrochemicals
Major Industrials

Features:
Long Range Jet
Dense Wide Fog Pattern
Variable Flow Rates
OEM&ODM
5 Year Guarantee2.5 inch fire nozzle

Specification:

Being made of light and hard aluminium for easy and simple handling and operation

Various connectors available in different styles including storz, NH, Russian, BS, JIC type etc. for different market

Flow rate being controlled and adjusted easily by twisting the adjustable head in clock wise

Specially designed for foam spray besides fire fighting water spray

Function:

1. Selectable head can be adjusted in different patterns,such as straight stream, safeguarding water stream, fog stream and so on. Spinning teeth will makes the fog more sufficient.
2. Fixed working pressure: 6bar, Max:16bar.

3. When the water pressure is at 6bar,flow rate range is 150-250-350LPM, Max flow rate will reach 500LPM at 9-10bar.

Technical data:

Model Number Connector size Normal Rated Flow Max. Rated Flow
MTSN20-500 1.5"/2"/2.5" 150 - 350LPM 500LPM
Working Pressure Net Weight Min. Jet Distance
100PSI(7 bar) 1.6KG 25M

16 Bar 350L/Min Flow Nozzle Fire Fighting Equipment

16 Bar 350L/Min Flow Nozzle Fire Fighting Equipment
