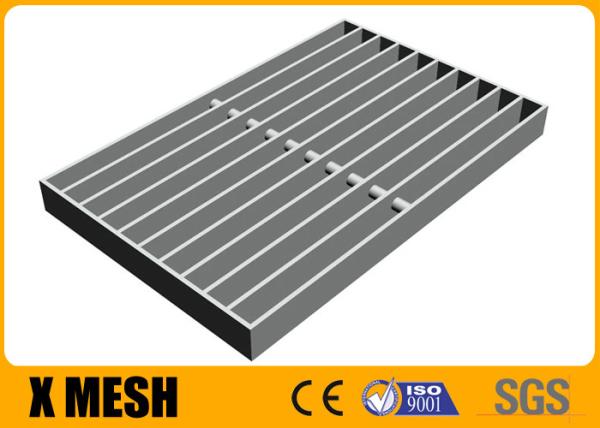

Smooth Surface Welded Steel Grating Industrial Serrated For Drainage Covers
Smooth Surface Welded Steel Grating Industrial Serrated For Drainage Covers
Smooth Surface Welded Steel Grating Industrial Serrated For Drainage Covers
Smooth Surface Welded Steel Grating Industrial Serrated For Drainage Covers
Specifications
Brand Name :
X MESH
Model Number :
X MESH-Welded Steel GratingA07
Certification :
ISO9001:2015
Place of Origin :
Hebei P.R. China.
MOQ :
200pcs
Price :
USD20.50-50.50/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
8500pcs/week
Delivery Time :
5-7days
Packaging Details :
Wrapped with plastic film and pallet packing
Name :
Welded Steel Grating
Application :
For Industrial Plant
Standard :
ASTM A121 Standard
Width :
240mm
Length :
600mm
Bearing Bar Size :
30x2mm
Weight :
4.9kgs/pc
Grating Style :
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Surface Treatment :
Black, self colour, hot dip galvanized, painted, spray coating
Material Grade :
ASTM A36
Description

Smooth Surface Industrial Welded Steel Grating Serrated For Drainage Covers

Welded Steel Grating Introduction:

Steel Grating is an essential structural component of many builds, particularly in commercial and industrial spaces. Steel Grating is specifically designed for high impact, high load applications, such as in walkways, stairs, platforms, and mezzanines. Steel grating is safer, will last longer, and will look better than any other underfoot options for industrial and commercial spaces.
Please get in touch if you are in need of steel grating.

Name

Welded Steel Grating

Application

For gasoline refinery

Standard

ASTM A121 Standard

Width

240mm

Length

600mm

Bearing Bar Size

30x2mm

Weight

4.9kgs/pc

Grating Style

Plain / Smooth, Serrated /teeth, I bar, serrated I bar

Surface Treatment

Black, self colour, hot dip galvanized, painted, spray coating

Material Grade

ASTM A36

Welded Steel Grating Standard:

Steel grating standard

Steel standard

Hot dipping zinc standard

China YB/T4001.1-2007 (lateststandard)

China GB700-88

China GB/T13912-92

US ANSI/NAAMM (MBG531-93)

US ASTM(A36)

US ASTM(A123)

British BS4592-1:1995

British BS360(43A)

British BS729

Australian AS1657-1992

Australian AS3679

Australian AS1650

Welded Steel Grating Specification:

No.

Item

Description

1

Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

2

Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

3

Twisted Cross Bar Pitch

38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc

4

Material Grade

ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,

Mild steel & Low carbon steel, etc

5

Surface Treatment

Black, self colour, hot dip galvanized, painted, spray coating

6

Grating Style

Plain / Smooth, Serrated /teeth, I bar, serrated I bar

7

Standard

China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987, Australia: AS1657-1985,

l

s

h x t

n

(kg)

600

240

30 x 2

120

4,9

270

30 x 2

150

5,4

305

30 x 2

185

5,9

800

240

30 x 2

120

6,1

270

30 x 2

150

6,7

305

30 x 2

185

7,3

1000

240

30 x 2

120

7,3

270

30 x 2

150

8,0

305

30 x 2

185

8,7

1200

240

30 x 3

120

10,9

270

30 x 3

150

11,6

305

30 x 3

185

12,6

1200

240

40 x 2

120

9,9

270

40 x 2

150

10,9

305

40 x 2

185

11,9

Welded Steel Grating Applications:

  • Flooring

  • Stair treads

  • Walkways and ramps

  • Hand / guard rails

  • Maintenance platforms

  • Drain covers

  • Man hole covers

  • Trench grates

  • Mezzanine flooring

  • Balustrade infill

  • Sun screens

  • Architectural facades

  • And many other applications

Welded Steel Grating Feature: ​

1. High strength, light structure: solid grid pressure welding structure has advantages of high load, light structure, easy installation, etc.

2. Fine appearance, durable in use: hot zinc dipping surface treatment makes it own fairly good corrosion resistance, bright and beautiful surface.

3. Good ventilation, lighting, thermal, anti-explosion, and anti-skid performance.

4. Prevent dirt deposition.
