Paper /PVC roll to sheet cutting machine, crossing cutting machine
Paper /PVC roll to sheet cutting machine, crossing cutting machine
Paper /PVC roll to sheet cutting machine, crossing cutting machine
Paper /PVC roll to sheet cutting machine, crossing cutting machine
Paper /PVC roll to sheet cutting machine, crossing cutting machine
Paper /PVC roll to sheet cutting machine, crossing cutting machine
Specifications
Brand Name :
Chancer
Model Number :
DC-1000
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
USD 6000 per set
Payment Terms :
T/T
Supply Ability :
100sets per year
Delivery Time :
30days
Packaging Details :
seaworthy package
Max cutting width :
950mm
cutting length :
20-1500mm
Max unwinder diameter :
600mm
Description

Paper /PVC roll to sheet cutting machine, crossing cutting machine

USE:

This machine is suitable for non-woven fabrics, gold and silver cardboard, plain rainbow paper, positioning laser transfer paper, white paper, plastic sheet and other materials, transverse cutting. The electric main control system adopts central computer control (PLC), man-machine interface operation and dynamic display. The fixed-length control is controlled by stepping motor (or optional imported servo motor). The whole machine control mode is advanced, the main engine, stepping motor (or optional imported servo motor), feed motor speed through the computer centralized control to achieve synchronous operation, with high cutting accuracy, speed, loading convenience, heap Stack neat and so on.

Main technical parameter:

MODEL NO. DC-1000
Max cutting width 950mm
Cutting length 20-1500mm
Cutting precision ±0.5mm
Max unwinder diameter ￠600mm , weight 200KG
Max cutting speed 20--120times/min
Max cutting speet 50m/min
Pressure Requirement 5.5kg/cm2×5m3/min
Machine weight 2000kg
Machine size 3000×1200×1200mm

Contacts:

Paper /PVC roll to sheet cutting machine, crossing cutting machine

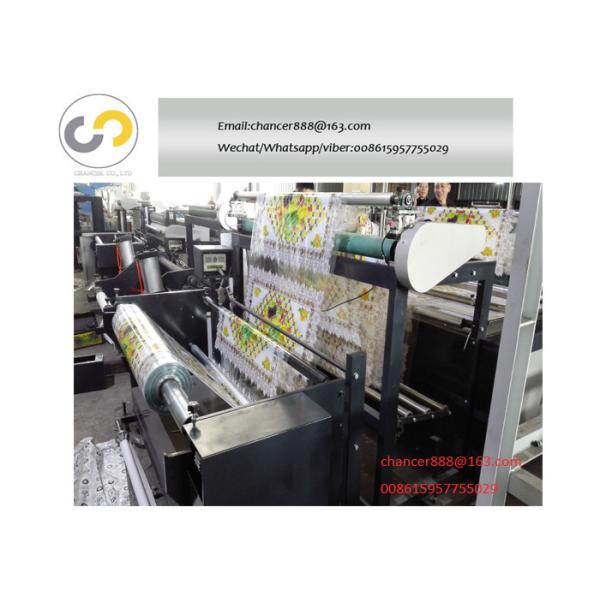

Machine picture:

Paper /PVC roll to sheet cutting machine, crossing cutting machine
