Automatic A3/A4 copy paper roll cutting machine, Roll to sheet cross cutting machine
Automatic A3/A4 copy paper roll cutting machine, Roll to sheet cross cutting machine
Automatic A3/A4 copy paper roll cutting machine, Roll to sheet cross cutting machine
Automatic A3/A4 copy paper roll cutting machine, Roll to sheet cross cutting machine
Specifications
Brand Name :
Chancer
Model Number :
HQJ-1100
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
USD 31000 per set
Payment Terms :
T/T
Supply Ability :
100set per year
Delivery Time :
30days
Packaging Details :
seaworthy package
Max cutting width :
1100mm
Cutting length :
20-400mm
Max unwinder diameter :
1400mm
Description

Automatic A3/A4 copy paper roll cutting machine, Roll to sheet cross cutting machine

USE:

1.Main engine frequency adjust speed, PLC touch screen control system, auto counter quantity, auto fixed length, auto machine stop when had alarm , auto tension control , color code track etc function.

2.Feeding roll use auto loading system(150#cylinder), air shaft use 3#(76mm paper tube core)

3.Machine rack use 10mm thick cast iron steel plate with steel structure. Bottom of cutting knife use heavy casting structure, Guide rollers using static balanced aluminum alloy guide roller.

4.Traction drive fixed position use servo motor system, traction driver roller use steel structure. Feeding traction way is through motor move the chain wheel to drag the rubber roller. The receiving platform is normal automatic finished materials table, control by motor.

5.Our Machine is best jumbo roll cross cutting machine, it have high precision. High speed and receiving sheet paper flat.

Main technical parameter:

Model HQJ-1100 * One roll feed
Max. Diameter of Unwinding φ1400mm
Max. Cutting Width 1100mm
Cutting Length 20-400mm
Machinery Speed 10-200cut per minute * One roll
Working Speed 150 cut per minute * One roll
Output bag of One Days (500pcs, hour) 150*1*5*60/500=90 ream per hour, 720 reams per day
Cutting Precision ±0.2mm
Total Power 11kw
Machine Weight 4500kg
Machine Size(L*W*H) 8600×2200×2200mm

Contacts:

Automatic A3/A4 copy paper roll cutting machine, Roll to sheet cross cutting machine

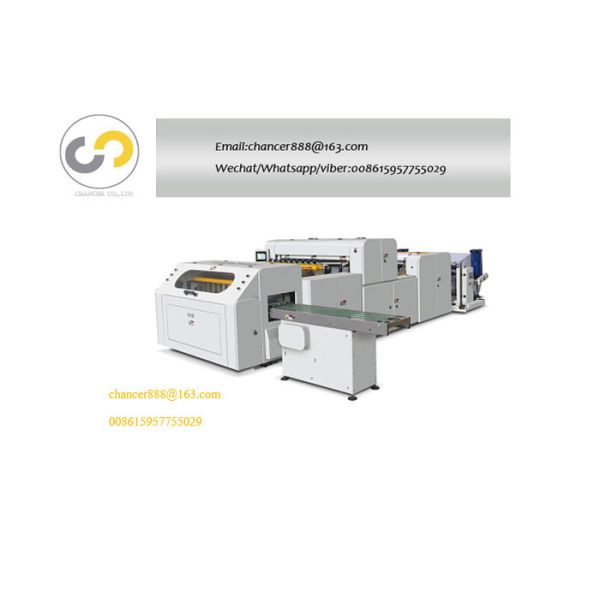

Machine picture:

Automatic A3/A4 copy paper roll cutting machine, Roll to sheet cross cutting machine

Sample:

Automatic A3/A4 copy paper roll cutting machine, Roll to sheet cross cutting machine
