Automatic splice paper straw making machine, paper straw machine USA
Automatic splice paper straw making machine, paper straw machine USA
Automatic splice paper straw making machine, paper straw machine USA
Automatic splice paper straw making machine, paper straw machine USA
Specifications
Brand Name :
Chancer
Model Number :
PS-80
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets per month
Delivery Time :
30 working days after getting 30% deposit
Packaging Details :
seaworthy package
Inner Diameter :
4.5-12mm
Cutting length :
120-850mm
Straw Thickness :
0.3-1mm
Voltage :
380V / 3phase / 50HZ (can be customized)
Power :
5.5 KW
Condition :
New
Dimension(l*w*h) :
3500x1500x1200mm
Warranty :
1 year
After-sales service provided :
Engineers available to service machinery overseas
Weight :
2000 KG
Name :
paper straw making machine,paper drinking straw making machine ( 100 pieces per minute )
Product type :
paper straw machine
Paper layer :
3 layers
Cutting system :
Multi-blades cutting
Production capacity :
80m/minute
Description

Automatic splice paper straw making machine, paper straw machine USA

Introduction:

PS-80 paper straw machine is designed for making paper drinking straw. Meeting Food grade production standard.

Making spirally tube from Glue feeding,winding, final cutting inline.

1. Body structure, Heavy-duty steel welded after NC cutting. Stable ,Strong and small vibration.

2. Paper stand , integral high speed design, constant paper tension control..

3. Glue stand, glue temperature control, feeding amount control.

4. Simple appearance, all motors put inside, make it easy for cleaning..

5. Safety as the core design element, transformation part protected , covered with 1.2mm thick stainless steel.

6. Stable, simple transformation principle, maintaining-free design, reduce maintaining frequency during operation.

7. High speed, 80M/Min paper feeding, up to 70M/Min tube production speed.

Main specification:

Model PS-80
Paper Layer 3 layers
Inner Diameter 4.5-12mm
Cutting system 7 knives
Cutting length 120-850mm
Capacity Max 80m/min.
Glue system with lubrication Fully-automatic
Splicing Semi-automatic
Working air compressor 0.6Mpa
Power 5.5 KW
Weight 2000 KG
Working space 7000x5000mm

Contacts:

Automatic splice paper straw making machine, paper straw machine USA

Machine picture:

Automatic splice paper straw making machine, paper straw machine USA

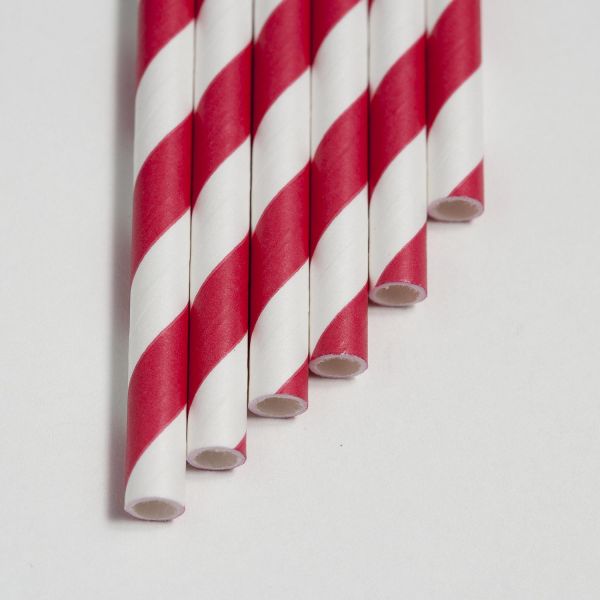

Sample picture:

Automatic splice paper straw making machine, paper straw machine USA
