Automatic 2.2kw 500mm width stretch film rewinding machine for PE, PP,PVC film
Automatic 2.2kw 500mm width stretch film rewinding machine for PE, PP,PVC film
Automatic 2.2kw 500mm width stretch film rewinding machine for PE, PP,PVC film
Automatic 2.2kw 500mm width stretch film rewinding machine for PE, PP,PVC film
Specifications
Brand Name :
CHANCER
Model Number :
AX-500
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
60sets per year
Delivery Time :
30 working days after get deposit
Packaging Details :
seaworthy package
Width of finished product(mm) :
200-500
Power of motor(kw) :
2.2
Liner speed of machinery(m/min) :
600
Description

Automatic 2.2kw 500mm width stretch film rewinding machine for PE, PP,PVC film

Use:


It is a automatic and high quality rewinding machine .It mainly slits large-sized stretch film into small ones which avoids the split-level film and improves the technical index of product,such as level and appearance quality,and computer control system , can set film length and machine speed .and automatic rewinder etc.

Feature:

1. It is the latest style of stretch film rewinder in China. It is full automatically rewinding and cutting.

2. Adopt PLC touch screen. Guarantee the operation more correction and easy

3. The speed is controlled system is: step motor + Inverter.

4. The main function is slit the jumbo rolls film into small rolls, and according to the rewinder can correct

the error layers of the production.

5. It is suitable for stretch film, cling film, fresh keeping film, and aluminum foil film, etc.

6. The production main used for packing, supermarket, hotel, restaurant, raw food, meat and sea food, etc.

7. Suitable for PE, PP,PVC film rewinder, with automatic change roll function.

Main Technical Variables:

Model AX-500
Width of finished product(mm) 200-500
Power of motor(kw) 2.2
Liner speed of machinery(m/min) 600
Roll Laying Mode(mm) By hand
Diameter of parent roll(max)(mm) 700
Width of parent roll(max)(mm) 200-500
Core specification of parent roll 2” 3”
Width of sub-roll(max)(mm) 200-450
Diameter of sub-roll(max)(mm) 40-260
Core specification of sub-roll 3” , 2” ,
Overall dimensions(L× W× H)(m) 1.4× 1.0× 1.1
Weight(kg) 600

Contacts:

Automatic 2.2kw 500mm width stretch film rewinding machine for PE, PP,PVC film

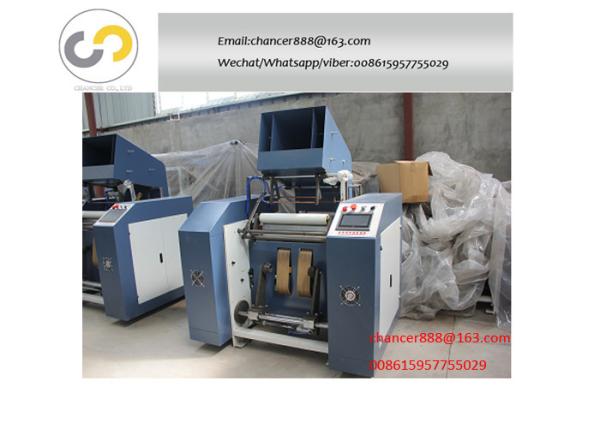

Machine picture:

Automatic 2.2kw 500mm width stretch film rewinding machine for PE, PP,PVC film

Sample picture:

Automatic 2.2kw 500mm width stretch film rewinding machine for PE, PP,PVC film
