Automatic U shape flexible drinking straw packing machine for Milk
Automatic U shape flexible drinking straw packing machine for Milk
Automatic U shape flexible drinking straw packing machine for Milk
Automatic U shape flexible drinking straw packing machine for Milk
Automatic U shape flexible drinking straw packing machine for Milk
Automatic U shape flexible drinking straw packing machine for Milk
Specifications
Brand Name :
CHANCER
Model Number :
JC-033
Certification :
CE
Place of Origin :
ZHEJIANG,CHINA
MOQ :
1 set
Price :
Negotation
Payment Terms :
T/T
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
seaworthy package
Material :
plastic film, paper
Voltage :
380V,50HZ,3phases
Condition :
New
Weight :
1000kg
Warranty :
One Year
Machine type :
packing machine, sealing machine
After-sales service provided :
Engineers available to service machinery overseas
Application :
Drinks, Milk, etc
Description

Automatic U shape flexible drinking straw packing machine for Milk

Feature:

Paper Straws U Shape Bending Packing Machine is new machine that upgraded, can bend Flexible Paper drinking straws to "U" shape automatically and pack it in parallel rows.

1)Packing of "U" straws in parallel rows and bending, packing straws at one time.

2)Adjustable packing speed.

3)Automatic stop in the event of fault.

4)The machine can ensure all sharp ends are packed in the same direction.

5)All transmission rollers are manufactured from aluminum material.

Main parameter:

Driving motor 2.2kw controlled by Inverter
Capacity 200-300pcs/min
Packing method 4 sides sealing

Specifications of the wrapping film

 Material BOPP/PLA film, PE Coated Paper
Shape Roll, Parallel rows
Roll diameter Max:280mm
Inner diameter of paper tubes 76mm
Width of film Max:180mm
Thickness of film 20μ-30μ
Packing shape 22mm(pitch)

Straws specifications

 Diameter 3.8mm /4.6mm
Thickness 0.35-0.4mm

Length of U-shape model

 90mm(small type)105mm(middle type), 128mm(big type)
Other specifications are customized
Machine size(L×W×H) 2m* 1.8m*1.8m
Machine weight 1000kg

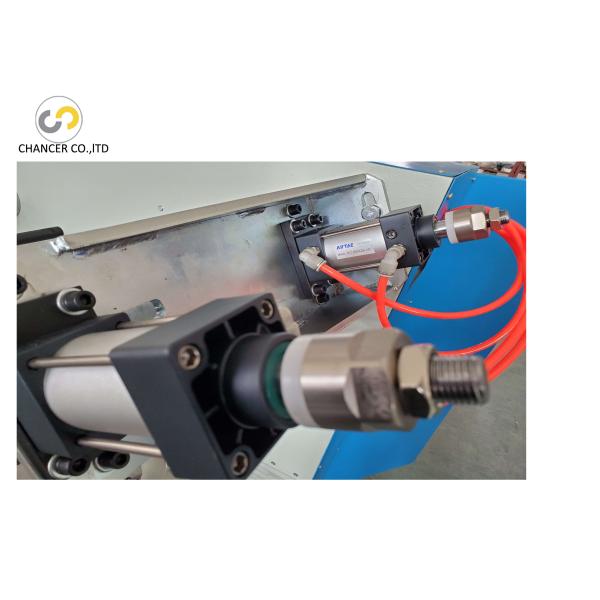

Machine picture:

Automatic U shape flexible drinking straw packing machine for Milk

Automatic U shape flexible drinking straw packing machine for Milk

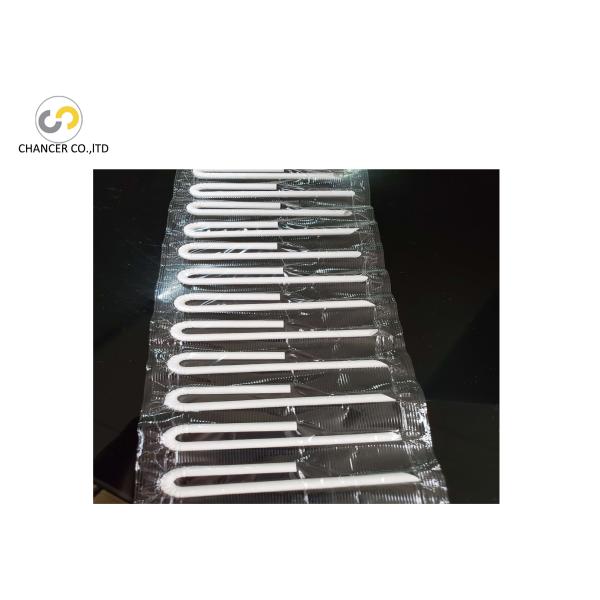

sample:

Automatic U shape flexible drinking straw packing machine for Milk
