High Speed kraft shopping paper bag twisted handle making machine
High Speed kraft shopping paper bag twisted handle making machine
High Speed kraft shopping paper bag twisted handle making machine
High Speed kraft shopping paper bag twisted handle making machine
Specifications
Brand Name :
Chancer
Model Number :
FY-10E
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100sets per year
Delivery Time :
30days
Packaging Details :
seaworthy package
Paper Length :
152-190mm(Optional)
Paper Rope Handle Spacing :
75-95mm(Optional)
Paper Width :
40mm
Material :
Paper
Type :
Paper handle making machine
Weight :
1500kg
Dimension(l*w*h) :
L4000*W1300*H1500mm
Warranty :
One Year
After-sales service provided :
Engineers available to service machinery overseas
Power(w) :
7.8KW
Description

High Speed kraft shopping paper bag twisted handle making machine

Introduction:

This machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

1. The machine is easy to operate and can produce paper handles with high speed usually reach 170 pairs per minute.

2. We design and offer the optional auto-production line, which can automatic gluing replace the human gluing procedure so that help to reduce lots of labor cost. It is strongly advice the paper bag producing factory use the auto-produce line that also support customize.

3. The unit paper bag can lift the heavy things of 15 kg at most, when the tension of raw materials reaches a certain level.

4. This machine adopts Huangshang melt-glue machine of Taiwan with service points in many countries, can provide customers with the fastest service.

Technical Data

Paper Roll Core Diameter Φ76 mm(3'')
Max. Paper Roll Diameter Φ1000mm
Production Speed 10000pairs/hour
Power Requirements 380V
Total Power 7.8KW
Total Weight Approx.1500kg
Overall Dimension L4000*W1300*H1500mm
Paper Length 152-190mm(Optional)
Paper Rope Handle Spacing 75-95mm(Optional)
Paper Width 40mm
Paper Rope Height 100mm
Paper Roll Diameter 3.0-4mm
Glue Type Hot-melt glue

Contacts:

High Speed kraft shopping paper bag twisted handle making machine

Machine picture:

High Speed kraft shopping paper bag twisted handle making machine

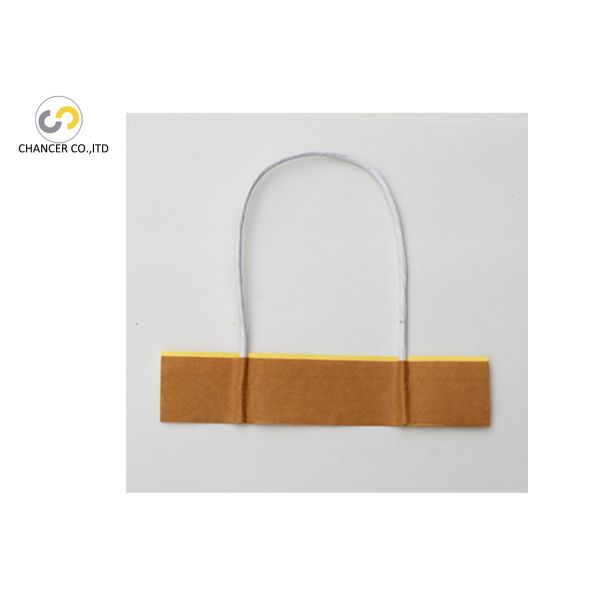

Sample:



High Speed kraft shopping paper bag twisted handle making machine
