Durable Small Crawler Excavator ZG380 With Original Cummins Engine
Durable Small Crawler Excavator ZG380 With Original Cummins Engine
Durable Small Crawler Excavator ZG380 With Original Cummins Engine
Durable Small Crawler Excavator ZG380 With Original Cummins Engine
Durable Small Crawler Excavator ZG380 With Original Cummins Engine
Durable Small Crawler Excavator ZG380 With Original Cummins Engine
Durable Small Crawler Excavator ZG380 With Original Cummins Engine
Durable Small Crawler Excavator ZG380 With Original Cummins Engine
Specifications
Brand Name :
changlin
Model Number :
ZG380
Place of Origin :
CHINA
MOQ :
1
Price :
USD5000-USD100000
Payment Terms :
L/C, T/T
Supply Ability :
30units/per month
Delivery Time :
5-8work days
Operating weight (Kg) :
37300
Rated bucket capacity (m³) :
1.8
Overall length (mm) :
11280
Overall width (Standard track shoe) (mm) :
3280
Overall height (mm) :
3560
Standard track shoe width (mm) :
600
Travelling speed (H/L) (Km/hr) :
5.5/3.3
Swing speed (rpm) :
8.8
Gradeability (Degree(%)) :
35 (70%)
Ground pressure (Kgf/cm²) :
0.7
Maximum digging radius (mm) :
10546
Maximum digging depth (mm) :
5884
Maximum digging height (mm) :
11110
Bucket digging force (kN) :
240
Stick digging force (kN) :
214
Model :
Cummins QSL9
Type :
6-Cylinder In-Line, Four-Stroke Turbocharger
Rated power :
214kW@2100RPM
Description

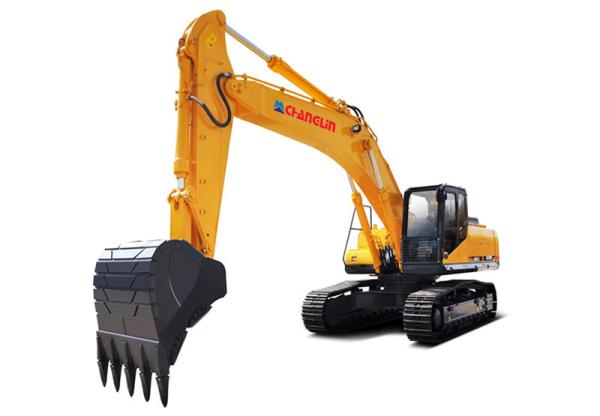

CRAWLER EXCAVATORZG380

The strengthened box type structure is fully welded using low stress high tensile steel plate.

Durable Small Crawler Excavator ZG380 With Original Cummins Engine

The crawler excavator is equipped with original Cummins engine, featuring high power, low fuel consumption and better reliability.

Durable Small Crawler Excavator ZG380 With Original Cummins Engine

The newly developed hydraulic system coupled with large displacement pump and high flow valve ensures large flow area, minimized pressure loss, reasonable flow distribution, better movement coordination and easy operation.

Durable Small Crawler Excavator ZG380 With Original Cummins Engine

The control system is newly developed to assure the full functionality of the entire excavator. It can intelligently adjust the hydraulic absorption power to accommodate the working conditions, and enable an optimized system matching.

Durable Small Crawler Excavator ZG380 With Original Cummins Engine

The crawler excavator is configured with heavy-duty reinforced boom, short stick, bucket, widened heavy-duty chassis and optimized box-shaped structure, to adapt to various working environments even in extremely harsh working conditions.

Durable Small Crawler Excavator ZG380 With Original Cummins Engine

The excavation operations will be accurately assessed and the hydraulic pressures associated with the boom and stick will be automatically reached, thereby providing the adequate digging force to deal with heavy loads while improving the work efficiency and ensuring the high reliability of the hydraulic system.

Durable Small Crawler Excavator ZG380 With Original Cummins Engine

The crawler excavator is equipped with a high-resolution glare-free color monitor, and an intelligent electronic monitoring system with functions of maintenance reminding, automatic fault diagnosis and alerting.

Durable Small Crawler Excavator ZG380 With Original Cummins Engine

The new cab is constructed with the latest ergonomic design, which provides the driver with a pleasant working environment thanks to the comfortable seat and standard air conditioner.
