Specifications
Brand Name :
CHANGLIN
Model Number :
YZ22
Place of Origin :
CHINA
MOQ :
one unit
Price :
usd55000/unit-usd79000/unit
Payment Terms :
D/A, D/P, T/T, L/C
Supply Ability :
1000 units per year
Delivery Time :
20 working days
Packaging Details :
by container or 40FR
Operating weight （kg） :
22000
Vibratory drum diameter （mm） :
1600
Compaction width （mm） :
2130
Static line pressure （N/cm） :
516
Min. ground clearance （mm） :
450
Wheel base （mm） :
3200
Min. turning radius （mm） :
6400
Gradeability :
30%
Vibratory amplitude（mm :
2.0/1.0
Vibratory frequency （Hz） :
30
Centrifugal force （kN） :
420/230
Forward (km/h) :
2.5/5.0/10.5
Reverse (km/h) :
2.5/5.0/10.5
Tire model :
20.5-25-16PR
Engine model :
WP6G175
Rated power :
129kW@2000rpm
Dimension (mm) :
6240×2320×3080
Description

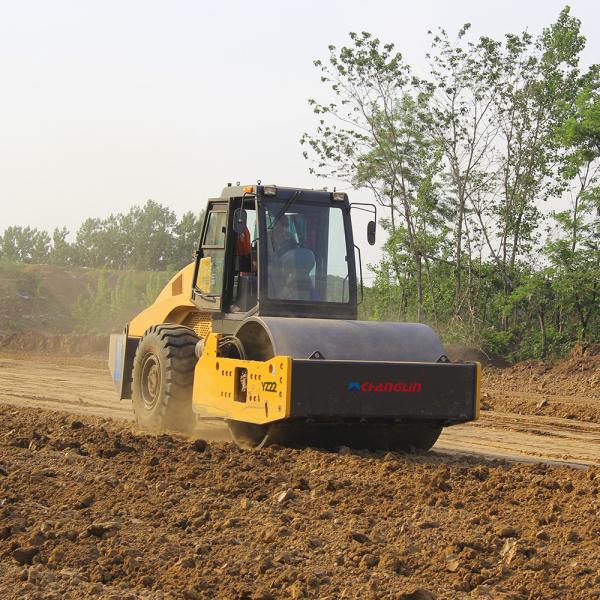

Changlin YZ22 Vibrating Roller

Hydraulic Vibrating Roller Compactor 22 Tons Drum Weichai Engine Same XCMG LIUGONGHydraulic Vibrating Roller Compactor 22 Tons Drum Weichai Engine Same XCMG LIUGONG

YZ22 mechanical single drum vibratory road roller is a powerful self-propelled vibratory road roller mainly suitable for the compaction of various soil layers and rock fills in highways, dams, railways, airports, ports, railways, embankments, industrial sites and other construction projects. This single drum vibratory road roller is highly effective on a wide range of non-stick materials including sand, gravel, gravel, as well as semi-stick materials.

Main Features:

· The vibratory road roller comes with 6-cylinder supercharged engine, which provides large power output and high work efficiency, and helps save energy and protect the environment;

· American PERMCO gear pump and gear motor are adopted in the vibration system to ensure high efficiency and reliable performance;

· A special gearbox with synchronizer is adopted for smooth shifting behavior;

· Drive axle with differential and caliper disc brake keeps powerful traction force and reliable performance;

· Electrically controlled start-up enables easy operation, and the options of high/low vibration amplitude ensure optimal compaction performance;

· Gas-assisted hydraulic caliper disc brake is used as service brake, and mechanical drum brake is adopted for parking, ensuring high safety and reliability;

· The rear hood has streamlined design and can be raised at a large angle to make maintenance on the road roller easier;

· The single drum vibratory road roller utilizes three stage damping units, providing outstanding shock absorption performance;

Hydraulic Vibrating Roller Compactor 22 Tons Drum Weichai Engine Same XCMG LIUGONGHydraulic Vibrating Roller Compactor 22 Tons Drum Weichai Engine Same XCMG LIUGONG

FAQ
Q1.are you original manufacturer?
A:Yes, we Changlin are an official leading manufacturer in construction machinery, We set up joint ventures with korean and
japanese company in 1990s.Q2: what kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
Q3. Which incoterms 2021 can we work?
A: FOB, CFR, CIF are the usual trade terms
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand
requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,
