Extension Cable Gps Antenna For Car Stereos 2500MHz Gps Tracking Antenna
Extension Cable Gps Antenna For Car Stereos 2500MHz Gps Tracking Antenna
Specifications
Brand Name :
chaowei
Model Number :
CW-G042
Certification :
BSCI CE Fcc RoHS Trade Mark Patent ISO9001:2008
Place of Origin :
Guangdong, China
MOQ :
10-100PCS
Price :
negotiable
Payment Terms :
T/T and other payments can also be negotiated.
Supply Ability :
5000 Pieces per Month
Delivery Time :
1-7 work days
Packaging Details :
Factory Supply Extension Cable Wifi GPS Combination Black Antenna For Car packing:1pcs/box
Product Name :
Extension Cable Wifi GPS Combination Black Antenna For Car
Frequency range :
1575.42± 3MHz/2400-2500MHz
Gain (dBi) :
28dBi /2dBi
VSWR :
≤2.0
polarization :
RHCP
Input Impedance(Ω) :
50
Voltage(V) :
3-5V
Radiation :
Directional
Connector type :
SMA,BNC or requested
Color :
Black or request
Description

Extension Cable Wifi Marine Gps Antenna 2500MHz Wireless Gps Antenna​

Factory Supply Extension Cable Wifi GPS Combination Black Antenna For Car

GPS

Product Name

Factory Supply Extension Cable Wifi GPS Combination Black Antenna For Car Marine Gps Antenna

Frequency range

1575.42±3MHz

Band Width

CF±5MHz

Gain (dBi)

28±2

VSWR

≤2.0

Polarization

RHCP

Input Impedance(Ω)

50

Current Consumption(mA)

30-60mA

Supply Voltage

3~5V DC

Radiation Pattern

Directional

Connector type

SMA,BNC or others

WIFI

Frequency range

2400-2500MHz

Band Width

100MHz

Gain (dBi)

2dBi

VSWR

≤2.0

Polarization

Linear

Input Impedance(Ω)

50

Radiation Pattern

Directional

Input Connetcor type

SMA,BNC or others

Mechanica Specifications

Cable

RG174

Material

ABS

Noise Figure(dB)

<1.5

Operation Temperature(℃)

-20~+85

Storage Temperature(℃)

-20~+85

Radone color

Black or request

A GPS antenna is a device that receives radio signals from GPS satellites at varying frequencies. The antenna expands the signals and converts them into electronic signals so that they can be interpreted by a GPS receiver. The GPS receiver then uses these signals to give an accurate estimate of the receiver's location.

Simply put, a GPS antenna helps you establish connectivity to the Global Positioning System (GPS). It is a system that was initially owned by the US Department of Defence.

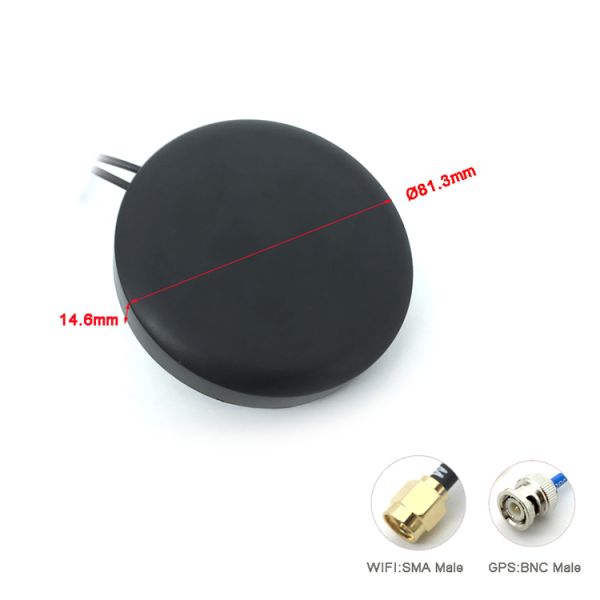

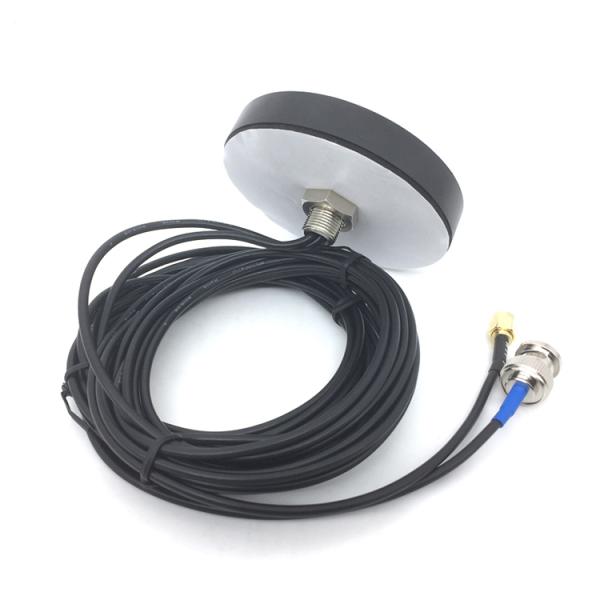

Detailed Images

Extension Cable Gps Antenna For Car Stereos 2500MHz Gps Tracking AntennaExtension Cable Gps Antenna For Car Stereos 2500MHz Gps Tracking AntennaExtension Cable Gps Antenna For Car Stereos 2500MHz Gps Tracking Antenna

FAQ

FAQ

1 Q: What is you brand ?A ODMOEM

2 Q: Can I choose a different connector?

A: We can customize dfferent connector according to your requirements 3 Q: Can you proyide customization?

A Of course.Persnalized designs of the preducts accoraing to custome's requiremens are welcomed.

4 Q:Can you send a sample for us to develop?

A Yes,normally we can provide 1 cr 2samples of the small antenna for free,to be fair buyers need to bear the freight.

5 Q: How much the shipping cost will be for sample ?A It depends on the specifc weight and packing size of the goods

6 Q How can Iget the cable price list ?

A Please contact us with detal inquiry information,so we can cffer the latest price for you

7 Q: What's your MOQ?

A In generally,we will sk at least 100pcs for the Antenna which we can make further negtitio.

8 Q:What's the dellvery time?

A Generally, we can deliver the cables in 3-5working days cnce the paymentis confimed. Mas5 production can be negotiated 9Q:How do you solve after sale service?

A Afer the receip of goods, iyou are not satisfied or any other problems,please contact us to communicate as soon as possible,we will give you a quicky and reasonable solution.Thanks a lot!
