1575.42MHz Antenna For Car Radio , 20dBi Active Wifi Antenna
1575.42MHz Antenna For Car Radio , 20dBi Active Wifi Antenna
Specifications
Brand Name :
chaowei
Model Number :
CW-G012
Certification :
BSCI CE Fcc RoHS Trade Mark Patent ISO9001:2008
Place of Origin :
China
MOQ :
10-100 pcs
Price :
negotiable
Payment Terms :
T/T and other payments can also be negotiated.
Supply Ability :
50000 Pieces per Month
Delivery Time :
1-7 work days
Packaging Details :
GPS packing:1pcs/box
Product Name :
Satellite Tv Antennas
Frequency range :
1575.42MHz
Gain (dBi) :
20dBi
VSWR :
≤2.0
polarization :
RHCP
Input Impedance(Ω) :
50
Lightning Protection :
DC Ground
Connector type :
N Male or Requested
Antenna dimension :
22*180MM
Weight :
0.22kg
Voltage :
3-5V
Description

1575.42MHz Outdoor GPS Wifi Antenna 20dBi Satellite Tv Antennas

GPS Wifi Antenna 1575.42MHz Outdoor Satellite Tv Antenna

Electrical Specifications

Product Name

CW-GPS180W-NM

Frequency range

1575.42MHz

Gain (dBi)

20dBi

VSWR

≤2.0

Polarization

RHCP

Input Impedance(Ω)

50

voltage

3-5V

Lightning Protection

DC Ground

Connector type

N male or Requested

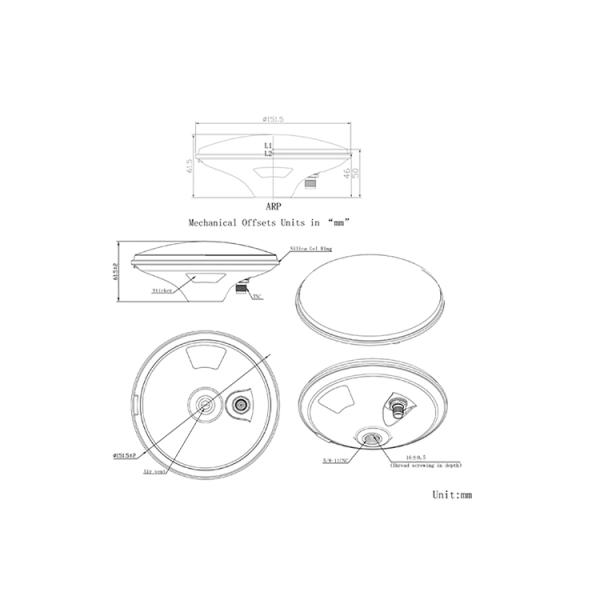

Mechanica Specifications

Dimensions(mm)

Customized

Wire/length(m)

RG58 or customized

Operation Temperature(℃)

-40~+85

Reted wind velocity(m/s)

60

Radone color

White(Gray,Black,or request)

GPS Antenna Frequency

The antenna frequency is the number of wave cycles per second. GPS signals are broadcast at sub-2 GHz frequencies by using the L-band of the radio frequency spectrum.

Each GPS satellite uses two types of frequencies to transmit data, L1 (1575.42 Mhz) and L2 (1227.60 MHz).

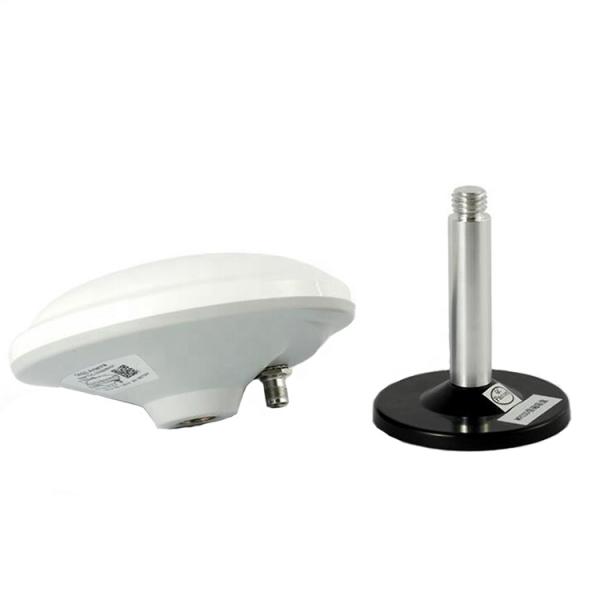

GPS Antenna Mount

A GPS Antenna mount is the mount used to attach a GPS antenna.

Typically, you can install a GPS antenna in one of two ways; wall mounting or pole mounting. In both cases, keep in mind to face the mounted antennas towards the sky for best results.

our service :

1) Factory sales catalog

2) Long-term, strong and stable supply capacity

3) Delivery time: 5-7 working days after payment is confirmed

4) According to your requirements for packaging, branding or design

5) Strong promotion policy

6) Ex-factory price and competitive price

7) We can provide you with good after-sales service

8) Reply to you as soon as possible

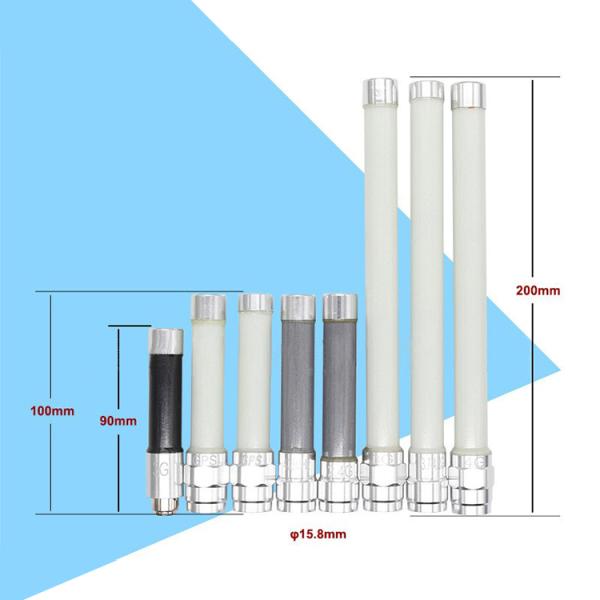

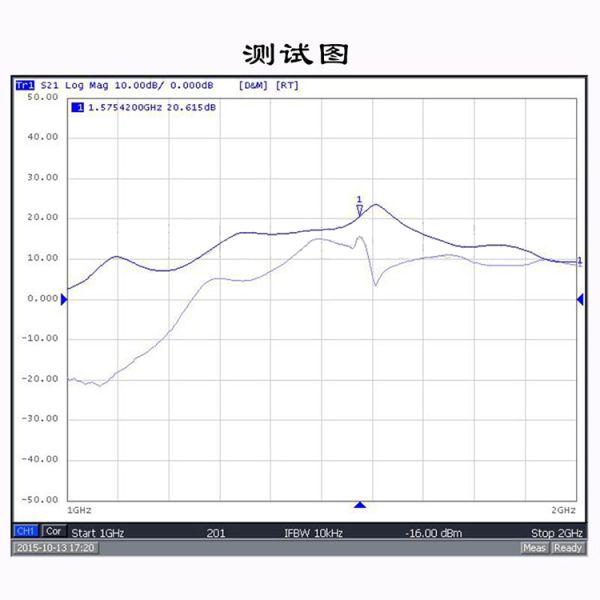

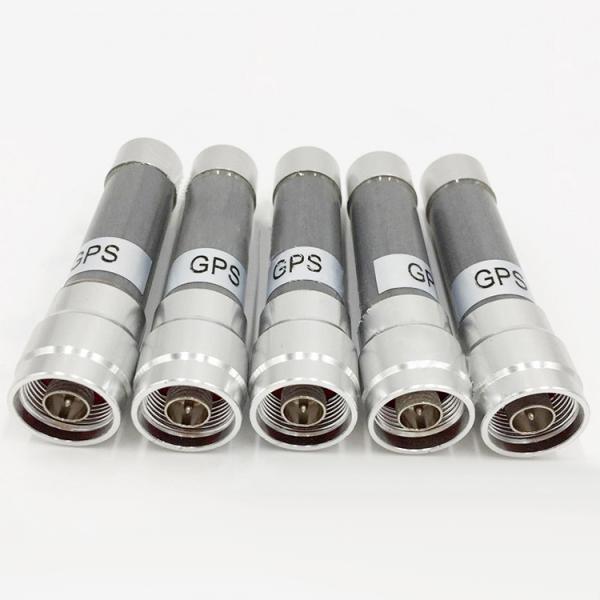

Detailed Images
1575.42MHz Antenna For Car Radio , 20dBi Active Wifi Antenna1575.42MHz Antenna For Car Radio , 20dBi Active Wifi Antenna1575.42MHz Antenna For Car Radio , 20dBi Active Wifi Antenna
Provide more products for you
4G LTE Antenna HDTV Antenna Magnetic&Suck Base Antenna
Car Antenna GPS Antenna UWB Antenna
Wifi Antenna Lora Antenna NB-IOT Antenna
Dish Antenna FPV&UAV Antenna Omni Outdoor Fiberglass Antenna
Hot Products

1575.42MHz Antenna For Car Radio , 20dBi Active Wifi Antenna

Equipment

1575.42MHz Antenna For Car Radio , 20dBi Active Wifi Antenna

Production Flow

1575.42MHz Antenna For Car Radio , 20dBi Active Wifi Antenna


Our Client

1575.42MHz Antenna For Car Radio , 20dBi Active Wifi Antenna

FAQ
Q:Are you a manufacturer or a trading company?
A:We are a manufacturer since year 2008 and we have been in RF fields for more than 10 years.
Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test, and it will be freight collect payment.
Q: Can your company accept customize?
A: Welcome OEM & ODM.As you know, many antennas are customized based on project and application, and we have R&D capability to meet customization requirements.
Q:What's your company MOQ?
A: This we can discuss according to different product. Most of our standard products, MOQ will be 1000PCS.
Q: What’s your payment term?
A: We usually accept T/T,PAYPAL and Western Union as the main payment term, and other payments can also be negotiated.
