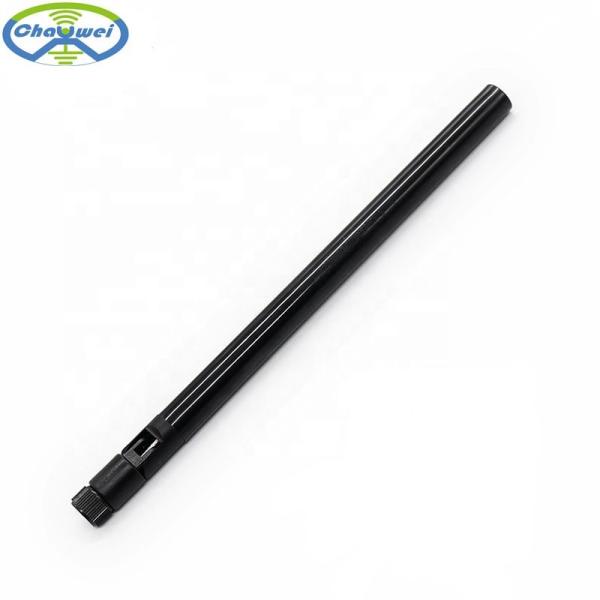

6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65
6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65
6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65
6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65
6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65
6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65
6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65
6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65
Specifications
Model Number :
CW-AP027
Place of Origin :
Guangdong, China
Brand Name :
chaowei
Packaging Details :
China Factory 2.4G Long Range External Wireless Wifi Antenna Packing:1pcs/pe bag
MOQ :
10-100 pcs
Price :
negotiable
Certification :
BSCI CE Fcc RoHS Trade Mark Patent ISO9001:2008
Payment Terms :
T/T and other payments can also be negotiated.
Supply Ability :
50000 Pieces per Month
Delivery Time :
1-7 work days
Antenna Name :
Omni Wifi Antenna
Frequency range :
2400-2500MHz
Gain :
6dBi
VSWR :
≤2.0
Input impedance :
50Ω
Polarization :
Vertical
Iput connector type :
SMA Male
Antenna color :
Black,White
Operating temperature :
-20~+85℃
Description

6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65​

China Factory 2.4G Long Range External Wireless Wifi Antenna

wifi receiver antenna Features:

High Efficiency-with and without ground plane

Use in indoor and outdoor, waterproof IP65,UV resistant.

Aesthetic look and feel Unique can rotate 360 degrees and articulate through 180 degrees

Max peak gain compliant with most Wi-Fi modules

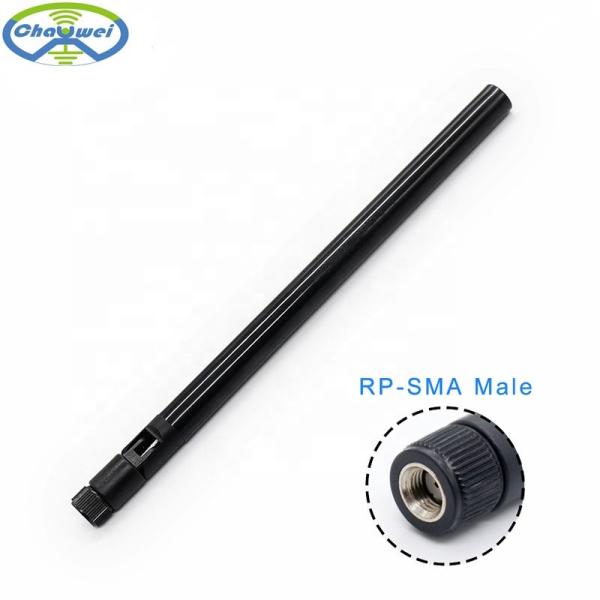

Connector:SMA(M),other connector available

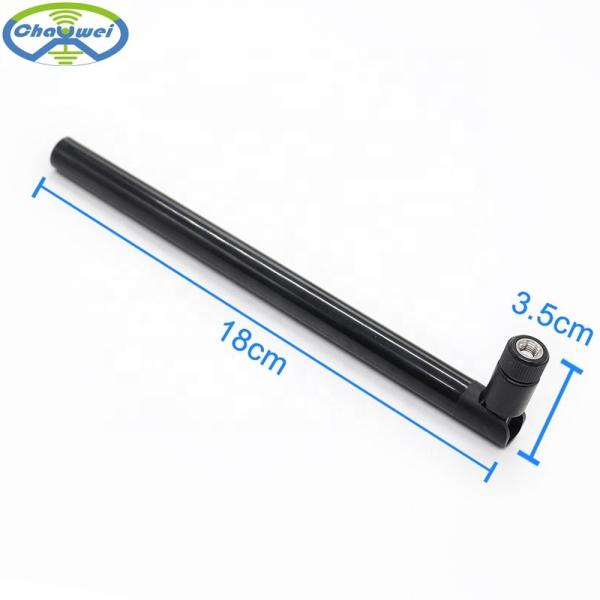

Dimensions:Ф13*200mm

RoHS&Reach CE/FCC/ BSCI Compliant long range wifi antenna

Electrical Specifications

Antenna Name

Wifi Antenna long range wifi antenna

Frequency range

2400-2500MHz

Gain (dBi)

6

VSWR

≤2.0

Input impedance(Ω)

50

Polarization Type

Vertical

Iput connector type

SMA Male

Mechanical Specifications

Antenna length(mm)

205x13

Openrating temperature(℃)

-20~+85

Antenna color

Black,White

Detailed Images

6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65

6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65


6dBi 2.4G Long Range External Omni Wifi Antenna Outdoor Waterproof IP65

FAQ

Q:Are you a manufacturer or a trading company?

A:We are a manufacturer since year 2008 and have been in RF fields for more than 10 years.

Q: Can I get some samples?

A: Yes, sample order is available for quality check and market test, and it will be freight collect

payment.

Q: Can your company accept customize?

A: Welcome OEM & ODM.As you know, many antennas are customized based on project and

application, and we have R&D capability to meet customization requirements.

Q:What's your company MOQ?

A: This we can discuss according to different product. Most of our standard products, MOQ will be

1000PCS.

Q: What’s your payment term?

A: We usually accept T/T,PAYPAL and Western Union as the main payment term, and other

payments can also be negotiated.
