Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof
Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof
Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof
Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof
Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof
Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof
Specifications
Model Number :
CW-BL003
Place of Origin :
Guangdong, China
Brand Name :
chaowei
Packaging Details :
High Quality High Gain 868MHz 915MHz 15dBi Waterproof 1.5M Fiberglass Antenna Packing:1pcs/pe bag
MOQ :
10-100PCS
Price :
negotiable
Certification :
BSCI CE Fcc RoHS Trade Mark Patent ISO9001:2008
Delivery Time :
1-7work days
Supply Ability :
5000 PCS Pre Month
Type :
LoRa LPWAN Antenna
Antenna Name :
High Gain 868MHz 915MHz 10dBi Waterproof 1.5M Fiberglass Antenna
Frequency range :
868-915MHz
Gain :
10dBi
VSWR :
≤2.0
Polarization :
Linear
Iput connector type :
N Female
Antenna color :
White
Dimensions :
1500mm
Operating temperature :
-45~85
Description

1.5M Fiberglass LoRa LPWAN Antenna High Gain 868MHz 915MHz 10dBi Waterproof

High Quality High Gain 868MHz 915MHz 15dBi Waterproof 1.5M Fiberglass Antenna

Electrical Specifications

Antenna Name

High Quality High Gain 868MHz 915MHz 10dBi Waterproof 1.5M Fiberglass Antenna

Frequency Range(MHz)

868-915MHz Or Requested

Gain (dBi)

10

VSWR

≤2.0

Input impedance(Ω)

50

Polarization

Linear

Lightning Protection

DC Ground

Iput connector type

N F or Requested

Mechanical Specifications

Dimensions

1500x20mm

Openrating temperature(℃)

-45~+85

Antenna color

White or Requested

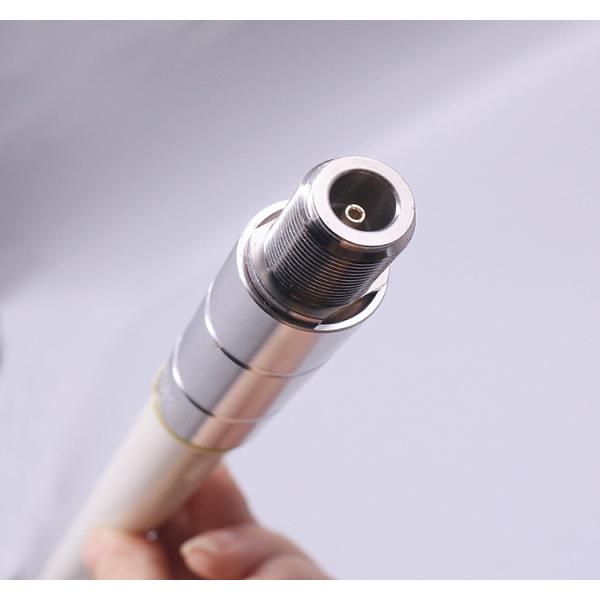

Detailed Images

Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium WaterproofFiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium WaterproofFiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium WaterproofFiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof

Hot Products

Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof

Company Information

Dongguan Chaowei Electronics Co., Ltd. was established on July13,2008,

Located at Dongguan City, Guangdong Province China,perfection is our main

objective.
We design and develop high performance antenna solutions for M2M and IoT applications. The ChaoWei R&D center is equipped with network analyzers and in-house anechoic chamber capable to perform radiated measurements ranging from

100 MHz up to 8.5 GHz.

Our R&D team has more than 11 years of experience in antenna design gained from a large number of customer specific and internal development projects. Whether you require a customized antenna solution for your application or want to integrate

one of our available standard antenna products – ChaoWei is your right partner when

it comes to antenna solutions for wireless applications.
Detailed documentation and development support is available for our standard products to ensure an easy integration. At ChaoWei we are prepared for the requirements of today´s and tomorrow´s wireless systems. Let us know your application and contact us today.

Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof

Equipment

Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof

Production Flow

Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof

Certificate

Fiberglass LoRa LPWAN LoRa 915MHz 868MHz Customized LoRa Helium Antenna 15 dbi, Fiberglass Helium Waterproof

AQ

Q:Are you a manufacturer or a trading company?

A:We are a manufacturer since year 2008 and have been in RF fields for more than 10 years.

Q: Can I get some samples?

A: Yes, sample order is available for quality check and market test, and it will be freight collect

payment.

Q: Can your company accept customize?

A: Welcome OEM & ODM.As you know, many antennas are customized based on project and

application,and we have R&D capability to meet customization requirements.For the printed logo on the product, if you do not require, we can change it at any time, sometimes it will be different from the pictures on the website. If special identification is required, please inform us in advance.

Q:What's your company MOQ?

A: This we can discuss according to different product. Most of our standard products, MOQ will

be 1000PCS.

Q: What’s your payment term?

A: We usually accept T/T,PAYPAL and Western Union as the main payment term, and other

payments can also be negotiated.
