4.2GHz Outdoor Ultra Wideband Antenna
4.2GHz Outdoor Ultra Wideband Antenna
4.2GHz Outdoor Ultra Wideband Antenna
4.2GHz Outdoor Ultra Wideband Antenna
4.2GHz Outdoor Ultra Wideband Antenna
4.2GHz Outdoor Ultra Wideband Antenna
Specifications
Model Number :
CW-F070
Place of Origin :
Guangdong, China
Brand Name :
chaowei
Packaging Details :
China Manufacture RTK GNSS GPS/Glonass/Galileo Receiver Frequency 1575.42MHz packing:1pcs/box
MOQ :
10-100 pcs
Price :
negotiable
Certification :
BSCI CE Fcc RoHS Trade Mark Patent ISO9001:2008
Payment Terms :
T/T and other payments can also be negotiated.
Supply Ability :
50000 Pieces per Month
Delivery Time :
1-7 work days
Product Name :
UWB antenna
Frequency range :
3.7-4.2GHz
Gain (dBi) :
3
VSWR :
≤2.0
polarization :
Liner
Input Impedance(Ω) :
50
Connector type :
N male or SMA Connector
Color :
White or requested
Description

4.2GHz Outdoor Ultra Wideband Antenna

Best Selling Broadband Banwidth Ultra Wideband Antenna Outdoor Omni-directional fiberglass Antenna

Ultra Wide Band (UWB) technology is a wireless carrier communication technology that transmits data using nanosecond narrow pulses of non-sinusoidal wave rather than sinusoidal carrier, thus covering a Wide spectrum.

UWB technology has the advantages of low system complexity, low power spectral density of transmitted signal, insensitivity to channel fading, low interception ability and high positioning accuracy, especially suitable for high-speed wireless access in dense multi-path places such as indoor.

Best Selling Broadband Banwidth Ultra Wideband Antenna Outdoor Omni-directional fiberglass Antenna

Electrical Specifications

Product Name

Best Selling Broadband Banwidth Ultra Wideband Antenna Outdoor Omni-directional fiberglass Antenna

Frequency range

3.7-4.2GHz

Gain (dBi)

7

VSWR

≤1.5

Polarization

Linear

Impedance(Ω)

50

Lightning Protection

DC Ground

Connector type

N male,SMA Connector

Mechanica Specifications

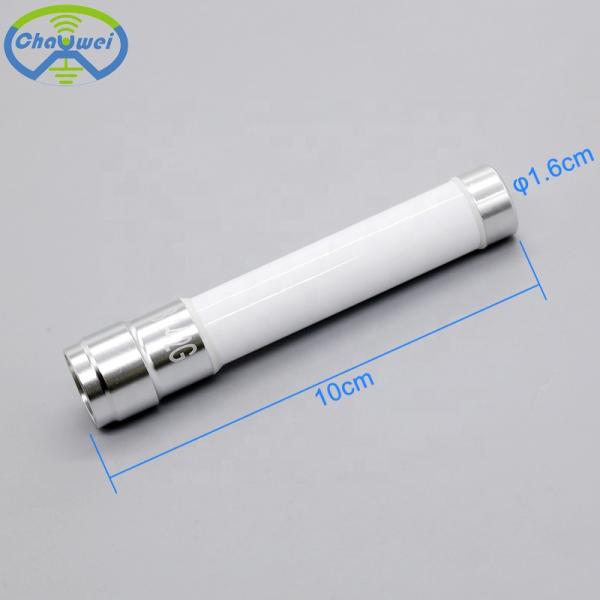

Dimensions(mm)

100x16

Operation Temperature(°C)

-40~85

Storage Temperature(°C)

-40~85
Detailed Images

4.2GHz Outdoor Ultra Wideband Antenna4.2GHz Outdoor Ultra Wideband Antenna4.2GHz Outdoor Ultra Wideband Antenna

Provide more products for you

4G LTE Antenna

HDTV Antenna

Magnetic&Suck Base Antenna

Car Antenna

GPS Antenna

UWB Antenna

Wifi Antenna

Lora Antenna

NB-IOT Antenna

Dish Antenna

FPV&UAV Antenna

Omni Outdoor Fiberglass Antenna

FAQ

1 Q: What is you brand ?A ODMOEM

2 Q: Can I choose a different connector?

A: We can customize dfferent connector according to your requirements 3 Q: Can you proyide customization?

A Of course.Persnalized designs of the preducts accoraing to custome's requiremens are welcomed.

4 Q:Can you send a sample for us to develop?

A Yes,normally we can provide 1 cr 2samples of the small antenna for free,to be fair buyers need to bear the freight.

5 Q: How much the shipping cost will be for sample ?A It depends on the specifc weight and packing size of the goods

6 Q How can Iget the cable price list ?

A Please contact us with detal inquiry information,so we can cffer the latest price for you

7 Q: What's your MOQ?

A In generally,we will sk at least 100pcs for the Antenna which we can make further negtitio.

8 Q:What's the dellvery time?

A Generally, we can deliver the cables in 3-5working days cnce the paymentis confimed. Mas5 production can be negotiated 9Q:How do you solve after sale service?

A Afer the receip of goods, iyou are not satisfied or any other problems,please contact us to communicate as soon as possible,we will give you a quicky and reasonable solution.Thanks a lot!
