24S 18S 100A Battery Management System BMS For Lithium Ion Battery
24S 18S 100A Battery Management System BMS For Lithium Ion Battery
24S 18S 100A Battery Management System BMS For Lithium Ion Battery
24S 18S 100A Battery Management System BMS For Lithium Ion Battery
Specifications
Brand Name :
CHARGERY
Model Number :
BM24P-100
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 set
Price :
USD179-USD199 per set
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000set per month
Delivery Time :
3-10days under 100set
Packaging Details :
10set one carton 15Kg
Battery Type :
LiPo, Li-ion, NMC, LiFe, LiTo,
Charge curren :
100A
Discharge current :
100A
Balance current :
1.2A per cell
Display :
LCD
Communication :
RS232, RS485
Update :
USB
Main unit size :
130*122*45 (mm)
Main unit weight :
0.49Kg
Display module size :
96*80*24 (mm)
Display module weight :
0.13Kg
Application :
E-bike, E-motorcycle, E-golf car, E-scooter,
OEM/ODM :
Customized available for storage enery system
Description

48V 100A BMS, BMS 24S 100V 100A, BMS 300A, BMS for lithium ion battery pack, BMS for lithium battery, LiFePO4 BMS, BMS 200A, BMS lithium battery 18650.

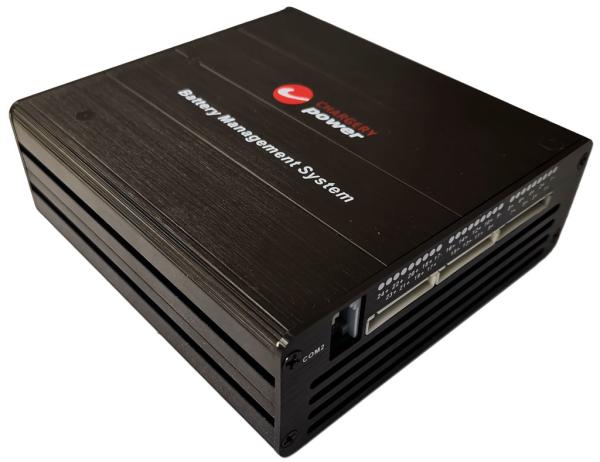

The Chargery BMS24P-100 is designed especially for LiPo, LiFe and LiTo battery packs applied to Energy Storage Systems and Electrical Vehicles including E-Motorcycle, E-Scooter and so on. The unit can measure or detect the battery voltage, cell voltage, charge & discharge current, battery temperature, and battery SOC (State of Charge), with the information displayed on the TFT color LCD screen. It has an Internal balancing function to balance cells to maintain optimal operations of the battery pack being managed.

Features:

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

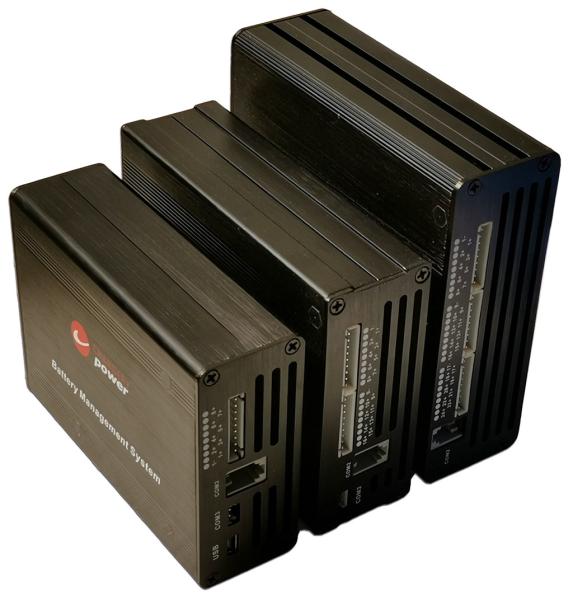

3 models are available

Model BMS24P-100 BMS24P-300 BMS24P-600
Maximum Charge and Discharge Current (A) 100 300 600
Main unit size (mm) 130×122×45 130×122×45 130×122×45
Main unit weight(Kg) 0.49 0.49 0.49
Display unit size (mm) 96×80×24 96×80×24 96×80×24
Display unit weight(Kg) 0.13 0.13 0.13

the BMS including Main unit, Display Unit, current shunt and all cables,

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

The DCC is optional, DCC is for cut off charging or discharging when any warning events occured or any settings are triggered,

24S 18S 100A Battery Management System BMS For Lithium Ion Battery

24S 18S 100A Battery Management System BMS For Lithium Ion Battery
