300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles
300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles
300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles
300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles
300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles
300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles
300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles
300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles
Specifications
Brand Name :
CHARGERY
Model Number :
BMS8P-300
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 set
Price :
USD109-USD129 per set
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000set per month
Delivery Time :
3-10days under 100set
Packaging Details :
10set one carton 6Kg
Battery Type :
LiPo, Li-ion, NMC, LiFe, LiTo,
Charge curren :
300A
Discharge current :
300A
Balance current :
1.2A per cell
Display :
LCD
Communication :
RS232, RS485
Update :
USB
Main unit size :
122*88*38 (mm)
Main unit weight :
0.34Kg
Display module size :
96*80*24 (mm)
Display module weight :
0.13Kg
Application :
E-bike, E-motorcycle, E-golf car, E-scooter,
OEM/ODM :
Customized available for storage enery system
Description

24V 100A BMS, BMS 8S 24V 100A, BMS 300A, BMS for lithium ion battery pack, BMS for lithium battery, LiFePO4 BMS, BMS 200A, BMS lithium battery 18650.

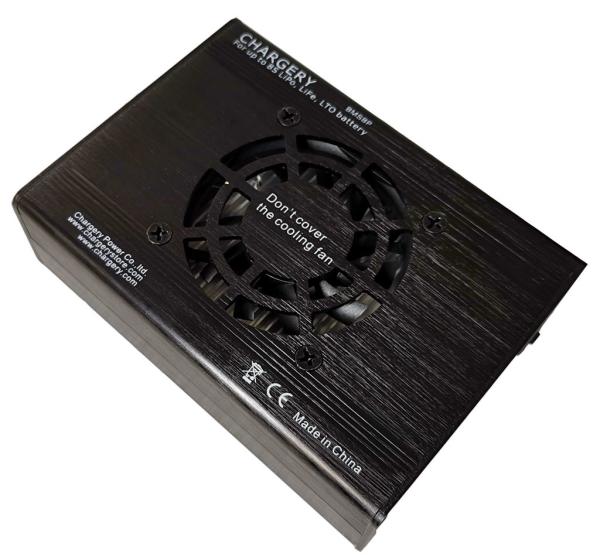

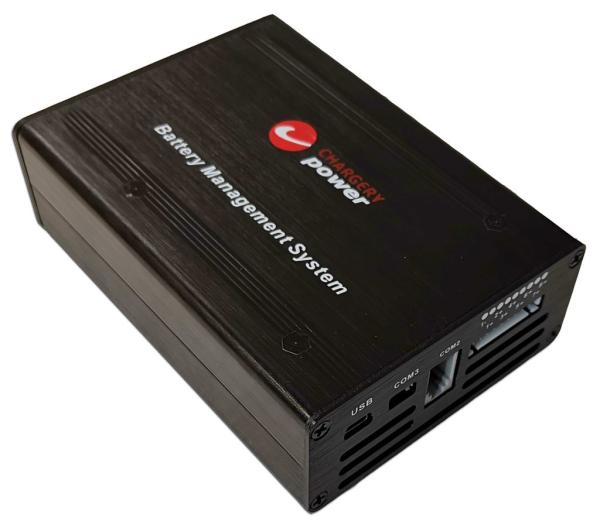

The Chargery BMS8P-300 is designed especially for LiPo, LiFe and LiTo battery packs applied to Energy Storage Systems and Electrical Vehicles including E-Motorcycle, E-Scooter and so on. The unit can measure or detect the battery voltage, cell voltage, charge & discharge current, battery temperature, and battery SOC (State of Charge), with the information displayed on the TFT color LCD screen. It has an Internal balancing function to balance cells to maintain optimal operations of the battery pack being managed.

Features:

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

The BMS including Main unit, Display Unit, current shunt and all cables,

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

The DCC is optional, DCC is for cut off charging or discharging when any warning events occured or any settings are triggered,

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles

300A 48v 16s BMS Battery Lifepo4 LTO Customized for Electrical Vehicles
