Advantage:

1) Laser positioner, easy for online programming.

2) Own vacuum testing, if one component suck crooked, will throw to the deposit area, then re-pick and place again.

3) Dual pick and place head design, 2pcs juki nozzles, magnet kind, change quikcly and easy.

4) Dual built-in mute type pumps (cost and room saving, no need to prepare additional pump)

5) Standard 8G SD card, mass storage of CSV working file

6) Full touch screen interface input/output, easy operation

7) Integrated Automatic FeedersAutomatic Nylon Spool Wheel

8) Support single step, easy operation.

10) Can mount 0402,0603,0805 ... 5050 SO-8 ... SO-16, SOT-23, SOT-89, TO-252 packages .

11) No vision system, 28 and 36 model are laser positioning.

12) Build-in software operating system, support Online programming: could easily online programming if you don’t have PCB Circuit diagram, with the assistance from laser positioner, no need to attach to a separate computer.

13) Easy programming, only takes 5mins: use Protel tool to extract the PCB circuit coordinate file, and use the format transformation tool we provided to you to transform the file format, and then copy to the SD card, insert to the machine, then you could use the file directly.

14) Standardization of packaging ensures safe transport.

15) Small and lightweight: simple installation, convenient transportation.

16) Working power max not over 200w, stand by power under 80w.

Applications industry:

Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.

Standard Accessories for CHMT36:

1) SMT Desktop Pick and Place Machine CHMT36*1

2) Juki Nozzle*4 (503, 504, 505, 506).

3) SD Card*1

4) SD Card reader*1

5) Pull pins: 2
6) Coil for pull pin:1
7) Hex wrench: 6
8) Tweezers: 1
9) Brush: 1
10) English user manual: 1

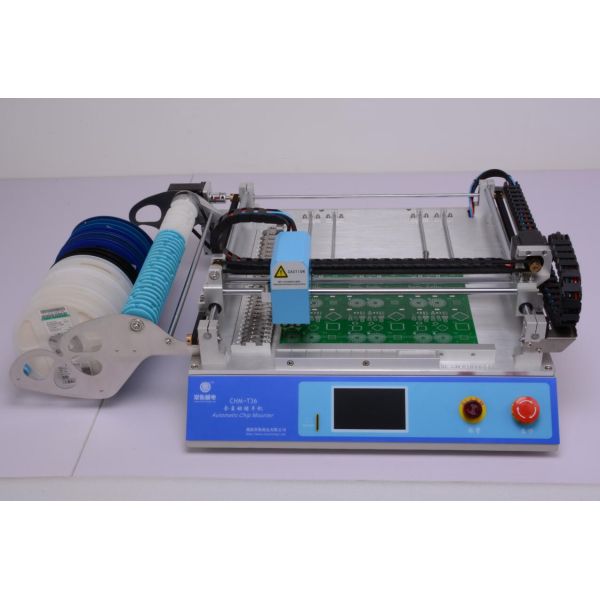

DETAIL Real PICTURES:

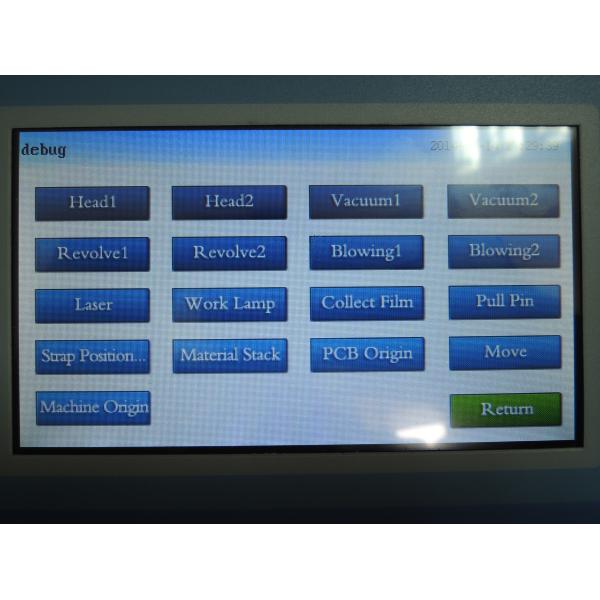

Touch Screen, very easy operation:

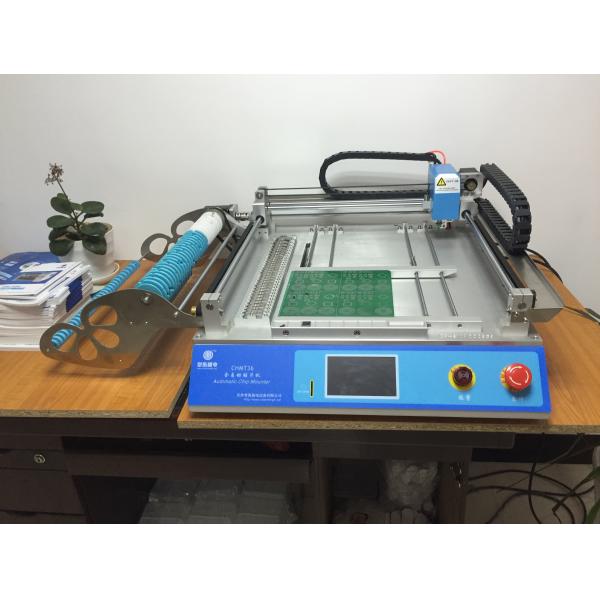

Hot sale CHMT36 MODEL:

Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.

Each machine 100% test well before sent out.
