Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven
Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven
Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven
Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven
Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven
Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven
Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven
Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven
Specifications
Brand Name :
Charmhigh
Model Number :
3250, CHM-751, 830 oven
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$19000
Payment Terms :
T/T
Supply Ability :
50 per month
Delivery Time :
6-9 working days
Packaging Details :
wooden box
Solder paste printer :
work table size 3250 (320*500mm)
Pick n place mahcine :
Charmhigh CHM-751 (6 heads, 50 feeder slots)
Reflow oven :
830 (8 zones, up4+down4), 380v
SMT line :
Medium SMT line
Description

Medium PCB SMT assembly line: 3250 semi-auto solder paste printer, CHM-751 6 heads SMT pick and place machine, 830 reflow oven. For batch production, economic SMT solutions

CHM-751 SMT line working video:

https://www.youtube.com/watch?v=86Q1jI8Ey9E

CHM-751 SMT line in a Chinese factory:

https://www.youtube.com/watch?v=hX4GejsQvA4

Our YouTube channel:

https://www.youtube.com/@KimiLiuCharmhigh/videos

This SMT assembly line suitable for:

Scientific research institutes, military industry, university laboratories, enterprises, start-up companies, New energy/automotive smart home LED lighting security instrument, Consumer electronics, Mobile communications, Home appliance industry, Medical equipment..etc.

CHM-751 Specifications
Dimensions 1280mm(L)×1190mm(W)×1470mm(H)
Weight 540kg
Power Supply AC220V (50Hz, single phase), 2.8kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 6 heads
Mounting Speed 18400CPH (optimal)
IPC9850: 13400CPH
Mounting Accuracy (XY)±0.05mm CPK≥1.0
Component Height 12mm
Component Type 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size 400mm(L)×350mm(W)
PCB Conveying 3-section-rail automatic conveying, PCB support
Nozzle Change Automatic nozzle change (19-hole nozzle library)
Control System Built-in industrial computer (Windows 7)
equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by servo motors (Y axis by double motors);
adopting flexible S-curve acceleration and deceleration
Transmission System Ground Ball screw + linear guide (Y axis with double screws)
Feeding System 50 Yamaha 8mm standard pneumatic/electric feeder stacks
(also suitable for IC tray and stick feeder)
Vision System Snapshot camera×6 (component size applicable: 16mm×16mm);
IC camera×1 (component size applicable: 36mm×36mm);
Mark camera×2

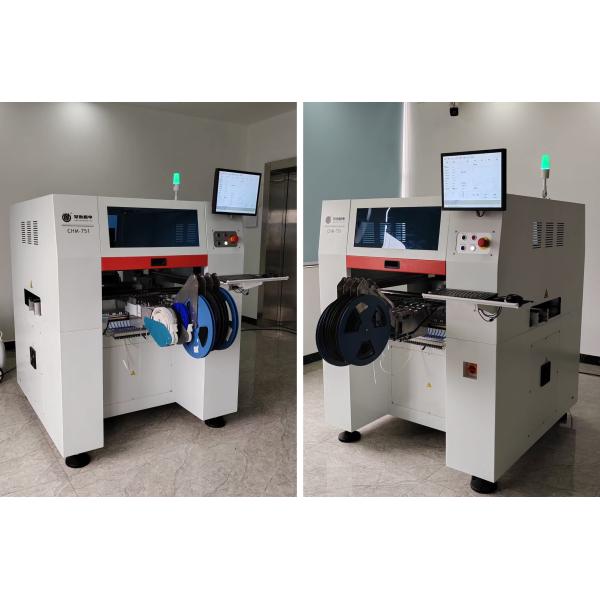

Real photo:

Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven

Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven

SMT workshop:

Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven

Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven

Packing & delivery:

Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven

Samples:

Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven

Charmhigh exhibition:

Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven

Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven

Medium SMT Line With 3250 Screen Printer 6 Heads SMT Pick And Place Machine 830 Reflow Oven

Service & Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory direct supply with guarantee.

We provide online Q/A and troubleshooting support and technical advice service.

We provide one to one after-sale service. Each machine 100% tested well before ship out.

Tech support:

Kimi's Mob/ WhatsApp: 0086 135 106 75756

Skype: kimiliu89

E-mail: kimi@charmhigh-tech.com

Welcome to follow us in YouTube: https://www.youtube.com/@KimiLiuCharmhigh/videos

If you want to know more information, please contact us by E-mail.

We will response you at the first time.
