Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient
Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient
Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient
Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient
Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient
Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient
Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient
Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient
Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient
Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient
Specifications
Brand Name :
NTSJ
Model Number :
FPGR-50
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 sets/momth
Delivery Time :
within 5days after payemnt received
Packaging Details :
The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Warranty :
12months
Vacuum degree :
-0.098mpa
Dimension(l*w*h) :
Ordered Equipment
Weight :
68kg ~ 190kg
Pipe fitting material :
304 Stainless Steel/customized
Automatic Grade :
Semi Automatic
Voltage :
220V
Application :
lab stirring, distillation
Description

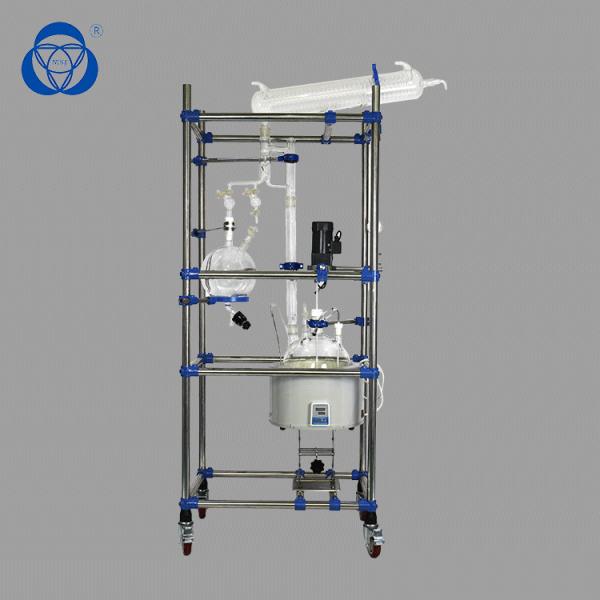

Glass Reactor Laboratory

Jacketed glass reactor is designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Main features

Customizable

Made by high-borosilicate glass 3.3, with good physical and chemical performance.

Single layer & double & triple layer reactors are also available.

Perfect match between lid and reaction flask with frosted surface for perfect sealing.

Accurate control of rotating speed.

Optional Explosion-proof design.

The number of necks on reaction lid can be customized.


Product Model

Volume(L)

Neck No.on Cover

External
Diameter of
inner Vessel(mm)

External
Diameter of
outer Vessel(mm)

Cover Diameter

Vessel Height(mm)

Motor Power(w)

Vacuum Degree(Mpa)

Rotation
Speed(rpm)

Torque(Nm)

Power(V)

Dimension(mm)
PGR-3
3
4
150
200
150
300
40
0.098
50-1400
0.27
220
320*350*900
PGR-10
10
6
230
265
450
140
0.098
50-600
2.23
220
650*650*1900
PGR-50
50
6
365
410
265
850
140
0.098
50-600
2.23
220
800*600*2300
PGR-100
100
6
460
500
340
950
250
0.098
50-600
3.98
220
1000*700*2700
PGR-200
200
6
600
650
340
1200
750
0.098
50-600
6.37
220
1200*900*3200

Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient

Packing and delivery


Glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases
Both neutral and customized packaging can be available.

You can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.

Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient

Our factory

Nantong Sanjing Chemglass Co . Ltd is one of largest professional manufacturers of chemical glass equipments in China.

The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments , main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products.

Lab Crystallizer Glass Pressure Reactor 304 Stainess Steel Material Convenient

Our service

Customizable

The warranty period of the company's products is 12 months from the date of acceptance of the equipment (excluding glass fitings andconsumables)

If there are quality problems in the parts during the warranty period

The seller can provide free replacement of malfunction components;if the damage is due to human factors, when the parts need to bereplaced.

The seller will provide the accessories and charge themaintenance cost according to the price.

For on-site installation and commissioning, additional charges will apply.
