Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation
Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation
Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation
Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation
Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation
Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation
Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation
Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation
Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation
Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation
Specifications
Brand Name :
NTSJ
Model Number :
FPGR-1
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 sets/momth
Delivery Time :
within 5days after payemnt received
Packaging Details :
The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Product name :
Chemical Reactor
Automatic grade :
Semi-Automatic
Dimension(l*w*h) :
Ordered Equipment
Warranty :
12 months
Type :
Reaction Kettle
Condition :
New
Application :
new material synthesis
Feature :
Customizable
Description

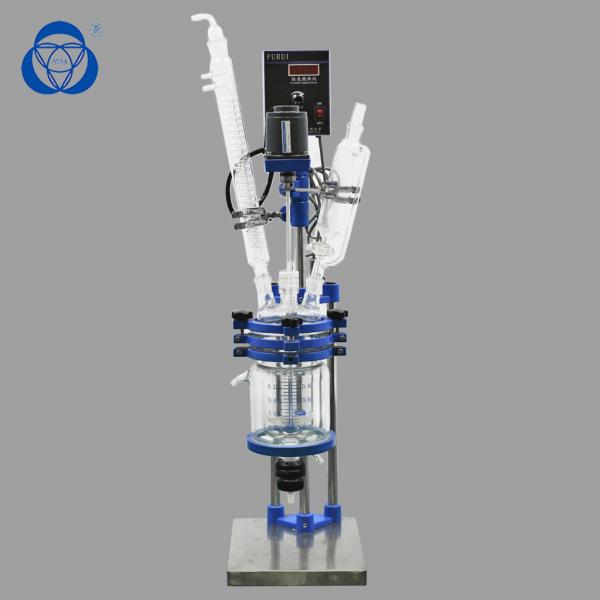

Glass Reactor

Double layer glass reactor is stirred by reaction solvent in the inner layer.

The interlayer can be heated / cooled by cold and heat sources (frozen liquid, water or silicone oil).

PTFE sealing material, sealing, corrosion resistance, wear resistance, electronic stepless speed regulation, smooth operation, the main structure of stainless steel, aluminum alloy.

Product Model PGR-3 PGR-5 PGR-10 PGR-30 PGR-50 PGR-100 PGR-200
Volume(L) 3 5 10 30 50 100 200
Neck No.on Cover 4 5 6 6 6 6 6
External Diameter of Inner Vessel(mm) 150 180 230 330 365 460 600
External Diameter of Outer Vessel(mm) 200 230 290 365 410 500 650
Cover Diameter(mm) 150 180 265 265 265 340 340
Vessel Height(mm) 300 400 450 730 850 950 1200
Motor Power(W) 40 60 140 140 140 250 750
Vacuum Degree(Mpa) 0.098 0.098 0.098 0.098 0.098 0.098 0.098
Rotation Speed(rpm) 50-1400 50-600 50-600 50-600 50-600 50-600 50-600
Torque(Nm) 0.27 0.95 2.23 2.23 2.23 3.98 6.37
Power(V) 220 220 220 220 220 220 220
Dimension(mm) 320*350*900 450*450*1200 650*650*1900 700*500*2100 800*600*2300 1000*700*2700 1200*900*3200

Main features

​The bottom drain valve has a zero dead space design, to make sure materials inside the vessel is always mixed thoroughly.

Durable AC induction motor is designed for continuous operation.

All the glassware is carefully crafted by borosilicate 3.3 glass for excellent chemical and physical performance.

The glass lid comes with 5 ports for maximized flexibility in operation (ports for stirring, thermowell, funnel, condenser & vacuum valve).

Customizable

Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation

Our factory

Stainless Steel Jacketed Glass Reactor Vessel High Efficient Smooth Operation

Our service
Each machine will deliver with User manual, machine label, Serier No. to guarantee the customer can get the machine without quality problem, custom clearance problem and delivery problem. also we provide 13month guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time.=All machine dispatched from Lab1st must be test by 3 times. the first time is the PR deparment,then test again by the QC deparment, and then the machine must be test again by our DS deparment. to guarantee each machine working perfect before delivery! Mini 2l rotary evaporator flask for pyrolysis.

Customizable
