Biochemictry Laboratory Glove Box with Pressure Control System
Biochemictry Laboratory Glove Box with Pressure Control System
Biochemictry Laboratory Glove Box with Pressure Control System
Biochemictry Laboratory Glove Box with Pressure Control System
Biochemictry Laboratory Glove Box with Pressure Control System
Biochemictry Laboratory Glove Box with Pressure Control System
Biochemictry Laboratory Glove Box with Pressure Control System
Biochemictry Laboratory Glove Box with Pressure Control System
Specifications
Brand Name :
SOPERSL
Model Number :
VGB1120S
Certification :
CE.SGS.ISO
Place of Origin :
CHINA
MOQ :
3
Price :
USD300-USD10000
Payment Terms :
D/P, Western Union
Supply Ability :
3000PCS/MONTH
Delivery Time :
5-10 WORKING DAYS FOR LCL
Packaging Details :
CRATE PACKAGE
Glove box chamber :
1120mm(W) x 740mm(D) x 900mm(H)
MATERIAL :
SS304
COLOR :
WHITE, ORIGINAL
POWER :
ELECTRONIC
Name :
SUS argon glove box
Usage :
Universal Testing Machine
Description

Biochemictry Laboratory Glove Box with Pressure Control System

Application:

Vacuum glove box gives a sealed case. It can fill with insert gas such as nitrogen, argon after vacuuming.

Heavy duty 304 stainless steel structure , tempered glass. Mainly used for oxidation and moisture, such as operating electronic balance precision instruments, dealing with semiconductor materials, researching processes in material science,chemistry .

VGB1120-4 is a heavy duty stainless steel glove box with Airlock Chamber, Gauges andvacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging.

Advantages:

Siemens PLC control system with 6" touch screen display: easy to access all functions

Recirculation system: closed loop gas circulation, oil free and vacuum tight

Automatically pressure control: working pressure can be set in the range of +/-12mbar

Automatically purging: easy to operate and save gas, as well safe for operating solvent.

Equipped with 9 3/ 4"butyl gloves for immediate use

Foot switch: box pressure can be regulated via foots witch

Easy to access to gloves

Data memo: automatically log system’s data

Warranty:One Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty


Glove Box

Chamber

·Dimensions: 1120mm(W) x 740mm(D) x 900mm(H)

Material: Stainless SUS304,3 MM( 11 gauge), which provide heavy duty structure for vacuum

·Max. Positive Pressure: 0.05 MPa

·Max. Vacuum Level: -0.05 Mpa

Antechamber

Dimension

 Stainless SUS304 , ø360mm, length =435mm, right side, with slidable tray inside

Antechamber

Pressure

Max. Positive Pressure: 0.1 MPa

Max. Vacuum Level: -0.1 Mpa

Window

Front Panel

·Dimension: 1040mm(W) x 400mm(H), Removable for putting in devices

1 Transparent Front Panel Removable tempered window with 2 glove ports (12mm)
Glove box 1 pairs of Latex gloves, 190mm length
Lighting System ·One e Lighting System (220V, 50Hz)
Pressure Gauge 1 Pressure Gauge on Antechamber brand
KF Connector Standard KF-25, KF-40 connectors and needle valves

Option

1. Oxygen monitoring unit (0 -1000 PPM )

2. Moisture monitoring unit(0-1000 PPM)

3. Automatic Pressure Controller

4. Automatic Humidity Controller (1-99%RH)

5. Solvent removal system

6. Open loop / Closed-loop HEPA Filters

7. High speed vacuum pump (4L/S High speed vacuum pump)

8. Gas Purification System
Application Notes

·Always check the joints, gloves, sealing elements, and pipelines for air-tightness before and during the operation

·Corrosive gases are prohibited as they will damage the sensors

·The inlet and outlet of the Air-lock Chamber must not be opened at the same time to prevent contamination by the external gas

·By closing the vacuum flange, the glove box can be vacuumed by mechanical pump up to 0.5 torr before filling inert gas, (moisture can be below 180 ppm and oxygen below 200 ppm). Then you can save at least 1-2 tank of inert gas from purging at each operation

Biochemictry Laboratory Glove Box with Pressure Control SystemBiochemictry Laboratory Glove Box with Pressure Control System

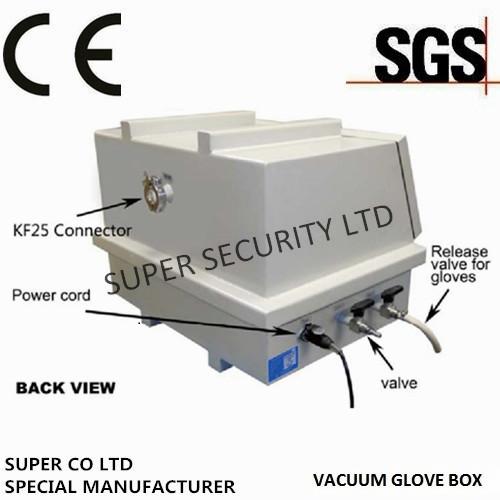

Back View

Biochemictry Laboratory Glove Box with Pressure Control System

STANDARD PACKAGE:

No

Description

Qty.

1

VGB-4A SS Glove box

1 unit

2

Power cable

1 pair

3

Gloves (spare use)

2 pcs

4

Vacuum rubber hose

1 pcs

5

Sealing gasket of glove port (spare use)

3 pcs

6

Sealing gasket of glove box door (spare use)

2 pcs

7

Vacuum grease

1 box

8

Glove clamps

3 pcs

9

Hose clamps

1 pack

10

Polyurethane tube

1 pc

11

User’s manual CD

1 pc
