Customized Made Size Metal Color Air Shower Room Clean Room Equipment
Customized Made Size Metal Color Air Shower Room Clean Room Equipment
Customized Made Size Metal Color Air Shower Room Clean Room Equipment
Customized Made Size Metal Color Air Shower Room Clean Room Equipment
Specifications
Place of Origin :
Guangdong,China(Mainland)
Brand Name :
SUCLAB
Certification :
ISO 9001,ISO 14001,OHSAS 18001
Model Number :
HUAZHIJUN-691
MOQ :
1 Pieces
Packaging Details :
Normal Export Wood Cartons
Delivery Time :
15 Days After Receiving The Deposit
Payment Terms :
EXW,T/T
Supply Ability :
10000 Pieces Each Month
Material :
full steel or 304 stzinless ,steel
Color :
wjhite
Size :
standard or customized made
Application :
100 Lab / Laboratory Clean Room, pharmaceutical, Industrial, Medical Health / Lab, Clean room
Usage :
Pharmaceutical factory or laboratory, High Cleanliness, Purification engineering design Clean rooms Floor Anti-static floor or EPOXY floor or PVC, PVC floor, PVC/Epoxy floor for clean room Color clear, White, Off-white, customized Size customized, 855*550*
Description

Customized Made Size Metal Color Air Shower Room Clean Room Equipment

Features of Air Shower Room:

1.Air shower room is when operators enter the clean room using personal purification device.

2. Air shower room:It uses a high-speed clean air shower to remove body dirt and adjust the nozzle into the room personnel effectively remove dust out of the man.

3. Air shower room :also plays a role in Airlock to prevent entering clean areas without clean air, and to prevent external contamination into clean areas.

4.Air shower room: Subjects are made of cold-rolled sheet spray plastic or stainless steel plate processing, and centrifugal fan configuration and initial efficiency and high efficiency air filters, with appearance of compact structure, easy maintenance, simple operation and so on.

5.By photoelectric sensing two door interlock switch, automatically opening and closing, and people (goods) in and out of convenience.

6.Air shower room control system adopts PLC control system.

Specifications of Air Shower Room:

Model

Single Single Blow Air Shower

Single Double Blow

Double Double Blow

Outside Dimension (mm)

1290×1000×2050

1590×1000×2050

1590×2000×2050

Air Shower Area (mm)

790×910×1930

790×910×1930

790×1910×1930

Air Velocity at the Nozzle

15~20M/S

Number of Nozzles

6 Pieces(Single)

12Pieces(Double)

24Pieces(Double)

Air Shower Time

0~99s(Adjustable)

Filter efficiency

≥99.99%

Meterial

1.2mm thickness cold-rolled plate,surface static electricity spurts models processing or 1.2mm stainless steel plate.

The material and number of door

Stainless steel single door*2 pieces

The door of interlocked manner

Air shower double door lock, usually two-door electronic interlocking, can open a door.

Power Supply

380V

Capacity

1.2KW

2.3KW

4.6KW

Weight

~360KG

~420KG

~840KG

Number of Users

1~2 people

1~2 people

2~4 people

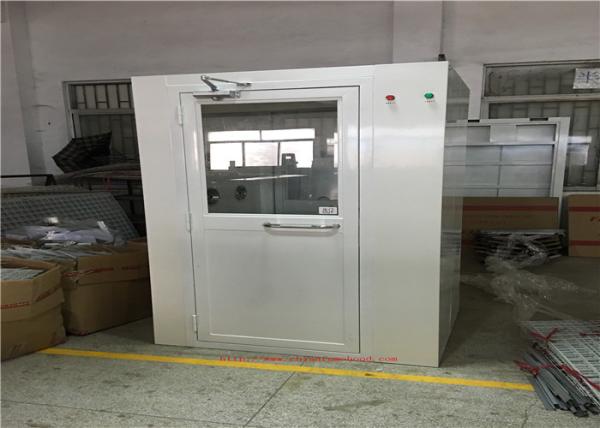

Photos of Air Shower Room:

Customized Made Size Metal Color Air Shower Room Clean Room Equipment
