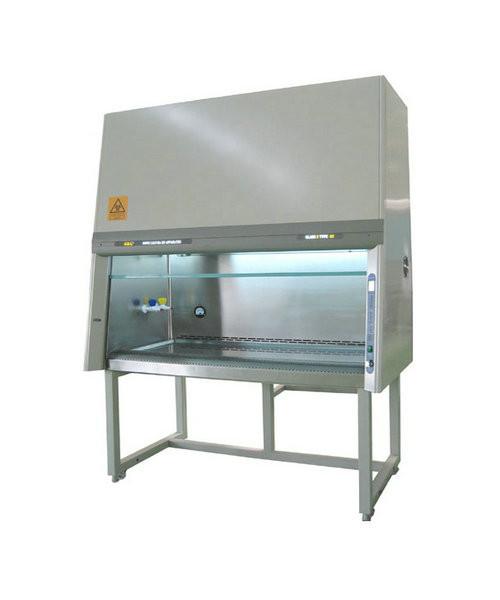

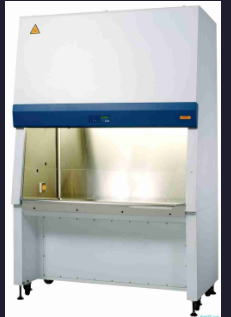

Biosafety Cabinet Class II / Biosafety Cabinet Company / Biosafety Cabinet Clean Room Equipment
Biosafety Cabinet Class II / Biosafety Cabinet Company / Biosafety Cabinet Clean Room Equipment
Biosafety Cabinet Class II / Biosafety Cabinet Company / Biosafety Cabinet Clean Room Equipment
Biosafety Cabinet Class II / Biosafety Cabinet Company / Biosafety Cabinet Clean Room Equipment
Specifications
Place of Origin :
Guangdong,China(Mainland)
Brand Name :
SUCLAB
Certification :
ISO 9001,ISO 14001,OHSAS 18001
Model Number :
HUAZHIJUN-774
MOQ :
1 Pieces
Packaging Details :
Normal Export Wood Cartons
Delivery Time :
15 Days After Receiving The Deposit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Pieces Each Month
Material :
stainless steel or full steel
Size :
standard or customized made
Color :
white
Warranty :
5 years
Application :
100 Lab / Laboratory Clean Room, pharmaceutical, Industrial, Medical Health / Lab, Clean room
Description

Biosafety Cabinet Class II / Biosafety Cabinet Company / Biosafety Cabinet Clean Room Equipment

Features of Biosafety Cabinet Class A2:
1.Front window: when using optical perspective is clear, clean and disinfect does not negatively
impact burst-proof tempered glass, tempered glass production, glass thickness ≥ 5 mm.

2.Cabinet: four two-tier structure, all Studio and the collecting tank to use imports 304 stainless
steel materials.

3.Operations on three sides and side wall panels unibody structure, leave some space
at the bottom,easy to clean, to avoid cross infection.

4.Blower/motor maintenance and disassembly, replacement HEPA filters are available from all
safety cabinets.

5.Containment of the Cabinet: the cabinets pressurized to 500Pa, keep the air pressure
is not lower than 450Pa after 30min.

6.Cabinet stability: a countertop Center load 23kg unload, countertop must not bend downward.

7.Alarm system: safety Cabinet front window opening height exceeds a set level, decreased
safety Cabinet flow velocity and flow fluctuation of air flow velocity in excess of their nominal
value of 20%, the interlocking system startup, sound, light, sound and alarm.

8.HEPA filter integrity: scan filter at any point of the leak rate of less than 0.01%.

9.Cannot scan filters detect leak rate of less than 0.005% personal protection: percussive
sampler number ≤ 10CFU/.

10.Slit type sampler number ≤ 5CFU/product protection: colony count ≤ 5CFU/cross
infection: colony count ≤ 2CFU/.

Technical Parameters of Biosafety Cabinet Class A2:

Product name

Biosafety Cabinet Class A2

Index/type technical parameter

HZJBSC－1100－LⅡA2

HZJBSC-1360－LⅡA2

HZJBSC-1800IIA2

Exhaust volume

30% exhaust

HEPA filter leakage ratio

≤0.005%

Wind speed

Inflows flow average wind speed: >0.5M/s
Downdrafts in average wind speed: 0.25-0.5 m/s

Noise

≤62dB(A)

Semi-peak

≤3μm(rms)

Illumination

≥700LX

Display

LCD + remote control

Power supply

Single AC 220V/50Hz

Normal power consumption

0.85kw

Max power consumption

1.85kw (including two spare socket 1000W)

Weight

305kg

320kg

326kg

Workspace dimensions

1220x600x680mm

1360x600x680mm

1800x600x680mm

Device overall dimension

1382x790x2150mm

1525x790x2150mm

1940x790x2150mm

Air filter specifications
and quantity

1215x500x50mmx①

1355x500x50mmx①

1795x500x50mmx①

Exhaust air filter specifications
and quantity

600x440x90mmx①

740x400x90mmx①

865x440x90mmx①

Fluorescent lights/UV lamps
specifications and quantity

30w×②/30w×①

40w×②/40w×①

40w×②/40w×①

The number of applicable

Single double single

Double single

More than
single-sided
