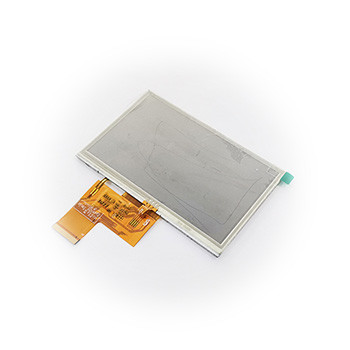

WQVGA TFT Liquid Crystal Display Module 5 Inch With Touch Screen

High Brightness Liquid Crystal Display Module 5inch Wqvga TFT With Touch

Quick Details of color lcd display module

Module Name: TFT LCD Display Module
Module No: CH500WQ03B-T
LCD Type: 5.0'' TFT + RTP
Resolution: 480x272 dots
Display Type: TN/Transmissive/Normally Black
Viewing Direction: 12 o'clock
Module Size: 120.7(W) x 75.8(H) x 4.35(T) mm
Active Area: 110.88(W) x 62.832(H) mm
Dot Pitch: 0.231(W) x 0.231(H) mm
Interface: 24-bit RGB interface
FPC Pin Number: 40 pins
Operating Temperature: -20 ~ +70 ℃
Storage Temperature: -30 ~ +80 ℃
Luminance: 1000 cd/m2 High Brightness (Support Sunlight Readable)

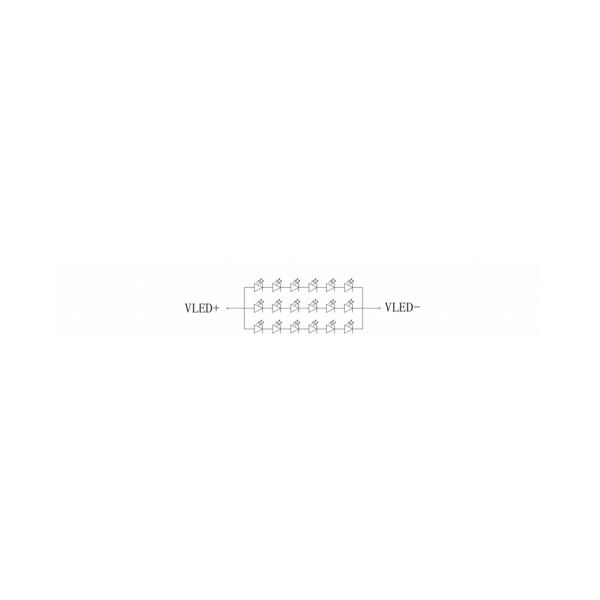

Back Light: 18 White LEDs in serial
Life Time: 20000 hours
Backlight Color: White
Touch Screen Type: Resistive
Touch Screen Interface: USB

Specification of tft touch display

Description of tft color screen

The CH500WQ03B-T is a high-quality TFT LCD display module with a resistive touch screen. It has a 5.0" size and 480x272 resolution, making it ideal for displaying color views in industrial control equipment and other devices. With a wide viewing direction of 12 o'clock, high brightness of 1000 cd/m2, and support for use in a wide temperature environment, the CH500WQ03B-T is a reliable and versatile display solution.

About LCD Display Module

TFT LCD modules are a type of electronic display that uses thin film transistor technology to produce high-quality images with high resolution and excellent color reproduction. These modules are commonly used in a wide range of industrial and consumer applications, such as digital cameras, video recorders, medical equipment, automotive displays, and mobile devices, among others.

One of the key advantages of TFT LCD modules is their ability to provide sharp and clear images even in low-light conditions. This makes them ideal for use in applications where visual feedback is crucial, such as in medical equipment where accurate diagnosis depends on the ability to view clear images.

Moreover, the lightweight and compact design of TFT LCD modules make them suitable for use in portable devices like smartphones and tablets. They are also frequently used in automotive displays because of their high contrast and bright colors, which make it easy for drivers to see vital information on the dashboard while on the road.

Overall, the widespread use of TFT LCD modules across various industries underscores their versatility and effectiveness in providing an exceptional visual experience for end-users while meeting the requirements of complex applications.

Our Advantage
Chenghao LCD is an industry and trade integrated enterprise located in Shenzhen, China. We have a monthly supply ability of 300K pcs/month and offer OEM and ODM services. We provide one-stop liquid crystal display solutions, remote online technical support, and certificates including RoHS, CE, and FCC. The CH500WQ03B-T also comes with a one-year warranty and fast delivery times of 7-15 working days.

FAQ
Q: What is the product warranty?
A: The CH500WQ03B-T has a one-year warranty.

Q: What is the delivery time?
A: The delivery time is 7-15 working days.

Q: What certificates does the product have?
A: The product is RoHS, CE, and FCC certified.

Q: What is the MOQ?
A: The MOQ is 1 pcs.

Q: What is the payment method?
A: The payment method is T/T.
