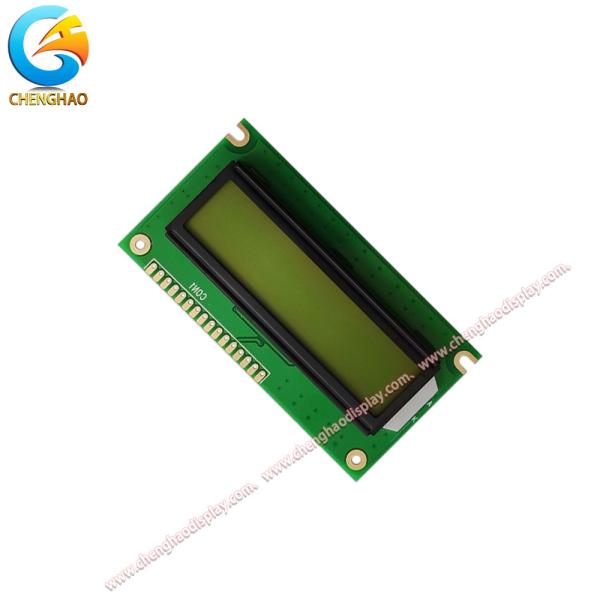

1602 Cog Graphic Lcd Module For 8051 Avr Arduino Pic Arm All
1602 Cog Graphic Lcd Module For 8051 Avr Arduino Pic Arm All
1602 Cog Graphic Lcd Module For 8051 Avr Arduino Pic Arm All
1602 Cog Graphic Lcd Module For 8051 Avr Arduino Pic Arm All
1602 Cog Graphic Lcd Module For 8051 Avr Arduino Pic Arm All
1602 Cog Graphic Lcd Module For 8051 Avr Arduino Pic Arm All
Specifications
Brand Name :
Chenghao Optoelectronic
Model Number :
CH1602C01A
Place of Origin :
Shenzhen,China
Certification :
CE / RoHS / FCC
MOQ :
100 pcs
Packaging Details :
All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements.
Delivery Time :
3~5 working days
Payment Terms :
TT or negotiation
Supply Ability :
5000K Pcs/Month
Product Name :
Cog Graphic Lcd Module
BACKLIGHT :
LED (YELLOW-GREEN)
VIEW AREA :
66(W)×16(H) Mm
DISPLAY BACKGROUNTND :
YELLOW-GREEN
CHARACTER SIZE :
0.55(W)×0.65(H) Mm
DUTY :
1/16DUTY
NUMBER OF CHARACTERS :
16 Characters X 2 Lines
STORAGE TEMPERATURE :
-30 OC ~ 80 ℃
BEZEL :
0.6T
Description

Product Description:

This monochrome LCD display is a high-performance LCD module with LED backlight (yellow-green). Its overall dimensions are 84.0×44.0×12.5 mm, and its working load is 1/16DUTY. The character spacing is 2.95 (width) × 5.55 (height) mm, and the viewing area is 66 (width) × 16 (height) mm. Offering clear viewing and long life, this monochrome LCD screen is reliable and durable, making it an ideal choice for many applications, making it ideal for a variety of applications including industrial, medical, automotive and instrumentation.

Technical Parameters:

Attributes Details
DUTY 1/16DUTY
STORAGE TEMPERATURE -30 ~ 80 ℃
CONTROLLER SPLC780D1 OR EQUIVALENT
EFFECTIVE V/AREA 56.2(W)×11.5(H) Mm
DISPLAY DOT BLUE-BLACK
INPUT DATA 68 SERIES
OPERATING TEMPERATURE -20 ~70 ℃
DIMENSIONAL OUTLINE 84.0×44.0×12.5 Mm
VIEW ANGLE 6 O'CLOCK
BACKLIGHT LED (YELLOW-GREEN)

Other Lcd module

 Graphic lcd display 320x240 & Graphic lcd module

Applications:

Chenghao Optoelectronics monochrome LCD display CH1602C01A is a reliable and high-quality product made in Shenzhen, China. It has passed CE, RoHS and FCC certification. With the advantages of 50000H ultra-long service life and low power consumption, it is an ideal choice for automotive electronics, telecommunications, aerospace , medical equipment, industrial control and other applications.


Terminal Functions

PIN NO. SYMBOL LEVEL FUNCTION
1 VSS 0V GND
2 VDD +5.0V Power Supply for logic
3 V0 - Operating voltage for LCD
4 RS H/L H: Data L: Instruction code
5 R/W H/L H: Read L: Write
6 E H-L Chip Enable signal
7~14 DB0~DB7 H/L Data bus line
15 LEDA +5.0V Power Supply for LED Back Light
16 LEDK 0V




Power Supply And Contrast Adjust Circuit

1602 Cog Graphic Lcd Module For 8051 Avr Arduino Pic Arm All

Absolute Maximum Ratings

PARAMETER SYMBOL RATINGS UNITS
POWER SUPPLY FOR LOGIC VDD-VSS -0 .3~ 7.0 V
POWER SUPPLY FOR LCD DRIVER VDD～V5 0 ~ 10.0 V
INPUT VOLTAGE VIN VSS ~ VDD V
OPERATING TEMPERATURE Topr -20 ~70 ℃
STORAGE TEMPERATURE Tstg -30 ~ 80 ℃

Support and Services:

We provide technical support and services for monochrome LCD monitors. Our technical support team is available 24/7 to assist you with any questions or concerns you may have. In addition, we provide a variety of services, including troubleshooting, repairs, and software debugging, to help you use our monochrome LCD monitors quickly and correctly to provide you with the best customer experience.

Packing and Shipping:

1. All of our shipping boxes meet the export hardness standards
2. All of our boxes will be padded with foam inside to prevent screen damage
3. Our product packaging adopts a large box with small boxes
4. The weight of each box does not exceed 3.5 kilograms, and the dimensions may vary depending on the standard. We will use pallets or wooden frames for the goods
The above packaging methods are all to prevent damage to the display module during transportation, and we can also package the goods according to the customer's wishes.

FAQ:

Q&A for Monochrome LCD Display

Q1:What is the brand of the Monochrome LCD Display?
A1:The brand of the Monochrome LCD Display is Chenghao Optoelectronic.

Q2:What is the model number of the Monochrome LCD Display?
A2:The model number of the Monochrome LCD Display is CH1602C01A.

Q3:Where is the Monochrome LCD Display from?
A3:The Monochrome LCD Display is from Shenzhen,China.

Q4:What certifications does the Monochrome LCD Display have?
A4:The Monochrome LCD Display has CE / RoHS / FCC certifications.

Q5:What is the minimum order quantity for the Monochrome LCD Display?
A5:The minimum order quantity is 1 Pcs.
